CD3811 A (RAH) - Honda 38" Mower Deck, Made in Japan (SN: RAH-0000001 - RAH-9999999) CUTTER PULLEY (CD3811) Parts Diagram

38" Mower Deck, Made in Japan

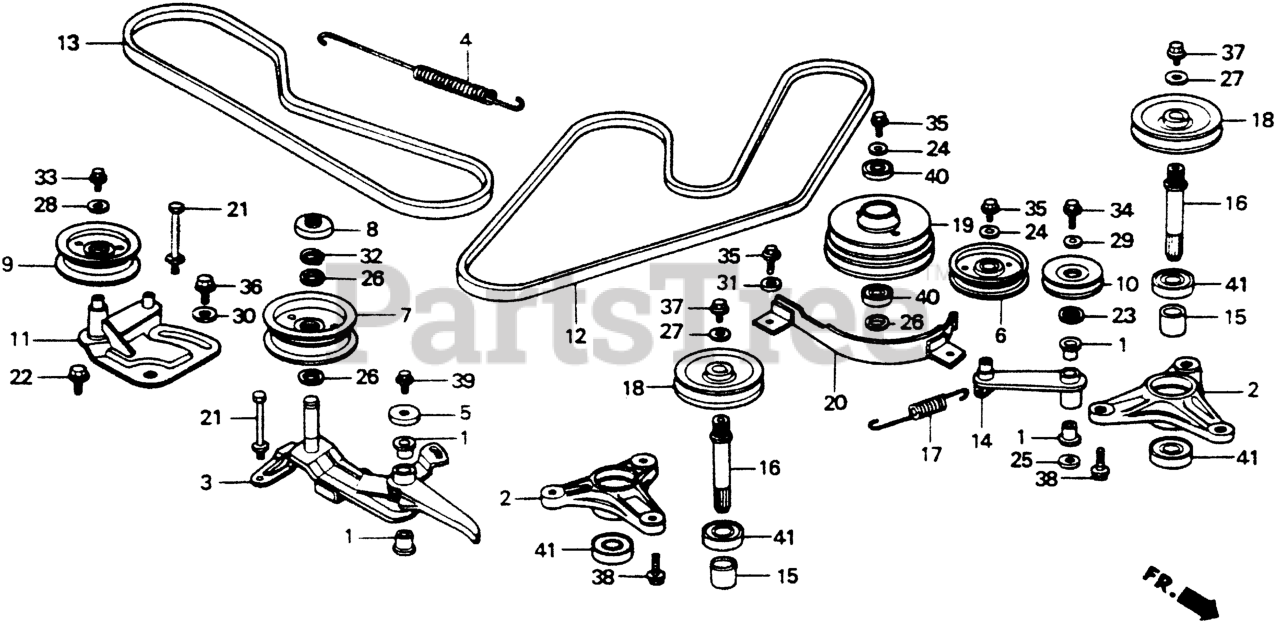

CUTTER PULLEY (CD3811) Parts Diagram

  • Title

1

Honda 24132-750-000

BUSH (15X19X22)

Note: (Optional)

$11.99

$

Usually ships in 3-6 days

0

2

Honda 72711-750-A00

HOUSING, BEARING (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

3

Honda 76120-751-700

ARM, TENSION (DECK)

Note: (Optional)

$

$

Not available

4

Honda 76122-751-000

SPRING, TENSIONER ARM

Note: (Optional)

$28.99

$

Usually ships in 3-6 days

0

5

Honda 76127-751-000

CAP, TENSION ARM

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

6

Honda 76130-750-000

ROLLER, TENSIONER

Note: (Optional)

$

$

Not available

7

Honda 76130-751-000

ROLLER, TENSIONER

Note: (Optional)

$

$

Not available

8

Honda 76135-751-000

DUST COVER, TENSION PULLEY (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

9

Honda 76160-751-000

PULLEY, TENSIONER

Note: (Optional)

$61.99

$

In Stock, only 2 left!

0

10

Honda 76170-751-700

PULLEY, IDLER

Note: (Optional)

$

$

Not available

11

Honda 76180-751-700

ARM, BELT ADJUSTING

Note: (Optional)

$47.99

$

Usually ships in 3-6 days

0

12

Honda 76181-751-701

SEE PART DETAILS - PRI; V-BELT, BLADE (SB-65)

Note: (Optional)

$

$

Not available

13

Honda 76184-751-701

SEE PART DETAILS - SUP; V-BELT, DECK (SB-61)
(Superseded to 76182-758-M01)

Note: (Optional)

$

$

Not available

14

Honda 76210-751-700

ARM, TENSION (BLADE) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

15

Honda 76213-751-700

COLLAR, BLADE SHAFT

Note: (Optional)

$11.99

$

In Stock, only 2 left!

0

16

Honda 76214-751-700

SHAFT, BLADE (112.5MM)

Note: (Optional)

$85.99

$

Usually ships in 3-6 days

0

17

Honda 76215-751-700

SPRING, TENSIONER ARM (BLADE)

Note: (Optional)

$

$

Not available

18

Honda 76220-751-700

PULLEY, BLADE (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

19

Honda 76230-751-700

PULLEY, DRIVEN (NOT AVAILABLE)

Note: (Optional)

$

$

Currently unavailable

20

Honda 76251-751-700

STOPPER, BELT

Note: (Optional)

$

$

Currently unavailable

21

Honda 90109-751-000

BOLT, BELT STOPPER

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

22

Honda 90110-751-000

BOLT, ADJUSTING ARM

Note: (Optional)

$5.49

$

Usually ships in 3-6 days

0

23

Honda 90405-751-700

WASHER (12.5MM)

Note: (Optional)

$

$

Currently unavailable

24

Honda 90430-657-000

WASHER (8MM) (Honda Code 0612077).

Note: (Optional)

$9.49

$

In Stock, only 1 left!

0

25

Honda 90474-703-000

WASHER (12MM) (NOT AVAILABLE)

Note: (Optional)

$

$

Currently unavailable

26

Honda 90503-751-000

WASHER (17.3X25)

Note: (Optional)

$3.99

$

Usually ships in 3-6 days

0

27

Honda 90521-427-770

WASHER (10.3MM)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

28

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

Note: (Optional)

$1.49

$

In Stock, Qty 20+

0

29

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

Note: (Optional)

$1.49

$

In Stock, Qty 10

0

30

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: (Optional)

$0.99

$

In Stock, Qty 20+

0

31

Honda 94103-08800

WASHER, PLAIN (8MM)

Note: (Optional)

$1.49

$

In Stock, Qty 10

0

32

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

Note: (Optional)

$1.49

$

In Stock, Qty 7

0

33

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

34

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use from Engine SN 2086984.

Note: (Optional)

$2.49

$

In Stock, only 1 left!

0

35

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

36

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

37

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

38

Honda 95701-10028-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X28)

Note: (Optional)

$2.99

$

Usually ships in 3-6 days

0

39

Honda 96001-06012-07

BOLT, FLANGE (6X12) Use from Frame SN 1001725.

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

40

Honda 96150-62030-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203UU)

Note: (Optional)

$22.99

$

Usually ships in 3-6 days

0

41

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

Note: (Optional)

$27.99

$

In Stock, only 1 left!

0
