CD3009 A (RAF) - Honda 30" Mower Deck, Made in Japan (SN: RAF-0000001 - RAF-9999999) ROTARY BLADE (CD3009) Parts Diagram

30" Mower Deck, Made in Japan

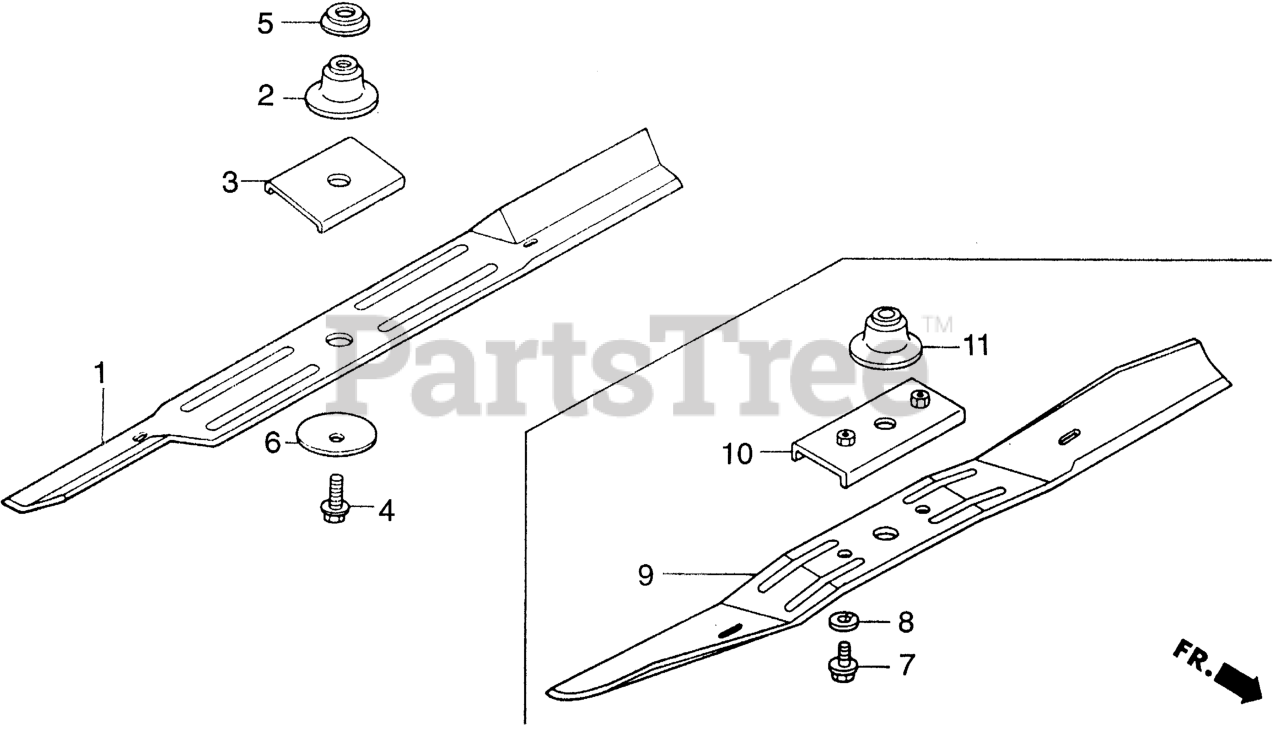

ROTARY BLADE (CD3009) Parts Diagram

  • Title

1

Honda 72513-751-A00

BLADE, ROTARY

Note: (Optional)

$67.99

$

Usually ships in 3-6 days

0

2

Honda 72620-751-701

SEE PART DETAILS - PRI; HOLDER, BLADE

Note: (Optional)

$58.99

$

Usually ships in 3-6 days

0

3

Honda 72625-751-700

HOLDER, BLADE (B)

Note: (Optional)

$24.99

$

Usually ships in 3-6 days

0

4

Honda 90105-751-701

SEE PART DETAILS - PRI; BOLT, BLADE HOLDER (10X28)

Note: (Optional)

$5.49

$

In Stock, only 3 left!

0

5

Honda 90409-751-700

SEE PART DETAILS - PRI; WASHER, BLADE HOLDER

Note: (Optional)

$10.99

$

Usually ships in 3-6 days

0

6

Honda 90510-751-701

SEE PART DETAILS - PRI; WASHER, BLADE

Note: (Optional)

$23.99

$

Usually ships in 3-6 days

0

7

Honda 90019-413-000

BOLT, FLANGE (12X25)

Note: (Optional)

$7.99

$

In Stock, only 3 left!

0

8

Honda 94111-12800

WASHER, SPRING (12MM)

Note: (Optional)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 72513-751-307

BLADE, ROTARY

Note: (Optional)

$112.99

$

In Stock, only 1 left!

0

10

Honda 72620-751-307

SEE PART DETAILS - SUP; HOLDER, BLADE

Note: (Optional)

$60.99

$

Usually ships in 3-6 days

0

11

Honda 72625-751-317

HOLDER, BLADE

Note: (Optional)

$

$

Not available
