CD3009 A (RAF) - Honda 30" Mower Deck, Made in Japan (SN: RAF-0000001 - RAF-9999999) CUTTER PULLEY (CD3009) Parts Diagram

30" Mower Deck, Made in Japan

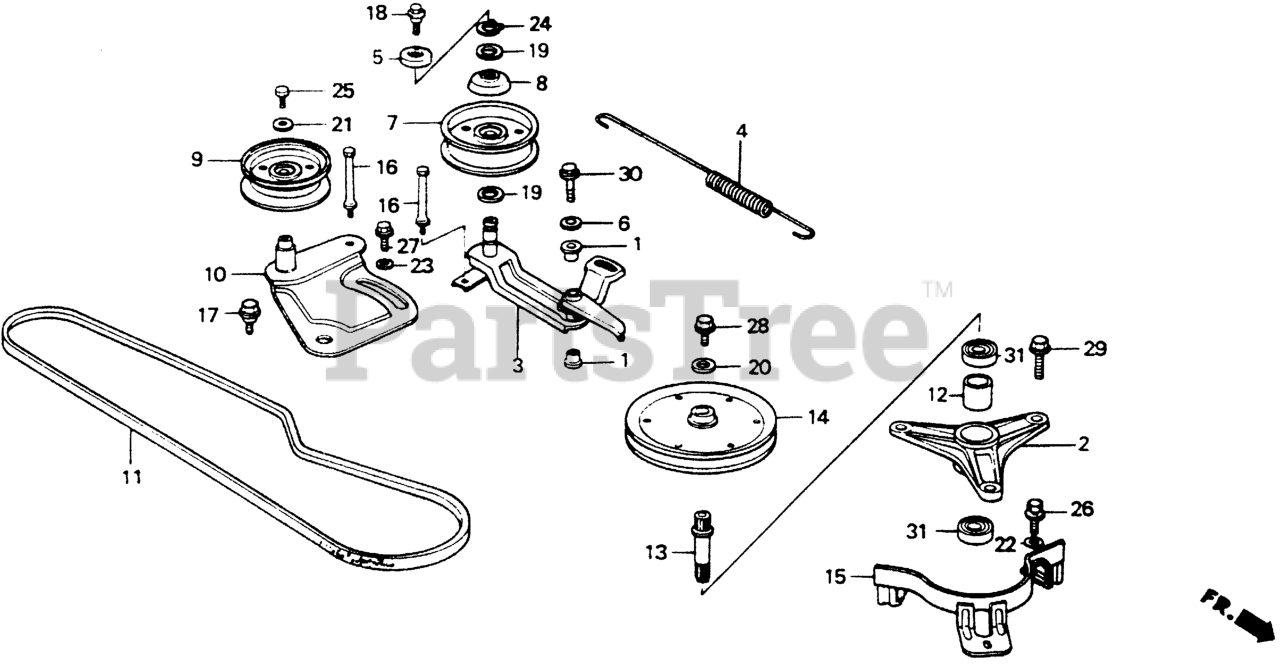

CUTTER PULLEY (CD3009) Parts Diagram

  • Title

1

Honda 24132-750-000

BUSH (15X19X22)

Note: (Optional)

$13.99

$

Usually ships in 3-6 days

0

2

Honda 72711-750-A00

HOUSING, BEARING (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

3

Honda 76120-751-020

SEE PART DETAILS - PRI; ARM, TENSION (DECK) (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

4

Honda 76122-751-000

SPRING, TENSIONER ARM

Note: (Optional)

$32.99

$

Usually ships in 3-6 days

0

5

Honda 76126-751-000

GRIP, TENSION ARM (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

6

Honda 76127-751-000

CAP, TENSION ARM

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

7

Honda 76130-751-000

ROLLER, TENSIONER

Note: (Optional)

$55.99

$

Usually ships in 3-6 days

0

8

Honda 76135-751-000

DUST COVER, TENSION PULLEY (NOT AVAILABLE)

Note: (Optional)

$

$

Not available

9

Honda 76160-751-000

PULLEY, TENSIONER

Note: (Optional)

$70.99

$

In Stock, only 1 left!

0

10

Honda 76180-751-000

ARM, BELT ADJUSTING

Note: (Optional)

$

$

Not available

11

Honda 76181-751-003

V-BELT, BLADE (SB-70)

Note: (Optional)

$76.99

$

Usually ships in 3-6 days

0

12

Honda 76213-751-700

COLLAR, BLADE SHAFT

Note: (Optional)

$13.99

$

In Stock, Qty 5

0

13

Honda 76214-751-317

SHAFT, BLADE

Note: (Optional)

$

$

Not available

13

Honda 76214-751-700

SHAFT, BLADE (112.5MM)

Note: (Optional)

$95.99

$

Usually ships in 3-6 days

0

14

Honda 76221-763-A00

PULLEY, CUTTER DECK (120MM)

Note: (Optional)

$113.99

$

Usually ships in 3-6 days

0

15

Honda 76251-751-A00

COVER, DECK PULLEY

Note: (Optional)

$

$

Currently unavailable

16

Honda 90109-751-000

BOLT, BELT STOPPER

Note: (Optional)

$6.49

$

Usually ships in 3-6 days

0

17

Honda 90110-751-000

BOLT, ADJUSTING ARM

Note: (Optional)

$5.99

$

Usually ships in 3-6 days

0

18

Honda 90111-KE1-000

BOLT, FLANGE (6MM)

Note: (Optional)

$

$

Not available

19

Honda 90503-751-000

WASHER (17.3X25)

Note: (Optional)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 90521-427-770

WASHER (10.3MM)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 94103-06000

WASHER, PLAIN (6MM) (Honda Code 0450122).

Note: (Optional)

$1.49

$

In Stock, Qty 9

0

22

Honda 94103-06700

WASHER, PLAIN (6MM) (Honda Code 0622324).

Note: (Optional)

$0.99

$

In Stock, Qty 5

0

23

Honda 94103-08000

WASHER, PLAIN (8MM)

Note: (Optional)

$0.99

$

In Stock, Qty 20+

0

24

Honda 94511-17000

CIRCLIP (OUTER) (17MM)

Note: (Optional)

$1.49

$

In Stock, Qty 7

0

25

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) Use up to Engine SN 1543277.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-06016-07

BOLT, FLANGE (6X16)

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

27

Honda 95701-08016-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) Use from Engine SN 1000016.

Note: (Optional)

$2.49

$

In Stock, Qty 20+

0

28

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

Note: (Optional)

$3.49

$

Usually ships in 3-6 days

0

29

Honda 95701-10030-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X30)

Note: (Optional)

$3.49

$

In Stock, Qty 18

0

30

Honda 96001-06012-07

BOLT, FLANGE (6X12) Use from Frame SN 1001725.

Note: (Optional)

$2.49

$

Usually ships in 3-6 days

0

31

Honda 96150-62040-10

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6204UU)

Note: (Optional)

$28.99

$

Usually ships in 3-6 days

0
