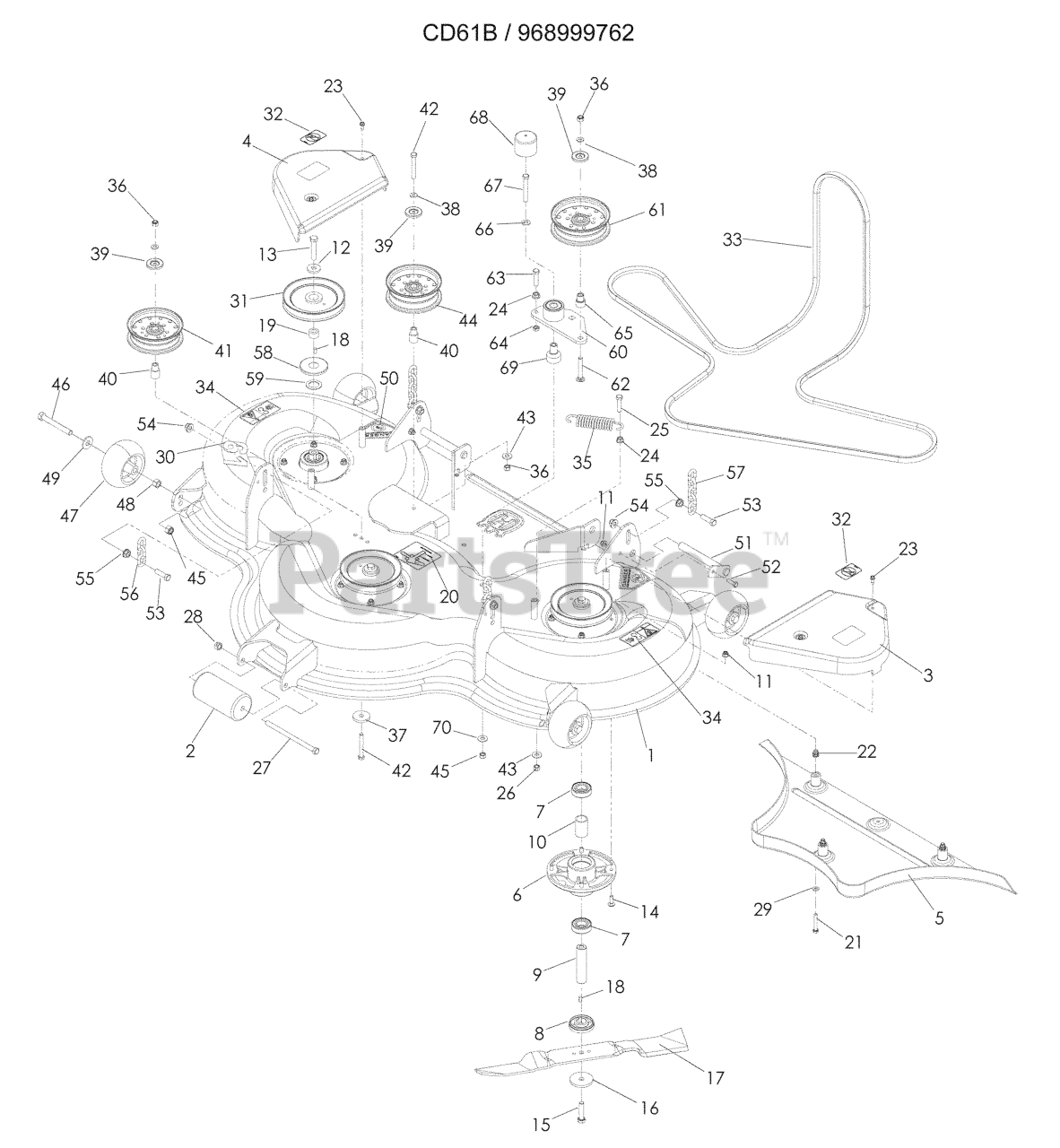

CD 61 B (968999762) - Husqvarna 61" Mower Deck Assembly (2009-03) Combi Deck CD61 Parts Diagram

61" Mower Deck Assembly

Combi Deck CD61 Parts Diagram

  • Title

1

Husqvarna 539133057

DECK w/ DECALS

$

$

Not available

2

Husqvarna 544185401

ROLLER
(Superseded to 539002472)

$

$

Not available

3

Husqvarna 539112508

BELT SHIELD, LEFT

$24.99

$

In Stock, only 1 left!

0

4

Husqvarna 539112509

BELT SHIELD, RIGHT

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 544166401

MULCH PLUG, 155

$

$

Not available

6

Husqvarna 535428901

BEARING HOUSING

$

$

Not available

7

Husqvarna 738220519

BEARING

$50.99

$

In Stock, only 2 left!

0

8

Husqvarna 539132778

BUSHING, BLADE

$37.99

$

Usually ships in 3-10 days

0

9

Husqvarna 535428702

AXEL

$56.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535428801

SPACER

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 539112899

NUT 5/16-18 NYLOC
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

12

Husqvarna 539115550

WASHER ½

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539132479

HCS M12 x 1.75 x 60, GR8.8

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990208

RHSNB 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132480

HCS M12 x 1.75 x 50, GR8.8

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 506792302

WASHER

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544175801

BLADE, C155

$

$

Not available

18

Husqvarna 506533501

KEY

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539112609

KEY RETAINER

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

21

Husqvarna 539132494

HCS M8 x 1.25 x 50, GR8.8

$

$

Not available

22

Husqvarna 506916203

BLIND RIVET NUT

$9.49

$

Usually ships in 3-10 days

0

23

Husqvarna 539990362

SCREW ¼-20 x 5/8 SLF TAP

$4.99

$

In Stock, Qty 12

0

24

Husqvarna 539990613

NUT 3/8-16 WHIZLK

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539990588

HCS 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

26

Husqvarna 539200282

NUT 3/8-16 JAM, NYLOC
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

27

Husqvarna 539132470

HCS 7/16-14 x 7

$4.99

$

In Stock, only 1 left!

0

28

Husqvarna 539990839

NUT 7/16-14 CTRLK, GR A

$3.99

$

In Stock, only 3 left!

0

29

Husqvarna 539990188

WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 11

0

30

Husqvarna 544245302

LABEL
(Superseded to 539002461)

$

$

Not available

31

Husqvarna 539112507

PULLEY, 61

$

$

Not available

32

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

33

Husqvarna 539112531

BELT, DECK

$169.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105744

DECAL, BELT DRIVE

$6.99

$

In Stock, only 2 left!

0

35

Husqvarna 539103256

SPRING

$12.99

$

In Stock, Qty 5

0

36

Husqvarna 539976979

NUT 3/8 -16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

37

Husqvarna 539106504

HEAVY WASHER

$

$

Not available

38

Husqvarna 522023401

WASHER 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 510254501

SHIELD, DUST

$

$

Not available

40

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

41

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

42

Husqvarna 539102612

HCS 3/8-16 x 2¾

$5.99

$

In Stock, only 3 left!

0

43

Husqvarna 539990517

WASHER 3/8

$3.99

$

Usually ships in 3-10 days

0

44

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

In Stock, only 1 left!

0

45

Husqvarna 539101331

NUT ½ NYLOC
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

46

Husqvarna 539108365

HCS ½-13 x 4

$

$

Not available

47

Husqvarna 539107610

WHEEL, GAUGE
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

48

Husqvarna 539990258

NUT ½-13

$4.99

$

In Stock, Qty 14

0

49

Husqvarna 539109554

WASHER ½

$

$

Not available

50

Husqvarna 539913010

DECAL, CPSC

$4.99

$

In Stock, only 1 left!

0

51

Husqvarna 539132498

PIN, STRUT

$133.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539990209

HCS 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539101175

HCS 7/16-14 x 1½

$3.99

$

Usually ships in 3-10 days

0

54

Husqvarna 539132019

NUT 7/16-14 WHIZ LK
(Superseded to 873900700)

$7.49

$

In Stock, Qty 12

0

55

Husqvarna 539102582

NUT 7/16-14 WHIZ LK

$

$

Not available

56

Husqvarna 539109693

LIFT CHAIN, 3 LINK

$6.49

$

Usually ships in 3-10 days

0

57

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539108449

DUST CAP, BOTTOM

$4.99

$

In Stock, Qty 15

0

59

Husqvarna 539127099

WASHER 1.06

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 539130391

ARM w/ BEARINGS, IDLER

$

$

Not available

61

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 4 left!

0

62

Husqvarna 539128101

BOLT, 3/8-16 x 2½

$

$

Not available

63

Husqvarna 539107042

HCS 3/8-16 x 1½ GR8

$3.99

$

In Stock, Qty 6

0

64

Husqvarna 539109332

NUT 3/8-16 JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

65

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

66

Husqvarna 539115528

WASHER ½ BELLEVILLE

$3.99

$

Usually ships in 3-10 days

0

67

Husqvarna 539101572

HCS ½-13 x 3

$5.99

$

In Stock, Qty 9

0

68

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

69

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

70

Husqvarna 539102243

SUPPORT WASHER

$

$

Not available
