CCW 36 (5900988) - Ferris Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Side-Discharge Hydraulic Group Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Side-Discharge

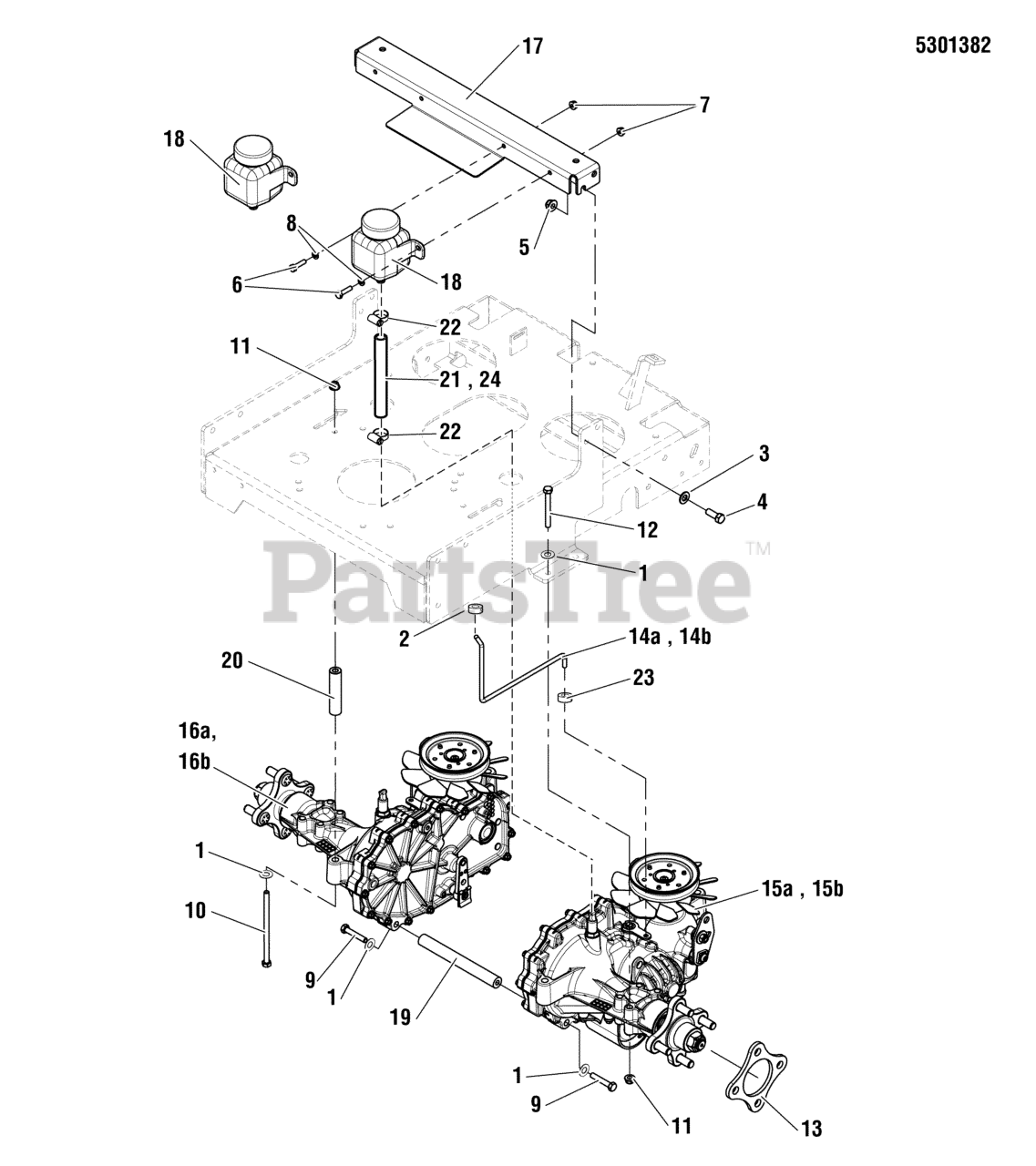

Hydraulic Group Parts Diagram

  • Title

1

Ferris 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, Qty 17

0

2

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

In Stock, only 1 left!

0

3

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

4

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

5

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

6

Ferris 5025010X6

BOLT, 1/4-20 X 3/4", GD5
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

7

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

8

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

9

Ferris 5025011X18

BOLT, 5/16-18 X 2-1/4 GD5 YZ
(Superseded to 5025011X18SM)

$3.99

$

In Stock, only 1 left!

0

10

Ferris 5025011X44

BOLT, 5/16-18 X 5-1/2, GD 5, YZ

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

12

Ferris 5025011X22

BOLT, 5/16-18 X 2-3/4, GD 5, YZ
(Superseded to 5025011X22YP)

$3.49

$

Usually ships in 2-12 days

0

13

Ferris 5403335A

NLA - PLATE,WHEEL SPACER-4-BOLT,1/4-BLK
(Superseded to 5403335AAFS)

$13.99

$

In Stock, only 2 left!

0

14a

Ferris 5101276

ROD, HYDRO RELEASE, SNP PRO WB

Note: (S/N: 2014601995 & Below)

$4.49

$

Usually ships in 2-12 days

0

14b

Ferris 5102883

ROD, HYDRO RELEASE, SW20

Note: (S/N: 2014601996 & Above)

$12.99

$

Usually ships in 2-12 days

0

15a

Ferris 5101188

TRANSMISSION, LH, HG ZH-GMBB-3A5A-1LLX

Note: (S/N: 2014601995 & Below)

$1950.99

$

Usually ships in 2-12 days

0

15b

Ferris 5102809

TRANSMISSION, LH, ZJ-GMFE-3B5B-1RLX

Note: (S/N: 2014601996 & Above)

$2170.99

$

Usually ships in 2-12 days

0

16a

Ferris 5101189

TRANSMISSION, RH, HG ZH-KMBB-3A5A-1LLX

Note: (S/N: 2014601995 & Below)

$1950.99

$

Usually ships in 2-12 days

0

16b

Ferris 5102810

TRANSMISSION, RH, ZJ-KMFE-3C5C-1RLX

Note: (S/N: 2014601996 & Above)

$2168.99

$

Usually ships in 2-12 days

0

17

Ferris 5403228B

PLATE, HYD TANK MOUNT - RED

Note: (FH Series Models)

$43.99

$

Usually ships in 2-12 days

0

18

Ferris 5100473

RESERVOIR, HYDRO OIL, 350 ML
(Superseded to 5100473SM)

$40.99

$

Usually ships in 2-12 days

0

19

Ferris 5101176

SPACER, HYDRO LINK, SNP PRO WB

$18.99

$

Usually ships in 2-12 days

0

20

Ferris 5101177

SPACER, .34 X .75 X 3.27, YZ

$17.99

$

Usually ships in 2-12 days

0

21

Ferris 5050857X4P25

HOSE, 1/2" X 4.25 PUSH-ON

Note: (FH Series Models)

$7.99

$

Usually ships in 2-12 days

0

22

Ferris 5025474

CLAMP, HOSE, .75 FREE DIA.
(Superseded to 5025474SM)

$3.49

$

Usually ships in 2-12 days

0

23

Ferris 5022481

COLLAR, 1/4" SET
(Superseded to 5022481SM)

$6.99

$

Usually ships in 2-12 days

0

24

Ferris 5050857X6

HOSE, 1/2" X 6" PUSH-ON

Note: (FS Series Models)

$5.99

$

Usually ships in 2-12 days

0
