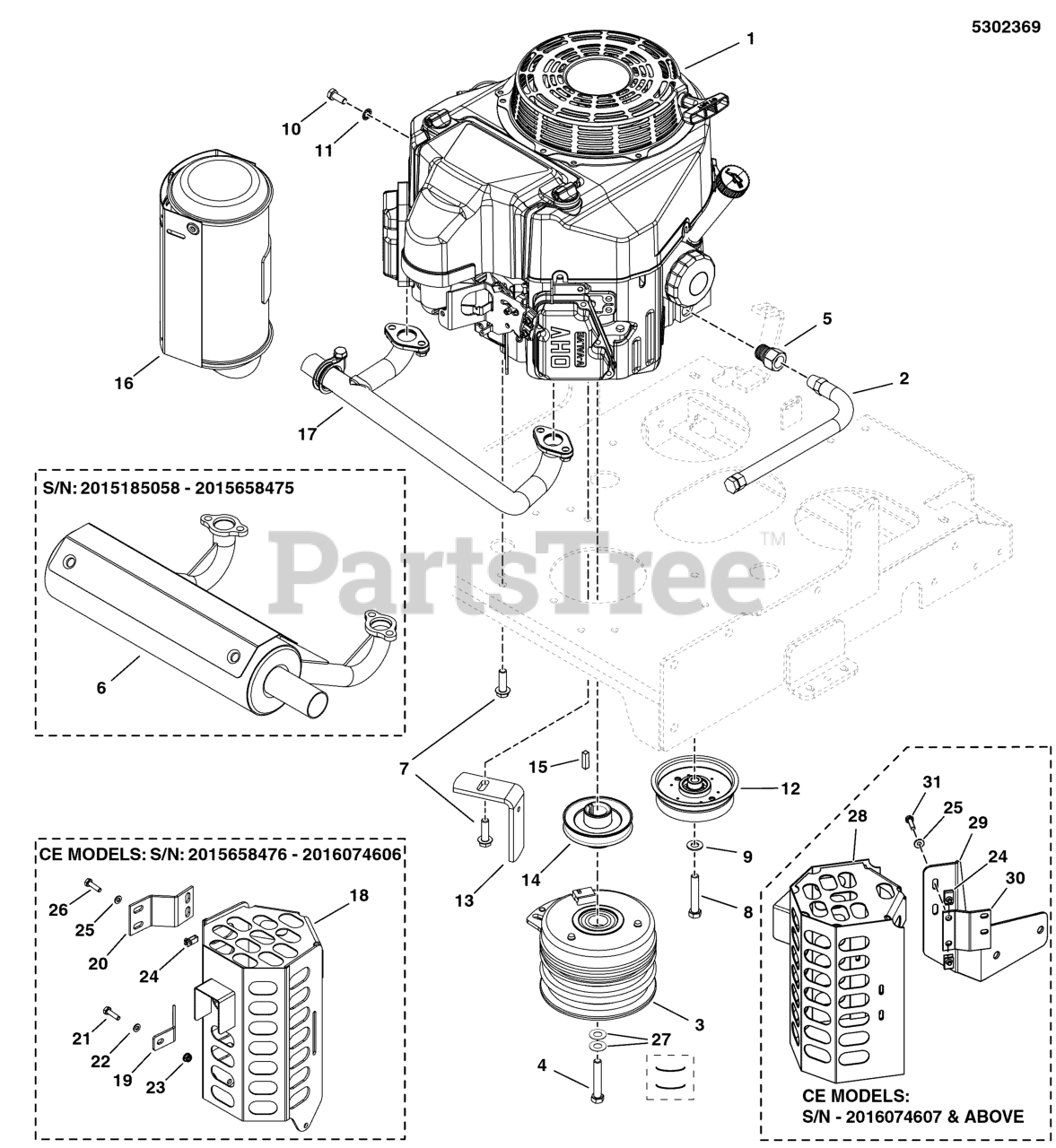

CCW 36 (5900988) - Ferris Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Side-Discharge Engine & PTO - S/N: 2014185058 & Above Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Side-Discharge

Engine & PTO - S/N: 2014185058 & Above Parts Diagram

  • Title

1

ENGINE, KAWASAKI - FS541V

$

$

Not available

1

ENGINE, KAWASAKI - FS481V

$

$

Not available

2

Ferris 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

Usually ships in 2-12 days

0

3

Ferris 5102217

CLUTCH, WARNER, 125 ft lbs - 1"

$373.99

$

Usually ships in 2-12 days

0

4

Ferris 5102866

BOLT, CRANKSHAFT, 7/16-20 X 3, GD8
(Superseded to 5102866YP)

$5.49

$

In Stock, only 1 left!

0

5

Ferris 5022234

ADAPTER-OIL DRAIN
(Superseded to 5022234SM)

$15.99

$

Usually ships in 2-12 days

0

6

Ferris 5102765

MUFFLER, KAWASAKI, HORIZONTAL

$275.99

$

Usually ships in 2-12 days

0

7

Ferris 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

$3.49

$

In Stock, only 4 left!

0

8

Ferris 5025058X16

BOLT, 3/8-16 X 2 GD5 TFL
(Superseded to 5025058X16SM)

$2.99

$

Usually ships in 2-12 days

0

9

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

10

Ferris 5025249

BOLT, M8-1.25 X 20MM GD8.8
(Superseded to 5025249YP)

$2.99

$

Usually ships in 2-12 days

0

11

Ferris 5025188

WASHER, 5/16 INT. TOOTH LOCK
(Superseded to 5025188SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5102496

PULLEY, IDLER, SINGLE FLANGE, 4" OD

$57.99

$

Usually ships in 2-12 days

0

13

Ferris 5406655B

ANCHOR, CLUTCH, SINGLE HOLE - RED

$12.99

$

Usually ships in 2-12 days

0

14

Ferris 5101311

PULLEY, CRANKSHAFT, 1.0005 ID X 4.25 OD

$36.99

$

Usually ships in 2-12 days

0

15

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

16

* MUFFLER

$

$

Not available

17

* MANIFOLD

$

$

Not available

18

Ferris 5406265B

WELD, MUFFLER GUARD, CCW - RED

$148.99

$

Usually ships in 2-12 days

0

19

Ferris 5404434B

BRACKET, MUFFLER GUARD - RED

$8.49

$

Usually ships in 2-12 days

0

20

Ferris 5406582B

BRACKET, GUARD MOUNT - RED

$

$

Currently unavailable

21

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

24

Ferris 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

25

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

26

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

27

Ferris 5025585

BELLEVILLE WASHER 1.1875 X .442 X .089
(Superseded to 5025585YP)

Note: (S/N: 2015745414 & Above)

$4.49

$

In Stock, only 4 left!

0

28

Ferris 5407955B

WELD, MUFFLER GUARD

$165.99

$

Usually ships in 2-12 days

0

29

Ferris 5410142B

GUARD, MOUNT

$

$

Currently unavailable

30

Ferris 5407988B

GUARD, MOUNT

$23.99

$

Usually ships in 2-12 days

0

31

Ferris 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

In Stock, only 2 left!

0
