CCW 36 (5900987) - Ferris Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Rear-Discharge Transaxle Drive Group Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 16hp Kawasaki, Rear-Discharge

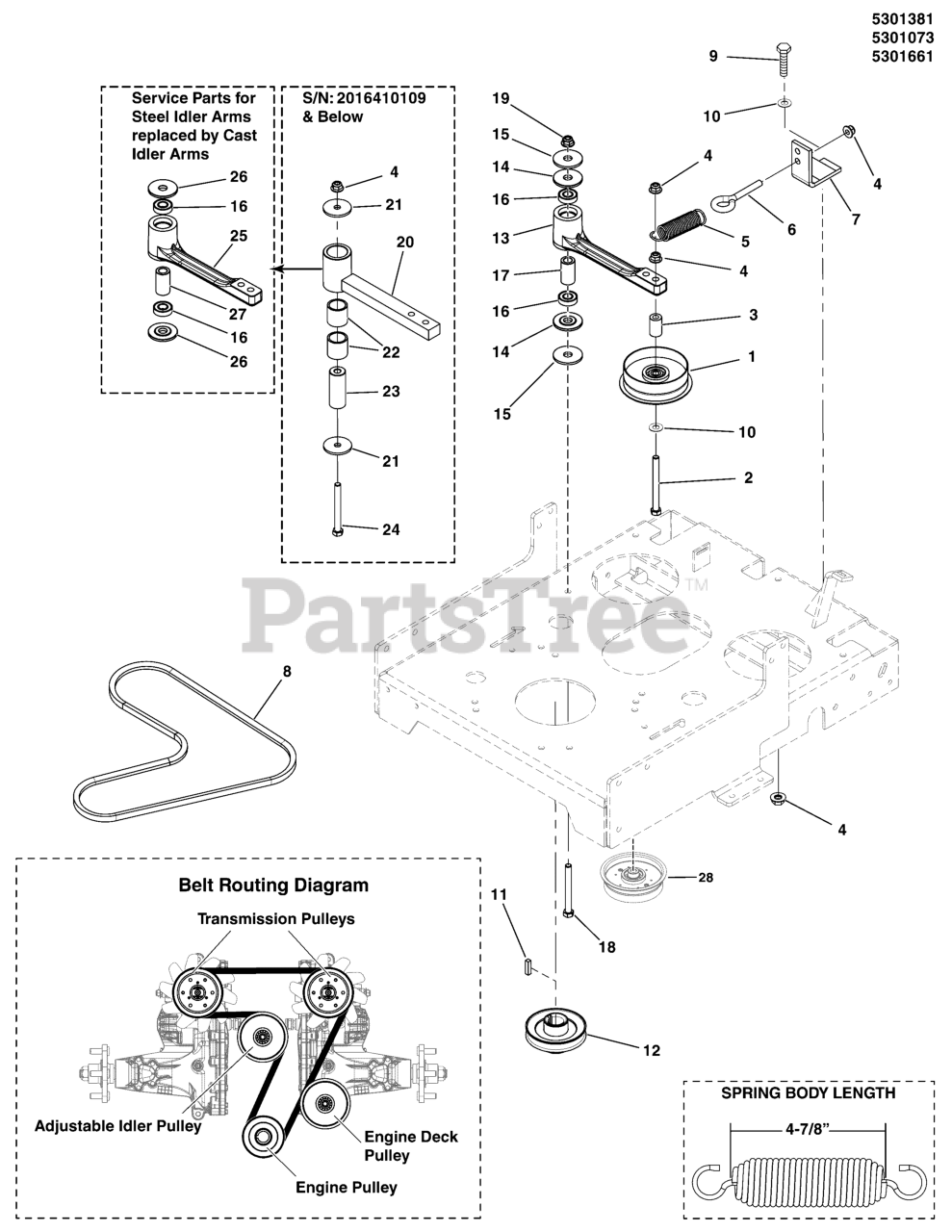

Transaxle Drive Group Parts Diagram

  • Title

1

Ferris 5103808

PULLEY, SINGLE FLANGED, 4"ODX3/8"ID

$

$

Currently unavailable

2

Ferris 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

3

Ferris 5101245

SPACER, .38 X .75 X 1.25, CZ
(Superseded to 5101245YP)

$7.99

$

Usually ships in 2-12 days

0

4

Ferris 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

5

Ferris 5100633

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

6

Ferris 5023497

EYE BOLT, 3/8-16 X 5, 2.88THRD, 1EYE, CZ
(Superseded to 5023497SM)

$9.49

$

In Stock, only 1 left!

0

7

Ferris 5408037B

BRACKET, EYEBOLT - RED

$12.99

$

Usually ships in 2-12 days

0

8

Ferris 5021770

BELT, A-SEC, 61.38EL, ARAMID, WRPD

$45.99

$

Usually ships in 2-12 days

0

9

Ferris 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, Qty 6

0

10

Ferris 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

11

Ferris 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

In Stock, only 1 left!

0

12

Ferris 5101311

PULLEY, CRANKSHAFT, 1.0005 ID X 4.25 OD

$36.99

$

Usually ships in 2-12 days

0

13

Ferris 5411066

ASSM, IDLER ARM, PUMP DRIVE, 1/2IC, CAST

Note: (SV)(S/N: 2016410110 & Above)(5101178A)

$130.99

$

Usually ships in 2-12 days

0

14

Ferris 5103262

SPACER, IDLER ARM, 1/2, PM
(Superseded to 5103262YP)

$7.99

$

In Stock, Qty 15

0

15

Ferris 5103282

WASHER, .52 X 1.75 X .14, CZ
(Superseded to 5103282YP)

$3.99

$

In Stock, only 1 left!

0

16

Ferris 7078243

BEARING, BALL, AXLE
(Superseded to 7078243YP)

$10.99

$

In Stock, Qty 18

0

17

Ferris 5103812

SPACER, .52 X .84 X 1.53, PM
(Superseded to 5103812YP)

$7.99

$

In Stock, Qty 7

0

18

Ferris 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 3 left!

0

19

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

20

NO LONGER AVAILABLE, USE ITEM # 25

$

$

Not available

21

Ferris 5025305

WASHER, .41 X 1.75 X .14
(Superseded to 5025305SM)

$3.99

$

In Stock, only 2 left!

0

22

Ferris 5022157

BUSHING, BRASS, 1.25X1X1.25
(Superseded to 5022157SM)

$12.99

$

In Stock, only 2 left!

0

23

Ferris 5102004

SPACER, .39 X 1.00 X 2.55, SS
(Superseded to 5102004YP)

$27.99

$

In Stock, only 1 left!

0

24

Ferris 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, Qty 20+

0

25

Ferris 5406895

ASSM, IDLER ARM, PUMP DRIVE, 3/8ID, CAST

Note: (SV)(Includes items #16, 26, & 27)(5101178A)

$171.99

$

Usually ships in 2-12 days

0

26

Ferris 5102579

SPACER, IDLER ARM, T-STYLE, CZ
(Superseded to 5102579YP)

$20.99

$

Usually ships in 2-12 days

0

27

Ferris 5102580

SPACER, .39 X .88 X 1.53, CZ
(Superseded to 5102580YP)

$11.99

$

Usually ships in 2-12 days

0

28

SEE ENGINE & PTO GROUP

$

$

Not available
