CCW 36 (5900749) - Ferris Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki, Rear-Discharge Front Frame Group Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki, Rear-Discharge

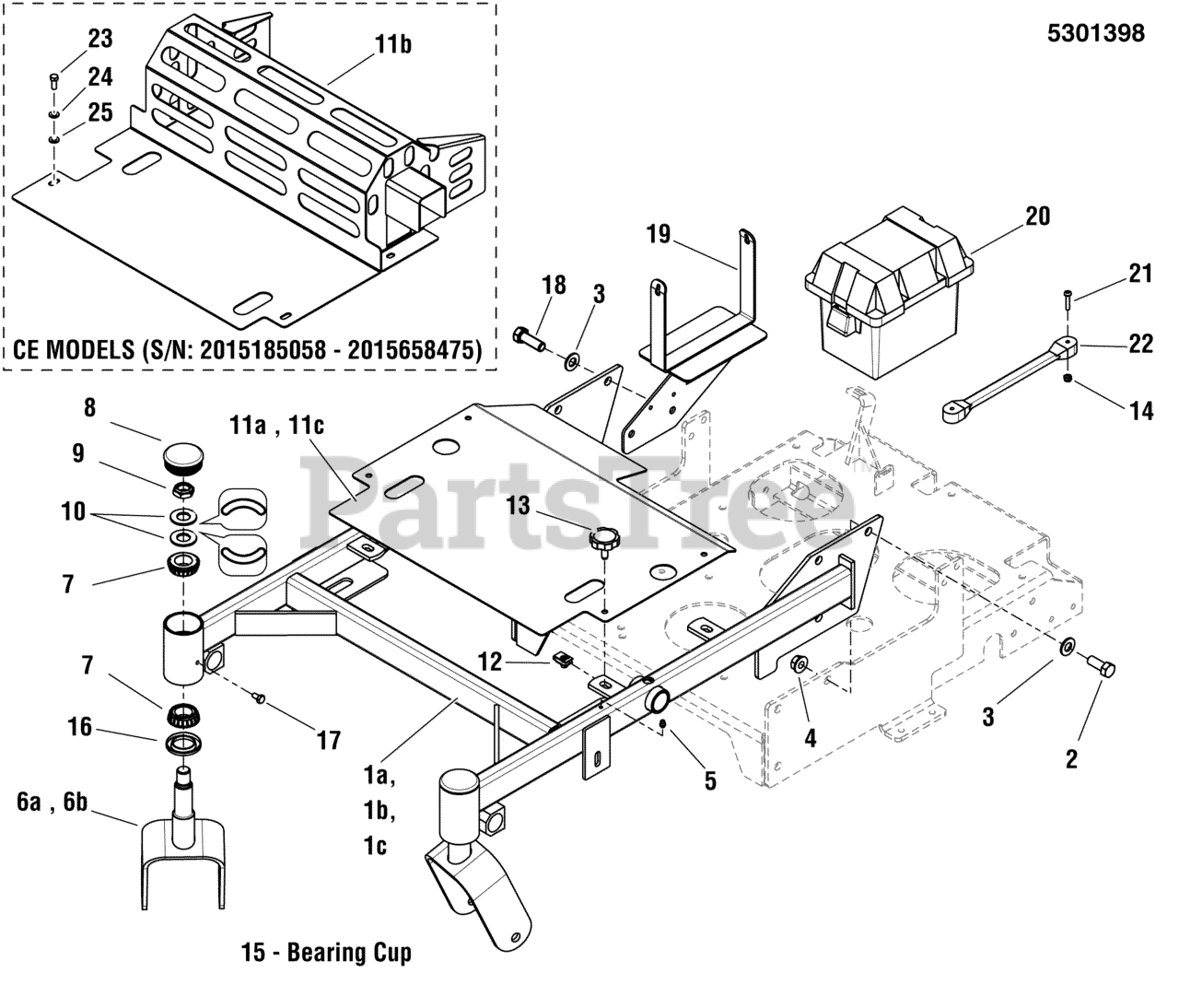

Front Frame Group Parts Diagram

  • Title

1a

Ferris 5403093B

WELD, FRONT FRAME, FER DD 36 - RED

Note: (Domestic Models)

$712.99

$

Usually ships in 2-12 days

0

1b

Ferris 5403289B

WELD,FRONT FRAME, 36 SNP PRO WB - RED

Note: (CE Models - S/N: 2016047606 & Below)

$883.99

$

Usually ships in 2-12 days

0

1c

Ferris 5406487B

WELD, FRONT FRAME, SW30-36 - RED

Note: (CE Models - S/N: 2016074607 & Above)

$

$

Currently unavailable

2

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

3

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 8

0

4

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

5

Ferris 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

In Stock, only 3 left!

0

6a

Ferris 5407308B

WELD, CASTER YOKE, SNP DD - RED
(Superseded to 5407308BFS)

Note: (All Domestic / CE Models S/N: 2016047606 & Below)

$121.99

$

Usually ships in 2-12 days

0

6b

Ferris 5401759B

WELD, FRONT CASTER YOKES - RED
(Superseded to 5401759BFS)

Note: (CE Models - S/N: 2016074607 & Above)

$201.99

$

Usually ships in 2-12 days

0

7

Ferris 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, Qty 20+

0

8

Ferris 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, Qty 20+

0

9

Ferris 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

In Stock, Qty 20+

0

10

Ferris 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

11a

Ferris 5403338B

PLATE, DECK GUARD

Note: (CE Models S/N: 2014185057 & Below; 2016074607 & Above)

$136.99

$

Usually ships in 2-12 days

0

11b

Ferris 5407944B

WELD, DECK GUARD

Note: (CE Models S/N: 2014185058 - 2015658475)

$222.99

$

Usually ships in 2-12 days

0

11c

Ferris 5403992B

PLATE, DECK GUARD

Note: (All Domestic / CE Models S/N: 2015658476 - 2016074606)

$112.99

$

Usually ships in 2-12 days

0

12

Ferris 5025452

BODY CLIP, 5/16-18 -1/4 MATERIAL
(Superseded to 5025452YP)

$5.49

$

Usually ships in 2-12 days

0

13

Ferris 5101731

KNOB, 5/16-18 X 1.00, ROSETTE BLACK
(Superseded to 5101731YP)

Note: (Domestic Models)

$10.99

$

In Stock, only 4 left!

0

14

Ferris 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

15

Ferris 5020883

CUP, BEARING (SV)

Note: (Not Shown)

$8.99

$

Usually ships in 2-12 days

0

16

Ferris 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

17

Ferris 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

In Stock, only 3 left!

0

18

Ferris 5025017X14

BOLT, 1/2-13 X 1-3/4 GD5 CZ
(Superseded to 5025017X14YP)

$3.49

$

In Stock, only 4 left!

0

19

Ferris 5403994B

WELD, BATTERY MOUNT - RED

Note: (15HP Models)

$96.99

$

Usually ships in 2-12 days

0

20

Ferris 5100688

BATTERY BOX, W/ DRAIN HOLE
(Superseded to 5100688YP)

$65.99

$

Usually ships in 2-12 days

0

21

Ferris 5025270

SCREW, #10-24 X 1 RS, CZ
(Superseded to 5025270SM)

$3.49

$

Usually ships in 2-12 days

0

22

Ferris 5021670

STRAP, RUBBER
(Superseded to 5021670SM)

$13.99

$

In Stock, only 1 left!

0

23

Ferris 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

24

Ferris 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

In Stock, only 2 left!

0

25

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable
