CCW 36 (5900540) - Ferris Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki Parking Brake Group Parts Diagram

Comfort Control DD 36" Walk-Behind Mower, 15hp Kawasaki

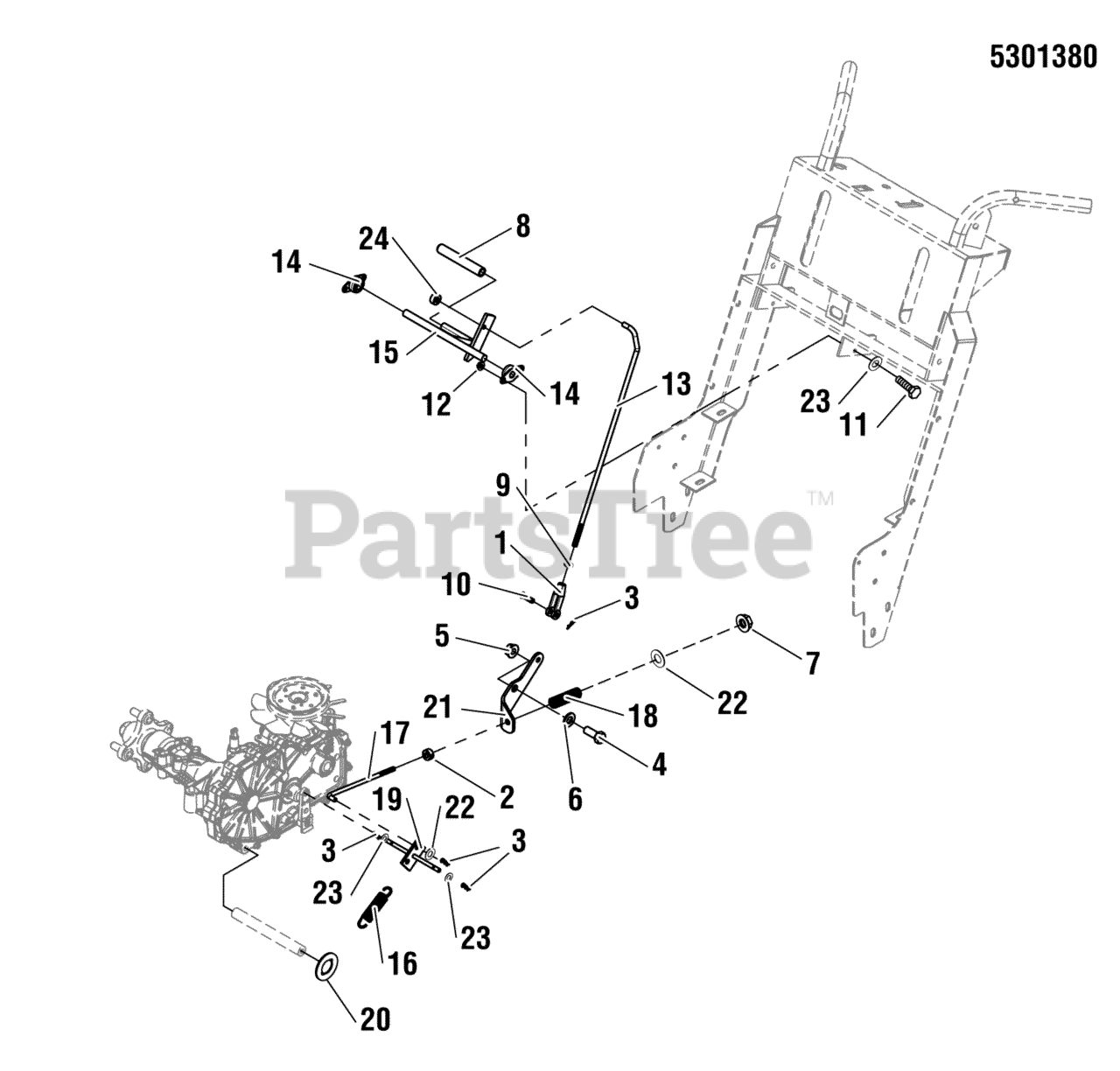

Parking Brake Group Parts Diagram

  • Title
1

Ferris 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

2

Ferris 5102997

COLLAR, DOUBLE SPLIT, 5/16 CZ
(Superseded to 5102997FS)

$17.99

$

Usually ships in 2-12 days

0

3

Ferris 5025211

PIN, HAIR, .0585 X 1-1/8, 1/4 EYE, YZ
(Superseded to 5025211SM)

$3.99

$

In Stock, only 1 left!

0

4

Ferris 5025017X12

BOLT, 1/2-13 X 1-1/2 GD5 CZ
(Superseded to 5025017X12YP)

$3.99

$

Usually ships in 2-12 days

0

5

Ferris 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 20+

0

6

Ferris 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 14

0

7

Ferris 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 11

0

8

Ferris 5021880

GRIP, FOAM
(Superseded to 5021880SM)

$5.99

$

Usually ships in 2-12 days

0

9

Ferris 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

10

Ferris 5025213X8

PIN, CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

Usually ships in 2-12 days

0

11

Ferris 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

12

Ferris 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

13

Ferris 5101116

ROD, PULLER ROD
(Superseded to 5101116SM)

$16.99

$

Usually ships in 2-12 days

0

14

Ferris 5101123

BEARING, 1/2" FLANGED
(Superseded to 5101123SM)

$5.99

$

Usually ships in 2-12 days

0

15

Ferris 5403361B

WELD BRAKE SHAFT - RED

$21.99

$

Usually ships in 2-12 days

0

16

Ferris 5101253

SPRING-EXT, .75 OD X 3.40 LG, X .115 WR

$15.99

$

Usually ships in 2-12 days

0

17

Ferris 5101246

ROD, LOWER BRAKE CONTROL

$5.49

$

Usually ships in 2-12 days

0

18

Ferris 5023242

SPRING, CONTROL ROD
(Superseded to 5023242SM)

$6.99

$

Usually ships in 2-12 days

0

19

Ferris 5403395B

WELD, BRAKE LINK CONNECTOR - RED

$19.99

$

Usually ships in 2-12 days

0

20

Ferris 5403960

WASHER, KEYED, 1-1/2 OD

$6.99

$

Usually ships in 2-12 days

0

21

Ferris 5403312B

LINK, BRAKE PIVOT

$12.99

$

Usually ships in 2-12 days

0

22

Ferris 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Ferris 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

24

Ferris 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

$7.49

$

Usually ships in 2-12 days

0
