CCBT (41AJBT-C912) - Cub Cadet Blower Attachment General Assembly Parts Diagram

Blower Attachment

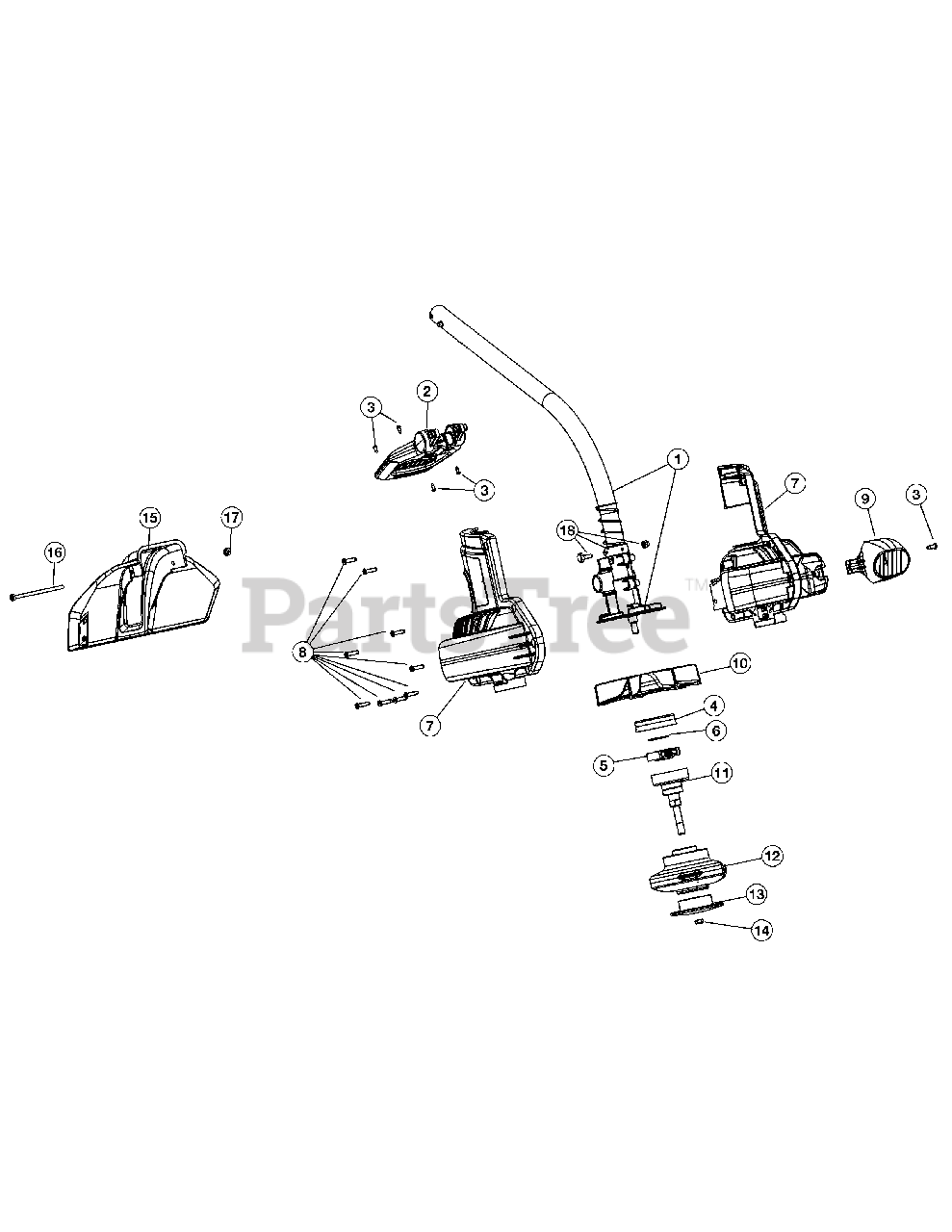

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05272

Lower Drive Shaft Housing Assembly (includes 18)

$108.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-05453

Shift Handle Assembly (includes 3)

$

$

Not available

3

Cub Cadet 753-1202

Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 753-05233

Clutch Drum Container

$

$

Not available

5

Cub Cadet 753-05257

Clutch Assembly

$51.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

7

Cub Cadet 753-05454

Housing Assembly (includes 8)

$

$

Not available

8

Cub Cadet 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

9

Cub Cadet 753-05455

Nozzle

$

$

Not available

10

Cub Cadet 753-05276

Impeller

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05277

Clutch Drum Assembly w/Spool Shaft

$

$

Not available

12

Cub Cadet 753-05456

Fixed Line Head (includes 13 & 14)

$

$

Not available

13

Cub Cadet 753-05428

Glide Cap
(Superseded to 731-05714)

$17.99

$

In Stock, Qty 8

0

14

Cub Cadet 753-05429

Locknut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 753-05282

Guard Assembly w/Blade (includes 16 & 17)

$

$

Not available

16

Cub Cadet 753-05283

Screw
(Superseded to 710-04563)

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 791-153597

Clamp

$

$

Not available

Cub Cadet 791-612605

Hanger
(Superseded to 731-08926)

Note: Optional, not shown

$2.99

$

In Stock, Qty 20+

0

Cub Cadet 753-05164

Replacement Line
(Superseded to 796-00027)

Note: Optional, not shown

$30.99

$

Usually ships in 3-6 days

0
