CC 997 ES (12AE997E710) - Cub Cadet Walk-Behind Mower (2006) General Assembly 2006 Parts Diagram

Walk-Behind Mower

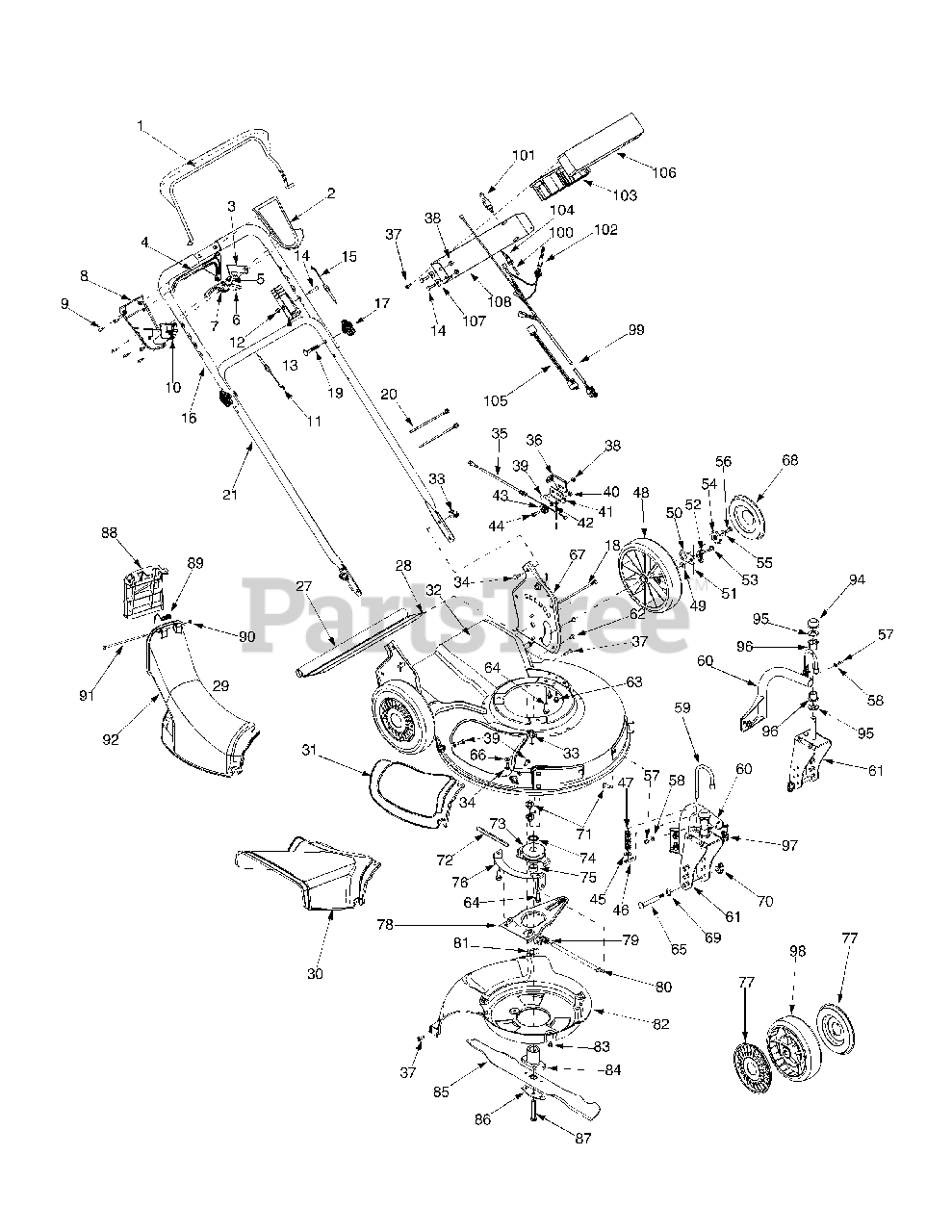

General Assembly 2006 Parts Diagram

  • Title

1

Cub Cadet 647-04008

Control Handle
(Superseded to 647-04008A)

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet 753-0717

Upper Control Handle

$

$

Not available

3

Cub Cadet 16864

6 Spd. Rack Cable Bracket

$11.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 731-0620A

Control Lever

$15.99

$

In Stock, only 1 left!

0

5

Cub Cadet 913-0397

Gear Insert

$5.49

$

In Stock, only 4 left!

0

6

Cub Cadet 732-0627

Shift Lever Spring
(Superseded to 732-0627A)

$9.49

$

In Stock, only 4 left!

0

7

Cub Cadet 731-0924

6 Speed Shift Lever

$

$

Not available

8

Cub Cadet 753-0717

Lower Control Housing

$

$

Not available

9

Cub Cadet 710-1667A

C Sunk Tap Screw #10 x.75 Lg

$4.49

$

In Stock, Qty 13

0

10

Cub Cadet 753-0717

Cable Mounting Cap

$

$

Not available

11

Cub Cadet 746-0711B

Drive Cable 51.0
(Superseded to 946-0711B)

$32.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-0324

Top Lock Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

13

Cub Cadet 746-0883

Control Housing

$16.99

$

In Stock, only 3 left!

0

14

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

15

Cub Cadet 746-04109

Control Cable 49"
(Superseded to 946-04109)

$36.99

$

In Stock, Qty 9

0

16

Cub Cadet 749-0439E-0637

Upper Handle

$47.99

$

In Stock, only 1 left!

0

17

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

18

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

20

Cub Cadet 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

27

Cub Cadet 731-1901A

Trail Shield

$40.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 6

0

29

Cub Cadet 931-0066

Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 731-1832

Side-Discharge Chute

$

$

Not available

31

Cub Cadet 931-1833A

Mulch Cover

$44.99

$

In Stock, only 2 left!

0

32

Cub Cadet 782-0078B-0716

Deck 21"

$

$

Not available

33

Cub Cadet 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 710-0703

Carriage Bolt 1/4-20 x.75

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 746-0939A

6 Speed Cable
(Superseded to 946-0939A)

$33.99

$

In Stock, only 3 left!

0

36

Cub Cadet 782-7574A-0637

Cable Adjustment Bracket

$

$

Not available

37

Cub Cadet 710-0969

Screw, #12-16 x 1.00

$4.49

$

In Stock, only 2 left!

0

38

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-0134

Carriage Screw 1/4-20 x.62

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 912-0138

Hex Nut 1/4-28
(Superseded to 712-0138)

$

$

Not available

41

Cub Cadet 782-7575A-0637

Cable Mounting Bracket
(Superseded to 782-7575B-0637)

$

$

Not available

42

Cub Cadet 936-0329

Lock Washer 1/4

$4.49

$

In Stock, Qty 9

0

43

Cub Cadet 756-0625

Roller Cable

$9.49

$

In Stock, Qty 14

0

44

Cub Cadet 738-0924A

Shoulder Screw.340 x.335 x C

$6.99

$

In Stock, Qty 5

0

45

Cub Cadet 936-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 2 left!

0

46

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

47

Cub Cadet 932-0306A

Compression Spring

$8.49

$

In Stock, only 2 left!

0

48

Cub Cadet 734-2010

Wheel 9 x 2.125
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

49

Cub Cadet 912-0414

Top Lock Tab Weld Nut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

51

Cub Cadet 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

52

Cub Cadet 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 948-0188B

Pawl LH

$

$

Not available

53

Cub Cadet 938-0137A

Shld Screw.340 ID x.285 OD
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

54

Cub Cadet 948-0318

Wheel Rachet

$10.99

$

In Stock, Qty 15

0

55

Cub Cadet 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

56

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

57

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

58

Cub Cadet 736-0931

Flat Washer.203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

59

Cub Cadet 747-0924

Wheel Pin Lock

$20.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 682-9020A-0716

Caster Assembly RH

$

$

Not available

60

Cub Cadet 682-9021A-0716

Caster Assembly LH
(Superseded to 682-9021A)

$101.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 682-9024-0716

Caster Bracket Assembly RH
(Superseded to 682-9024A-0716)

$81.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 682-9026-0716

Caster Bracket Assembly LH
(Superseded to 682-9026A-4021)

$85.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-1348

Screw, 1/4-14 x.500

$6.99

$

In Stock, only 3 left!

0

63

Cub Cadet 710-1652

Screw, 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

64

Cub Cadet 710-0654A

Hex Washer Screw 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

65

Cub Cadet 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

66

Cub Cadet 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

67

Cub Cadet 682-3052-0716

Handle Bracket Assembly - RH

$

$

Not available

67

Cub Cadet 682-3053-0716

Handle Bracket Assembly - LH

$

$

Not available

68

Cub Cadet 731-0982C

Hubcap - Radial Spoke

$11.99

$

In Stock, Qty 18

0

69

Cub Cadet 936-0232

Wave Washer,.531ID x.781OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

70

Cub Cadet 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

71

Cub Cadet 710-0260A

Carriage Bolt 5/16-18 x.62

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 954-0460

Belt 3/8 x 39.24

$19.99

$

In Stock, Qty 20+

0

73

Cub Cadet 956-0613A

Pulley Assembly

$72.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 950-1071

Sleeve Spacer.88 ID x 1.13 OD

$4.49

$

In Stock, only 3 left!

0

75

Cub Cadet 950-1070

Sleeve Spacer.88 ID x 1.00 OD

$5.99

$

In Stock, Qty 9

0

76

Cub Cadet 782-7597

Pivot Bracket

Variations

Cub Cadet 782-7597-0637

Pivot Bracket - POWDER BLACK (0637)

$9.49

$

In Stock, only 1 left!

0

$9.49

$

In Stock, only 1 left!

0

77

Cub Cadet 731-1888

Hubcap - Spoke w/ Hole

$10.99

$

In Stock, Qty 20+

0

78

Cub Cadet 782-7596A

Control Arm

Variations

Cub Cadet 782-7596A-0637

Control Arm, 6-Speed - POWDER BLACK (0637)

$

$

Not available

$

$

79

Cub Cadet 932-0807

Torsion Spring

$7.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 711-1114

Pivot Shaft

$12.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 936-0526

Wave Washer 1.38 ID x.88 OD

$6.99

$

In Stock, only 2 left!

0

82

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, only 1 left!

0

83

Cub Cadet 710-0653

Screw 1/4-20 x 3.75

$4.49

$

In Stock, Qty 7

0

84

Cub Cadet 748-0377C

Blade Adapter
(Superseded to 748-0377E)

$19.99

$

In Stock, only 1 left!

0

85

Cub Cadet 942-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

86

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

87

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

88

Cub Cadet 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 726-0111

Push Cap

$

$

Not available

91

Cub Cadet 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 931-0066

Discharge Chute

$115.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, Qty 5

0

95

Cub Cadet 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, Qty 20+

0

96

Cub Cadet 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

97

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

98

Cub Cadet 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 8

0

99

Cub Cadet 925-1442

Electric Starter Harness Assembly

$

$

Not available

100

Cub Cadet 925-0298

7.5 Amp Fuse

$

$

Not available

101

Cub Cadet 925-0873

Key Switch

$

$

Not available

102

Cub Cadet 925-1206

Plug

$

$

Not available

103

Cub Cadet 925-1276

12 Volt Battery

$185.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 925-1428

Fuse Holder

$

$

Not available

105

Cub Cadet 725-1538

Extension Harness

$

$

Not available

106

Cub Cadet 731-0891A

Upper Battery Tray

$

$

Not available

107

Cub Cadet 936-0451

Saddle Washer,.320 x.93 x.060
(Superseded to 736-0451)

$4.49

$

In Stock, Qty 18

0

108

Cub Cadet 782-9012-0637

Lower Battery Tray

$

$

Not available

Cub Cadet 925-0727

Battery Charger

Note: Not shown

$77.99

$

In Stock, only 1 left!

0
