CC 99 M (12A-99M7010) - Cub Cadet Walk-Behind Mower (2010) Drive Assembly CC99M Parts Diagram

Walk-Behind Mower

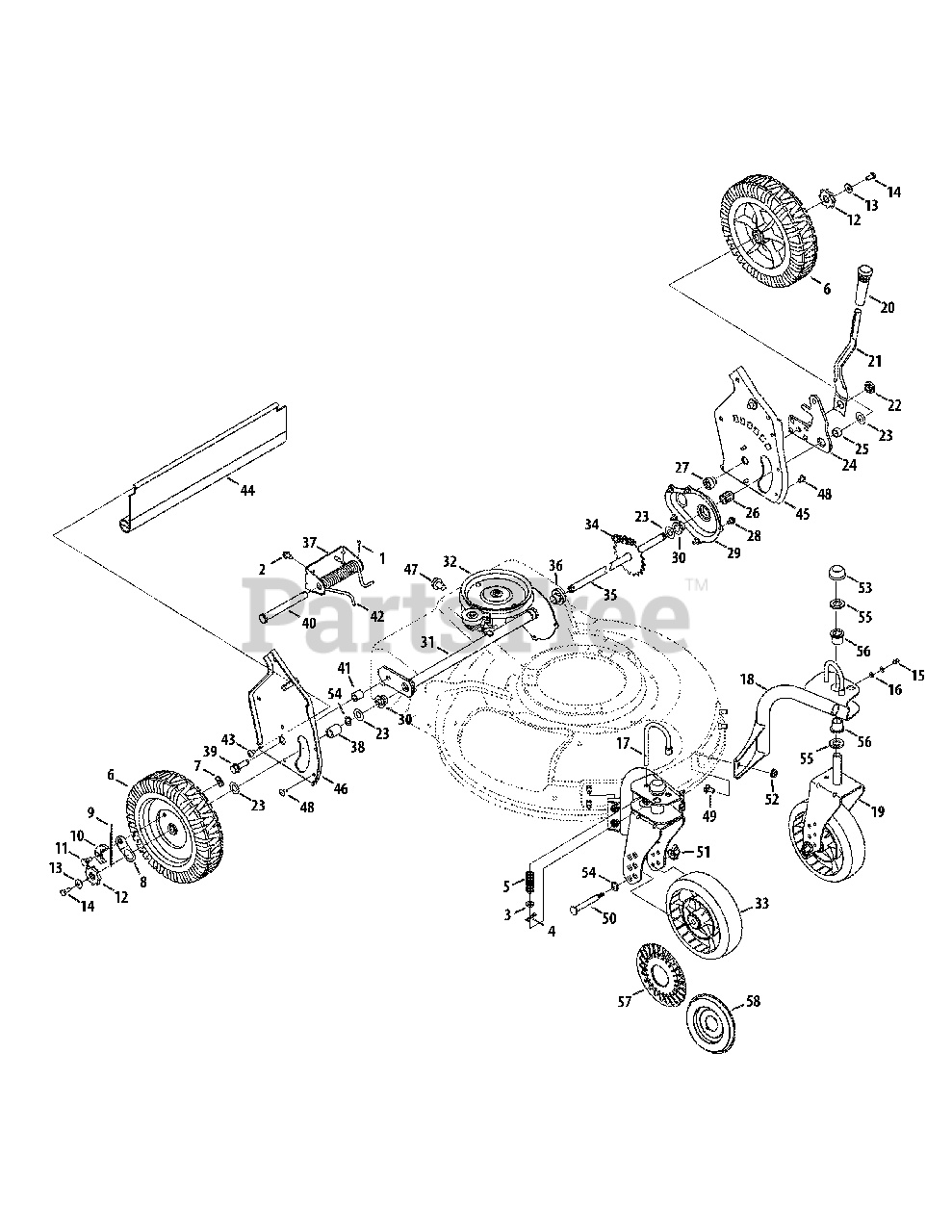

Drive Assembly CC99M Parts Diagram

  • Title

1

Cub Cadet 914-0474

Cotter Pin
(Superseded to 714-0474)

$

$

Not available

2

Cub Cadet 710-1652

Screw 1/4-14 x .825

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 936-0264

Flat Washer.330 ID x.630 OD

$6.99

$

In Stock, only 3 left!

0

4

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 932-0306A

Compression Spring

$8.49

$

In Stock, only 4 left!

0

6

Cub Cadet 734-2010A

Wheel, 9 x 2.125 Bar
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

7

Cub Cadet 912-0414

Top Lock Tab Weld Nut 1/4-20
(Superseded to 712-0414)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 7

0

9

Cub Cadet 10622BP

Plastic Spring Ratchet
(Superseded to 10622B)

$5.49

$

In Stock, Qty 20+

0

10

Cub Cadet 748-0381

Pawl RH

$11.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 948-0188B

Pawl LH

$

$

Not available

11

Cub Cadet 938-0137A

Shlder Screw.340 ID x.285 OD
(Superseded to 738-0137A)

$10.99

$

In Stock, Qty 10

0

12

Cub Cadet 948-0318

Wheel Ratchet

$10.99

$

In Stock, Qty 16

0

13

Cub Cadet 736-0270

Bell Washer.265 ID x.75 OD

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0751

Hex Cap Screw 1/4-20 x.620

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 937-3000

Grease Fitting

$4.99

$

In Stock, Qty 20+

0

16

Cub Cadet 736-0931

Flat Washer.203 ID x.403 OD

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 747-0924

Wheel Pin Lock

$20.99

$

In Stock, only 1 left!

0

18

Cub Cadet 682-9020A-4021

Caster Assembly RH

$

$

Not available

18

Cub Cadet 682-9021A-4021

Caster Assembly LH

$125.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 682-9024-4021

Caster Bracket Assembly RH
(Superseded to 682-9024A-4021)

$81.99

$

In Stock, only 1 left!

0

19

Cub Cadet 682-9026-4021

Caster Bracket Assembly LH
(Superseded to 682-9026A-4021)

$85.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

21

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

22

Cub Cadet 938-0529

Shoulder Nut.825 x .165 Lg.

$11.99

$

In Stock, only 2 left!

0

23

Cub Cadet 936-0369

Flat Washer .508 ID x 1.0 OD
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 782-0566B-0637

Pivot Arm Assembly

$44.99

$

In Stock, only 1 left!

0

25

Cub Cadet 750-0515

Spacer .510 ID x .70 OD

$4.49

$

In Stock, only 4 left!

0

26

Cub Cadet 741-0978

Slv Bearing .504 ID x .830 OD

$4.99

$

In Stock, only 3 left!

0

27

Cub Cadet 950-1056

Shlder Spacer, .385ID x .715Lg

$7.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 710-0653

Tap Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0

29

Cub Cadet 682-7528-0637

Chain Cover Assembly

$

$

Not available

30

Cub Cadet 741-0324A

Flge Bearing .506 ID x .590 Lg

$7.99

$

In Stock, Qty 5

0

31

Cub Cadet 682-7526-0637

Transmission Axle Assembly

$131.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 918-0263A

Transmission Ass’y Complete

$

$

Not available

33

Cub Cadet 734-1857

Wheel 7 x 2

$46.99

$

In Stock, Qty 8

0

34

Cub Cadet 913-0453

Chain

$12.99

$

In Stock, only 1 left!

0

35

Cub Cadet 938-0012

Rear Axle Assembly
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 941-0522

Flge Bearing .506 ID x .715 Lg
(Superseded to 741-0522)

$

$

Not available

37

Cub Cadet 782-0568-0637

Height Adjustment Spring Brkt.
(Superseded to 782-0568B-0637)

$

$

Not available

38

Cub Cadet 950-0151

Spacer .550 ID x .750 OD

$10.99

$

In Stock, Qty 20+

0

39

Cub Cadet 710-1315

Screw 3/8-16 x .25

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 911-0835

Clevis Pin .50 Dia x 4.82 Lg.

$12.99

$

In Stock, only 3 left!

0

41

Cub Cadet 750-0807

Spacer .385 ID x .624 OD

$6.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-0779A

AB Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

44

Cub Cadet 731-06874

Trail Shield

$20.99

$

In Stock, only 1 left!

0

45

Cub Cadet 687-02495-4021

Handle Bracket Assembly - LH

$29.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 687-02494-4021

Handle Bracket Assembly - RH

$29.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-1348

Screw 1/4-14 x.500

$6.99

$

In Stock, only 3 left!

0

49

Cub Cadet 710-0260A

Carriage Bolt 5/16-18 x.62

$4.49

$

In Stock, Qty 20+

0

50

Cub Cadet 911-1146

Caster Axle

$13.99

$

In Stock, Qty 11

0

51

Cub Cadet 912-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 712-04063

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 726-0214

Push Cap

$10.99

$

In Stock, only 4 left!

0

54

Cub Cadet 936-0232

Wave Washer.531 ID x.781 OD
(Superseded to 736-0232)

$4.99

$

In Stock, Qty 12

0

55

Cub Cadet 736-0366

Flat Washer.640 ID x 1.12 OD

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 741-0685

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

57

Cub Cadet 731-1888

Hubcap - Spoke w/ Hole

$10.99

$

In Stock, Qty 20+

0

58

Cub Cadet 731-07048

Hubcap - Radial Spoke

$10.99

$

In Stock, Qty 5

0
