CC 98 M (12A-98K7209) - Cub Cadet Walk-Behind Mower (2011) Kohler XT173-3315 Head, Valve & Breather Parts Diagram

Walk-Behind Mower

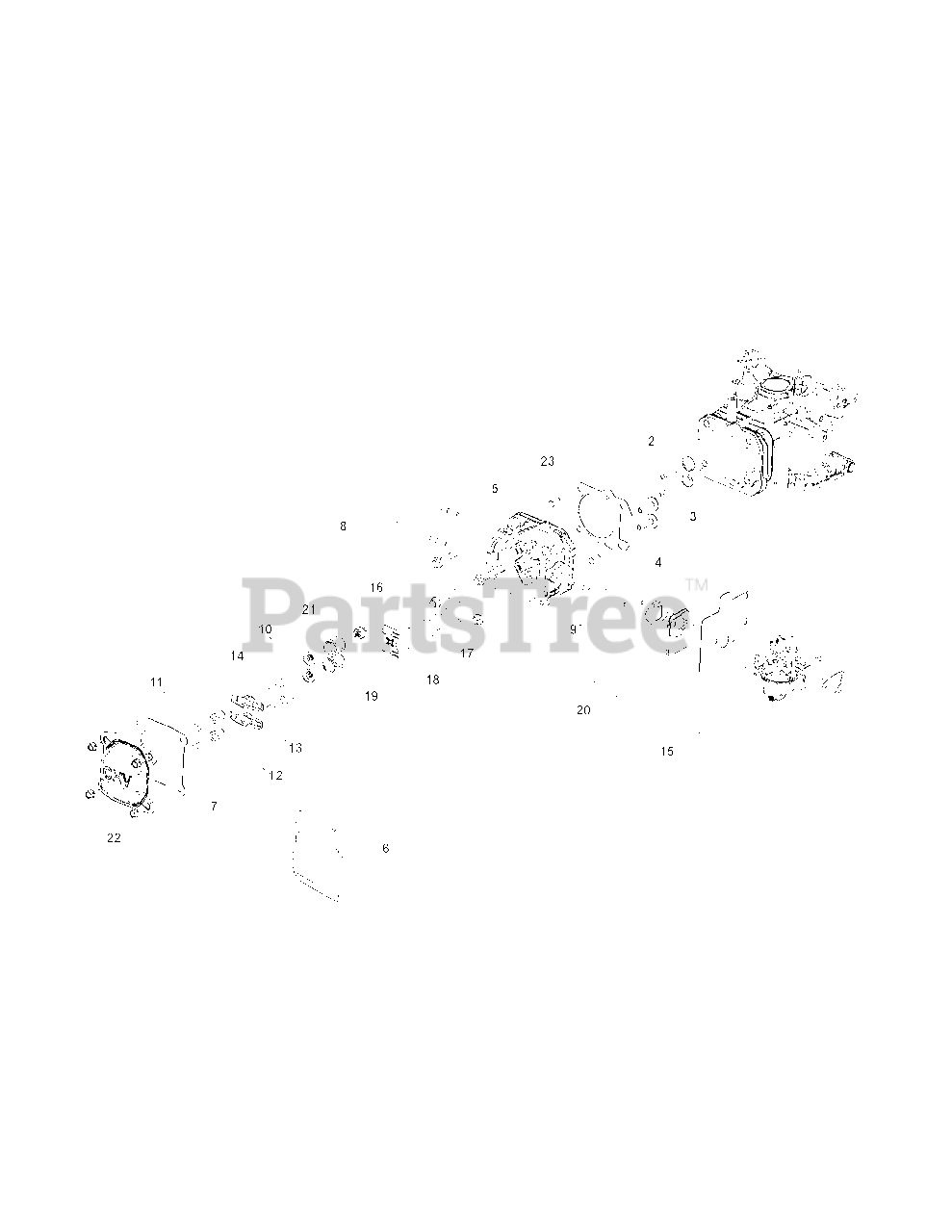

Kohler XT173-3315 Head, Valve & Breather Parts Diagram

  • Title

1

Cub Cadet KH-14-755-02-S

Valve Train Kit

Note: (Inc. Valve Stem Seal, Valve Springs, Push Rod Guide Plate, Cylinder Head Dowels, Push Rods)

$

$

Not available

2

Cub Cadet KH-14-017-01-S

Intake Valve

$18.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-14-016-01-S

Exhaust Valve

$21.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-14-841-04-S

Head Gasket Kit (Inc. Muffler Gasket)
(Superseded to KH-14-841-34-S)

$20.99

$

In Stock, only 1 left!

0

5

Cub Cadet KH-14-318-03-S

Cylinder Head Kit

$

$

Not available

6

Cub Cadet KH-14-096-05-S

Valve Cover Kit
(Superseded to KH-14-096-62-S)

$19.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-041-01-S

Valve Cover Gasket

$8.99

$

In Stock, Qty 5

0

8

Cub Cadet KH-14-072-06-S

Stud Kit (M6)

Note: (QTY 2)

$10.99

$

In Stock, only 2 left!

0

9

Cub Cadet KH-24-072-06-S

Stud, M6 x 1.0 x 93

Note: (2 used)

$13.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-14-018-02-S

Valve Spring Retainer

$5.99

$

In Stock, only 2 left!

0

11

Cub Cadet KH-14-100-01-S

Hex Jam Nut

$2.49

$

In Stock, Qty 5

0

12

Cub Cadet KH-14-599-01-S

Rocker Arm Pivot

$2.49

$

Usually ships in 2-5 days

0

13

Cub Cadet KH-14-186-02-S

Rocker Arm

$7.49

$

Usually ships in 2-5 days

0

14

Cub Cadet KH-14-072-22-S

Rocker Arm Stud

$

$

Not available

15

Cub Cadet KH-14-041-24-S

Gasket Kit
(Superseded to KH-14-041-31-S)

$13.99

$

In Stock, Qty 15

0

16

Cub Cadet KH-25-086-140-S

Hex Flange Screw, M8

$2.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KH-14-411-01-S

Push Rod

$

$

Not available

18

Cub Cadet KH-14-146-01-S

Push Rod Guide Plate

$5.99

$

Usually ships in 2-5 days

0

19

Cub Cadet KH-14-032-08-S

Valve Stem Seal

$2.99

$

In Stock, only 1 left!

0

20

Cub Cadet KH-14-112-13-S

Carburetor Spacer

$16.99

$

Usually ships in 2-5 days

0

21

Cub Cadet KH-14-089-02-S

Valve Spring

$4.99

$

In Stock, only 3 left!

0

22

Cub Cadet KH-25-086-159-S

Hex Flange Screw, M6

$

$

Not available

23

Cub Cadet KH-14-380-06-S

Cylinder Head Dowel
(Superseded to KH-14-380-13-S)

$2.49

$

Usually ships in 2-5 days

0
