CC 98 M (12A-98K7209) - Cub Cadet Walk-Behind Mower (2011) Kohler XT173-3315 Fuel System Parts Diagram

Walk-Behind Mower

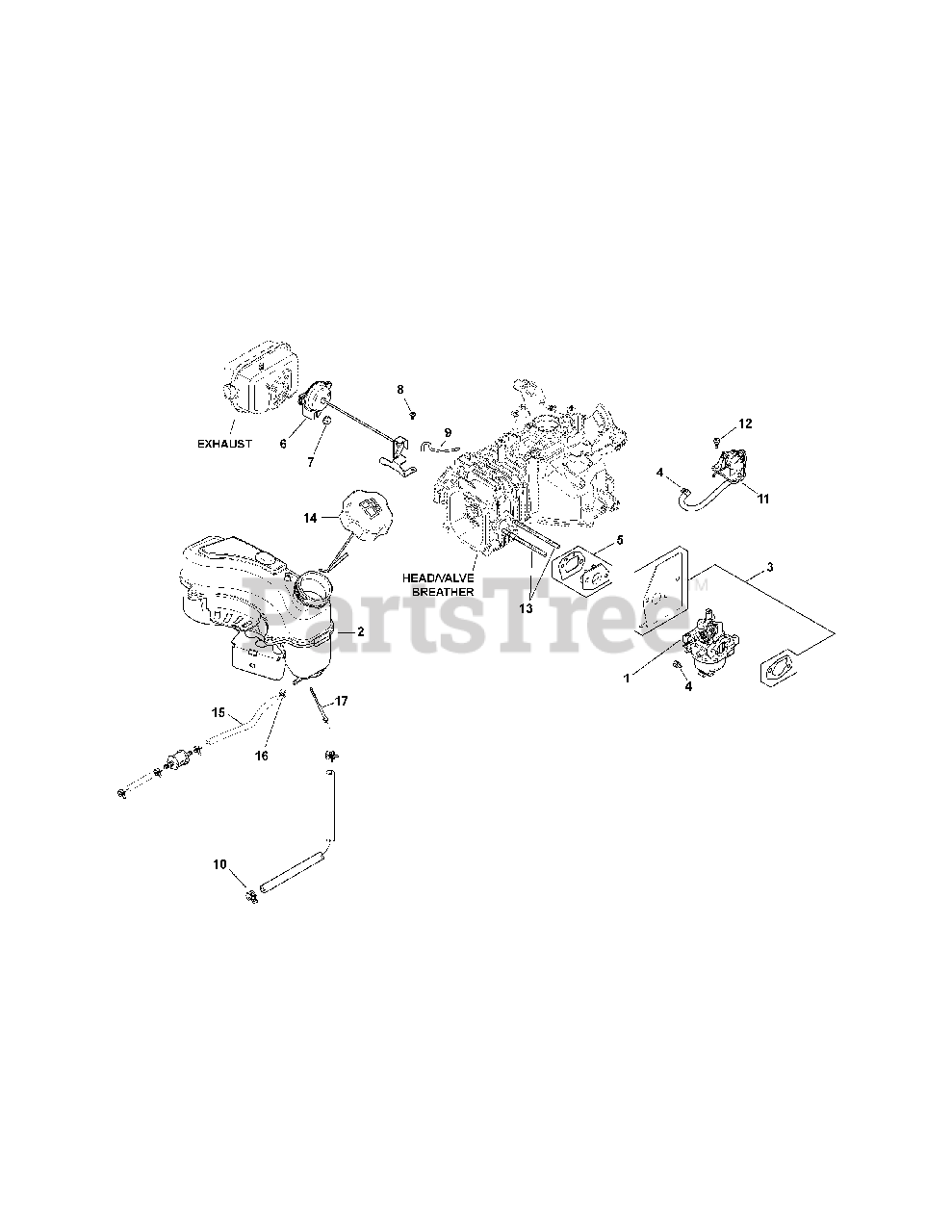

Kohler XT173-3315 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-14-853-41-S

Carburetor, 13MM Auto Choke
(Superseded to KH-14-853-57-S)

$44.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-14-065-29-S

Fuel Tank Assembly
(Superseded to KH-14-065-41-S)

$86.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-14-041-24-S

Kit, Gasket
(Superseded to KH-14-041-31-S)

$13.99

$

In Stock, Qty 5

0

4

Cub Cadet KH-14-237-05-S

Hose Clamp

$2.49

$

In Stock, Qty 5

0

5

Cub Cadet KH-14-112-13-S

Carburetor Spacer Kit

$16.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-14-187-01-S

Arm, Assembly

$28.99

$

In Stock, only 1 left!

0

7

Cub Cadet KH-14-100-08-S

Nut, Hex Flange, M6
(Superseded to KH-14-100-16-S)

$2.49

$

In Stock, only 4 left!

0

8

Cub Cadet KH-25-086-277-S

Screw, M4 Thread Forming

$

$

Not available

9

Cub Cadet KH-14-079-17-S

Linkage, Auto Choke
(Superseded to KH-14-079-26-S)

$4.99

$

In Stock, only 3 left!

0

10

Cub Cadet KH-14-237-07-S

Hose Clamp

$

$

Not available

11

Cub Cadet KH-14-268-04-S

Diaphragm, Assembly

$19.99

$

In Stock, only 1 left!

0

12

Cub Cadet KH-25-086-275-S

Screw, Shoulder

$

$

Not available

13

Cub Cadet KH-24-072-06-S

Stud, M6 x 1.0 x 93

$13.99

$

In Stock, Qty 6

0

14

Cub Cadet KH-14-227-15-S

Fuel Cap Assembly
(Superseded to KH-14-227-26-S)

$30.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-111-69-S

Fuel Hose, Low-Permeation

$9.49

$

In Stock, Qty 5

0

16

Cub Cadet KH-14-237-01-S

Hose Clamp

$2.49

$

In Stock, only 4 left!

0

17

Cub Cadet KH-14-050-14-S

Filter, Fuel In-Nipple

$6.99

$

In Stock, Qty 11

0
