CC 98 M (12A-98K7209) - Cub Cadet Walk-Behind Mower (2011) Kohler XT173-3315 Crankcase Parts Diagram

Walk-Behind Mower

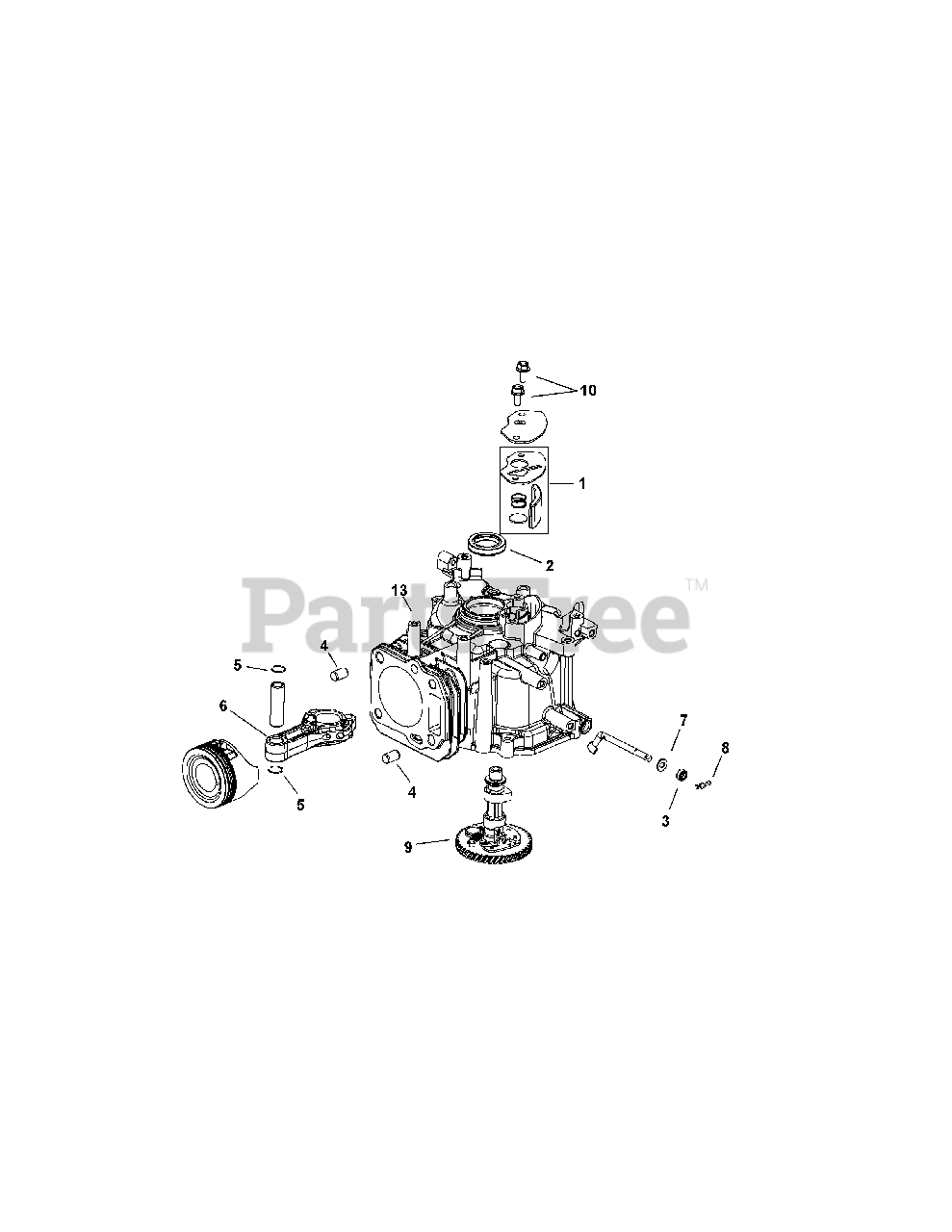

Kohler XT173-3315 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-14-050-01-S

Breather Filter Kit

Note: (Inc. Breather Cover Gasket, Breather Cover Spring, Breather Filter, Breather Reed)

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-14-032-02-S

Oil Seal

$11.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-14-032-04-S

Oil Seal

$2.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-14-380-06-S

Cylinder Head Dowel
(Superseded to KH-14-380-13-S)

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-14-018-03-S

Piston Pin Retainer

$3.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-14-067-01-S

Connecting Rod

$59.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-468-07-S

Flat Washer (Dia. 13mm O.D.)

$1.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-14-154-01-S

Governor Shaft Clip

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-14-010-12-S

Camshaft Assembly

$40.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-086-159-S

Hex Flange Screw, M6

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-14-561-09-S

Crankcase

$

$

Not available

Cub Cadet KH-14-874-02-S

Piston Kit

Note: Not shown

$

$

Not available

Cub Cadet KH-17-108-01-S

Piston Ring Set

Note: Not shown

$46.99

$

Usually ships in 2-5 days

0
