CC 98 K (12A-98K6009) - Cub Cadet Walk-Behind Mower (2010) Kohler XT173-0084 Fuel System Parts Diagram

Walk-Behind Mower

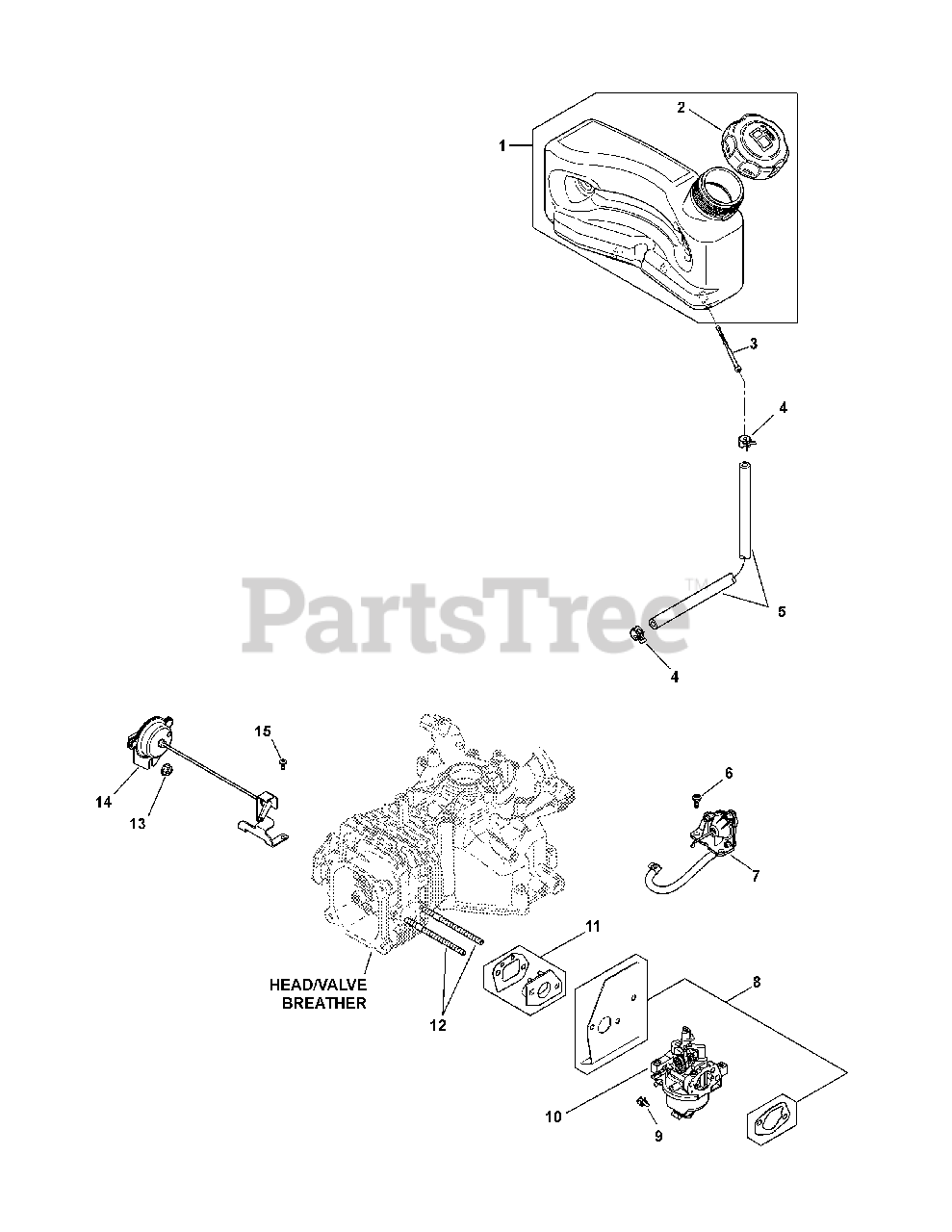

Kohler XT173-0084 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-14-065-12-S

Kit, Fuel Tank (Includes 2)
(Superseded to KH-14-065-24-S)

$43.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-14-227-04-S

Cap, Fuel Assy.

$

$

Not available

3

Cub Cadet KH-14-050-14-S

Filter, Fuel In-Nipple

$6.99

$

In Stock, Qty 11

0

4

Cub Cadet KH-14-237-04-S

Clamp, Hose

$2.49

$

In Stock, Qty 7

0

5

Cub Cadet KH-25-111-34-S

Line, Fuel (24"-Cut To Length)
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-25-086-275-S

Screw, Shoulder

$

$

Not available

7

Cub Cadet KH-14-268-04-S

Diaphragm, Assembly

$19.99

$

In Stock, only 1 left!

0

8

Cub Cadet KH-14-041-05-S

Kit, Carb Gasket
(Superseded to KH-14-041-31-S)

Note: (Includes Carburetor Heat Shield Gasket, Air Cleaner Base Gasket)

$13.99

$

In Stock, Qty 5

0

9

Cub Cadet KH-14-237-05-S

Clamp, Hose

$2.49

$

In Stock, Qty 5

0

10

Cub Cadet KH-14-853-27-S

Kit, Carburetor W/Gaskets (Includes 8)
(Superseded to KH-14-853-57-S)

$44.99

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-14-112-02-S

SPACER, CARBURETOR

$

$

Currently unavailable

12

Cub Cadet KH-24-072-06-S

Stud, M6X1.0X93

$13.99

$

In Stock, Qty 6

0

13

Cub Cadet KH-M-641060-S

Nut, Flg M6X1.0

$4.49

$

In Stock, Qty 8

0

14

Cub Cadet KH-14-187-01-S

Arm, Assembly

$28.99

$

In Stock, only 1 left!

0

15

Cub Cadet KH-25-086-277-S

Screw, M4 Thread Forming

$

$

Not available
