CC 98 H (12A-98FQ710) - Cub Cadet Walk-Behind Mower (2010) Honda GCV190LAS3A Oil Pan Parts Diagram

Walk-Behind Mower

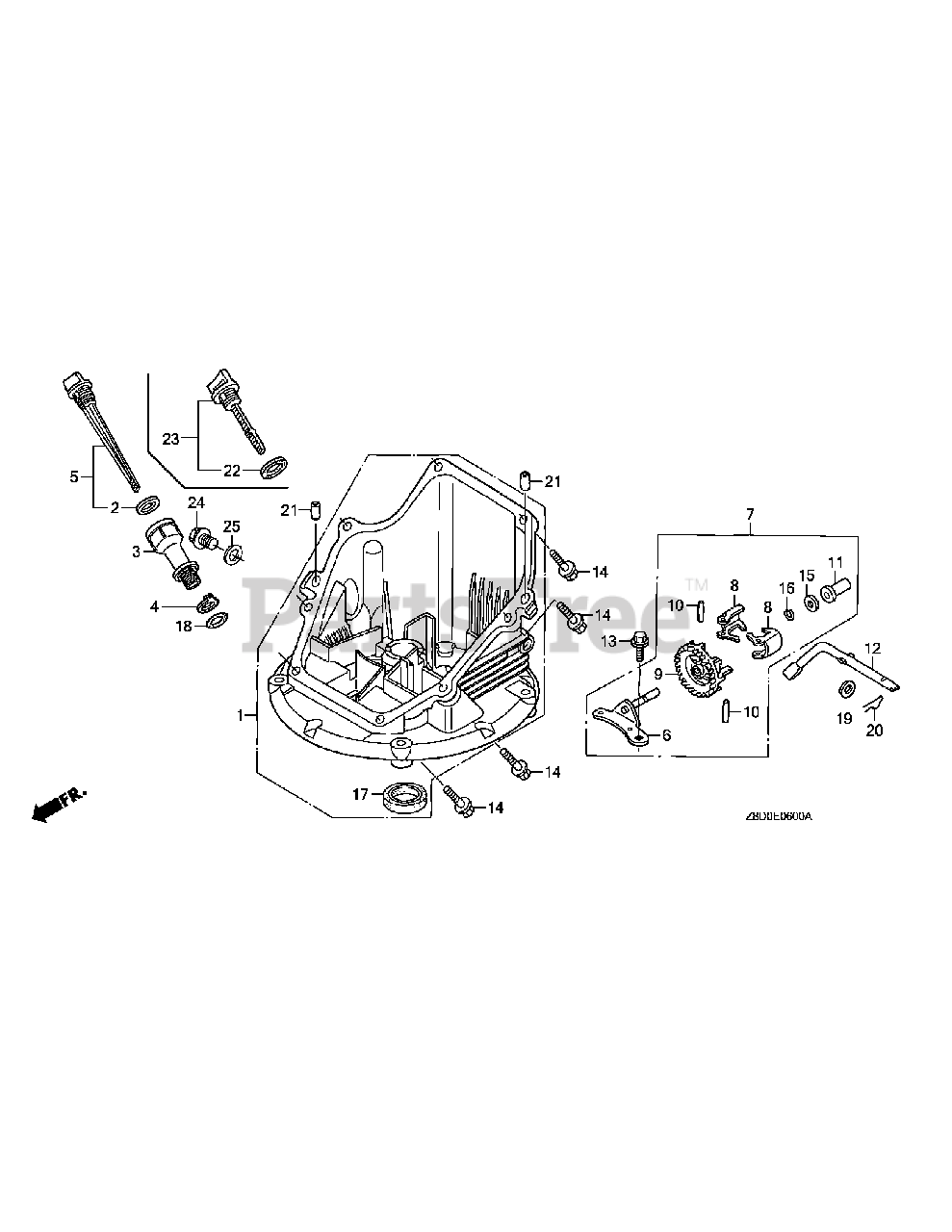

Honda GCV190LAS3A Oil Pan Parts Diagram

  • Title
1

Cub Cadet 11300-Z0Y-406

Cylinder Barrel Assembly

$

$

Not available

2

Honda 15625-ZE6-000

Oil Filler Cap Packing

$4.99

$

In Stock, only 1 left!

0

3

Honda 15631-ZM0-000

Oil Fill Extension

$10.99

$

In Stock, only 1 left!

0

4

Honda 15639-ZM0-000

Extension Lock Washer

$0.99

$

In Stock, Qty 8

0

5

Honda 15650-ZM0-801

Oil Level Gauge Assembly

$7.99

$

In Stock, only 3 left!

0

6

Honda 16508-ZM0-010

Governor Holder Shaft Comp.

$7.49

$

Usually ships in 3-6 days

0

7

Honda 16510-ZM0-010

Governor Assembly

$22.99

$

In Stock, only 2 left!

0

8

Honda 16511-ZL8-000

Governor Weight

$1.99

$

In Stock, only 4 left!

0

9

Honda 16512-ZM0-000

Governor Weight Holder

$13.99

$

Usually ships in 3-6 days

0

10

Honda 16513-ZE1-000

Governor Weight Pin

$2.49

$

Usually ships in 3-6 days

0

11

Honda 16531-ZE1-000

Governor Slider

$3.49

$

In Stock, Qty 8

0

12

Honda 16541-ZM0-000

Governor Arm Shaft

$5.49

$

In Stock, only 2 left!

0

13

Honda 90014-952-000

Flange Bolt, 6 x 14

$3.49

$

In Stock, only 3 left!

0

14

Honda 90121-952-000

Flange Bolt, 6 x 25

$2.99

$

In Stock, Qty 20+

0

15

Honda 90451-ZE1-000

Thrust Washer, 6mm

$2.49

$

In Stock, only 2 left!

0

16

Honda 90602-ZE1-000

Governor Holder Clip

$1.99

$

In Stock, only 3 left!

0

17

Honda 91202-ZL8-003

Oil Seal, 28 x 41.25 x 6

$7.49

$

In Stock, Qty 16

0

18

Honda 91303-KF0-003

O-Ring, 14.8 x 2.4

$2.49

$

In Stock, only 3 left!

0

19

Honda 94101-06800

Plain Washer, 6mm

$0.99

$

In Stock, Qty 20+

0

20

Honda 94251-08000

Lock Pin, 8mm

$1.99

$

In Stock, Qty 9

0

21

Honda 94301-08200

Dowel Pin, 8 x 20

$2.99

$

Usually ships in 3-6 days

0

22

Honda 15625-Z2L-801

Oil Filler Cap Packing

$

$

Not available

23

Honda 15650-Z0L-000

Oil Level Gauge Assembly

$1.49

$

In Stock, only 3 left!

0

24

Cub Cadet 90131-883-000

Drain Plug Bolt, 12 x 15
(Superseded to 90131-896-650)

$5.49

$

In Stock, Qty 11

0

25

Honda 94109-12000

Drain Plug Washer, 12mm

$1.49

$

In Stock, Qty 20+

0
