CC 98 H (12A-98FQ710) - Cub Cadet Walk-Behind Mower (2010) Honda GCV190LAS3A Controls Parts Diagram

Walk-Behind Mower

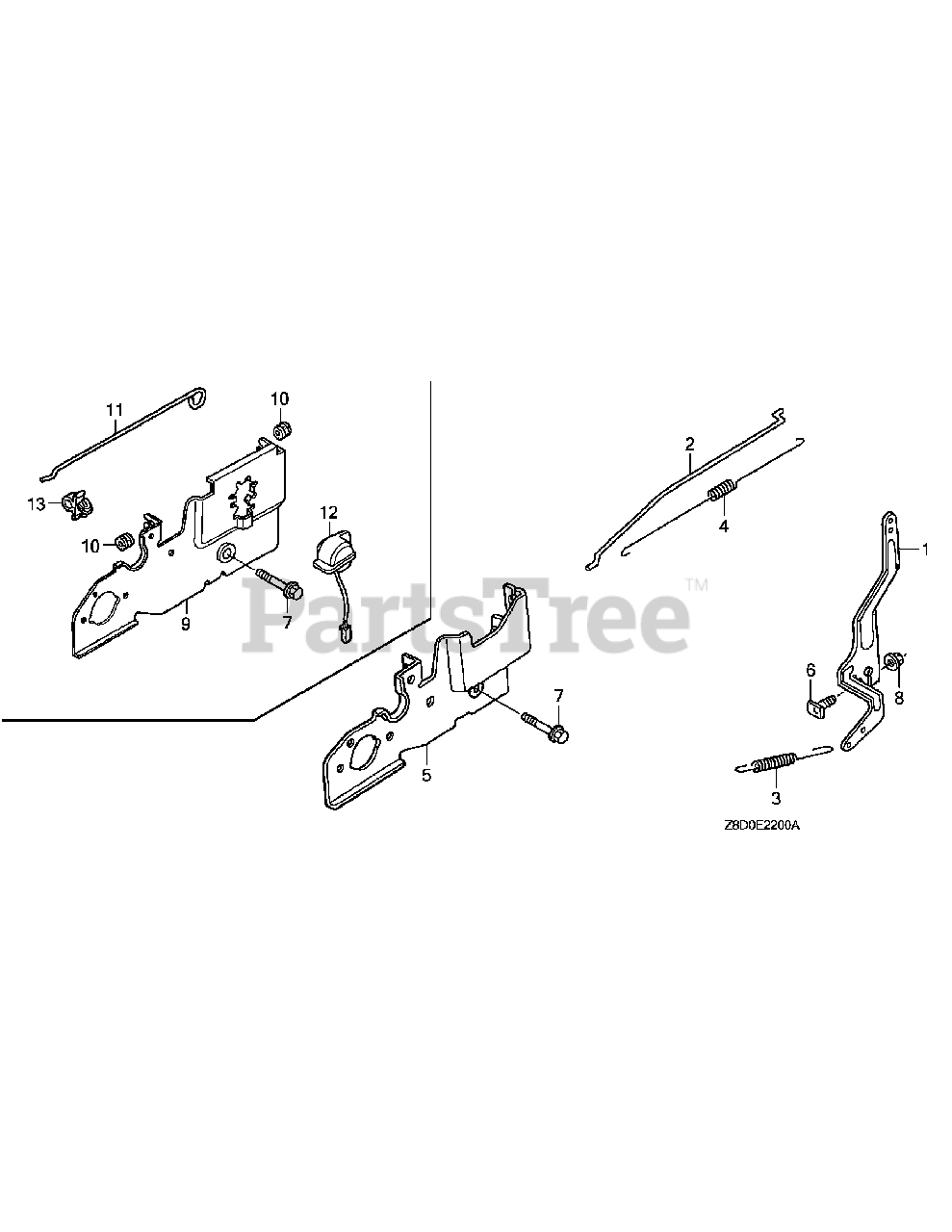

Honda GCV190LAS3A Controls Parts Diagram

  • Title

1

Honda 16551-ZM0-010

Governor Arm

$7.49

$

Usually ships in 3-6 days

0

2

Honda 16555-Z0L-800

Governor Rod
(Superseded to 16555-Z0L-801)

$0.99

$

In Stock, only 2 left!

0

3

Honda 16561-Z0L-000

Governor Spring

$1.99

$

In Stock, Qty 5

0

4

Honda 16562-ZM0-000

Throttle Return Spring

$3.49

$

In Stock, Qty 8

0

5

Honda 16580-Z0L-810

Control Base Complete

$148.99

$

Usually ships in 3-6 days

0

6

Honda 90015-ZE5-010

Governor Arm Bolt

$3.49

$

In Stock, only 3 left!

0

7

Honda 90016-ZE8-000

Flange Bolt, 6 x 45 (CT200)

$2.99

$

In Stock, only 2 left!

0

8

Honda 94050-06000

Flange Nut, 6mm

$0.99

$

In Stock, Qty 20+

0

9

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

10

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

11

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

12

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable

13

Cub Cadet N/A

Not used in this application

$

$

Currently unavailable
