CC 98 H (12A-989Q710) - Cub Cadet Walk-Behind Mower (2012) Honda GCV160LA0 Fuel Tank Parts Diagram

Walk-Behind Mower

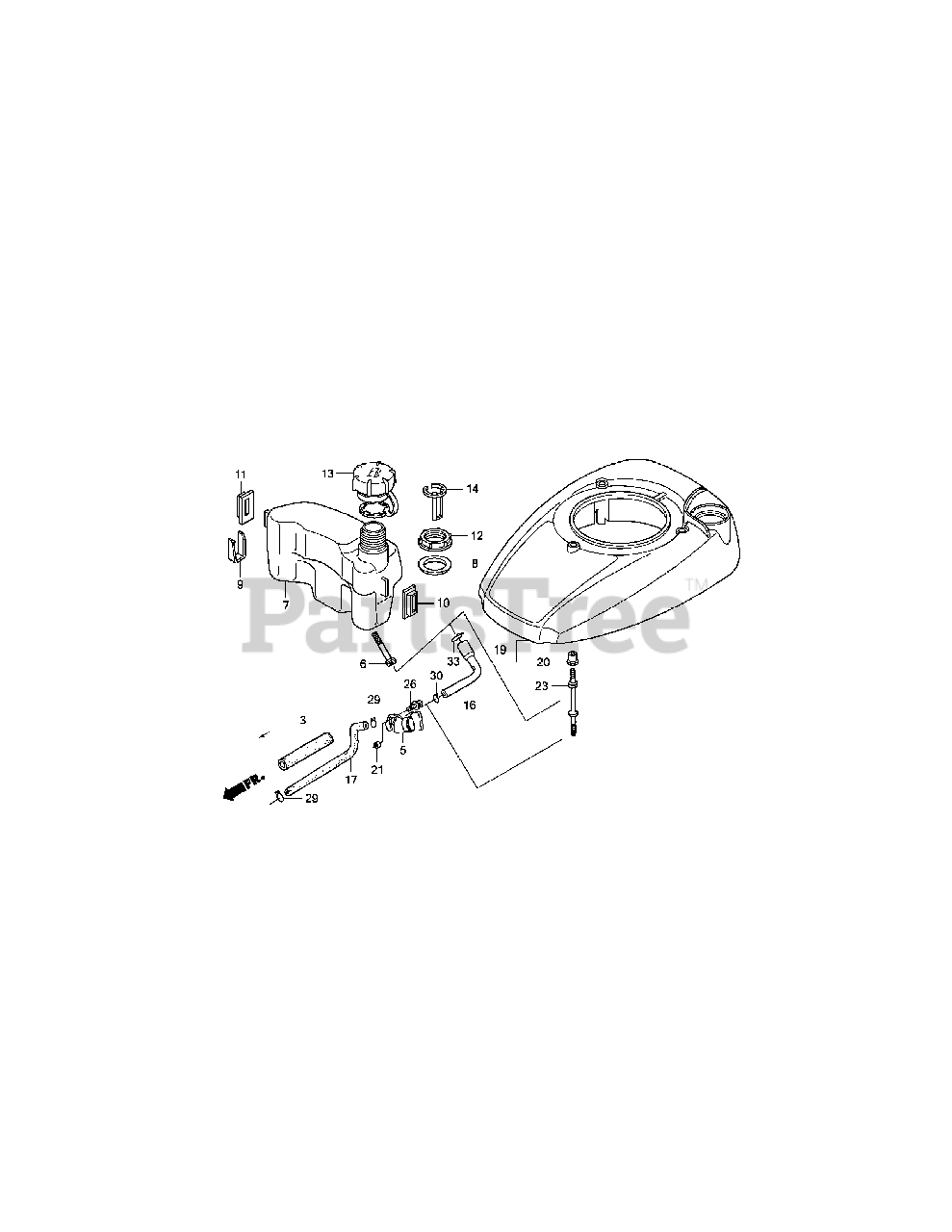

Honda GCV160LA0 Fuel Tank Parts Diagram

  • Title

3

Honda 16854-ZH8-000

Fuel Line Sleeve

$5.49

$

In Stock, Qty 12

0

5

Honda 16950-ZM0-003

Petcock Assembly

$9.99

$

In Stock, Qty 12

0

6

Honda 16952-ZA8-800

Fuel Filter

$9.49

$

In Stock, Qty 16

0

7

Honda 17511-Z0L-000

Fuel Tank

$76.99

$

Usually ships in 3-6 days

0

8

Honda 17514-Z0L-000

Fuel Filler Neck Seal

$0.99

$

In Stock, Qty 10

0

9

Honda 17516-Z0L-000

Tank Mounting Clip

$0.99

$

In Stock, only 4 left!

0

10

Honda 17532-Z0L-000

Tank Mounting Rubber

$0.99

$

In Stock, Qty 9

0

11

Honda 17533-Z0L-000

Tank Mounting Rubber

$0.99

$

In Stock, Qty 6

0

12

Honda 17534-Z0L-000

Tank Mounting Nut

$0.99

$

In Stock, Qty 10

0

13

Honda 17620-Z0J-800

Fuel Cap Assembly
(Superseded to 17620-Z8B-800)

$23.99

$

In Stock, Qty 7

0

14

Honda 17636-Z0L-000

Fuel Level Gauge

$0.99

$

In Stock, Qty 9

0

16

Honda 17701-Z0L-810

Fuel Tank Tube

$3.99

$

In Stock, only 3 left!

0

17

Honda 17702-ZM0-800

Fuel Tube

$10.99

$

In Stock, only 4 left!

0

19

Cub Cadet 19610-Z0L-851ZA

Fan Cover, Black
(Superseded to 19611-Z0L-850ZA)

$40.99

$

In Stock, only 1 left!

0

20

Honda 19619-ZL8-300

Fan Cover Collar

$1.49

$

In Stock, Qty 9

0

21

Honda 91501-Z0L-800

Fuel Petcock Collar

$1.99

$

In Stock, only 1 left!

0

23

Honda 90043-ZL8-000

Stud Bolt, 42.5mm

$4.99

$

In Stock, Qty 20+

0

26

Honda 93891-05010-08

Screw w/ Washer, 5 x 10

$1.49

$

In Stock, Qty 5

0

29

Honda 95002-02080

Tube Clip, B8

$2.49

$

In Stock, Qty 20+

0

30

Honda 95002-02100

Tube Clip, B10

$2.49

$

In Stock, Qty 16

0

33

Honda 95002-70000

Tube Clip, C11

$2.49

$

In Stock, Qty 5

0
