CC 98 (12A-98K7209) - Cub Cadet Walk-Behind Mower (2012) Kohler XT800-3016 Crankcase Parts Diagram

Walk-Behind Mower

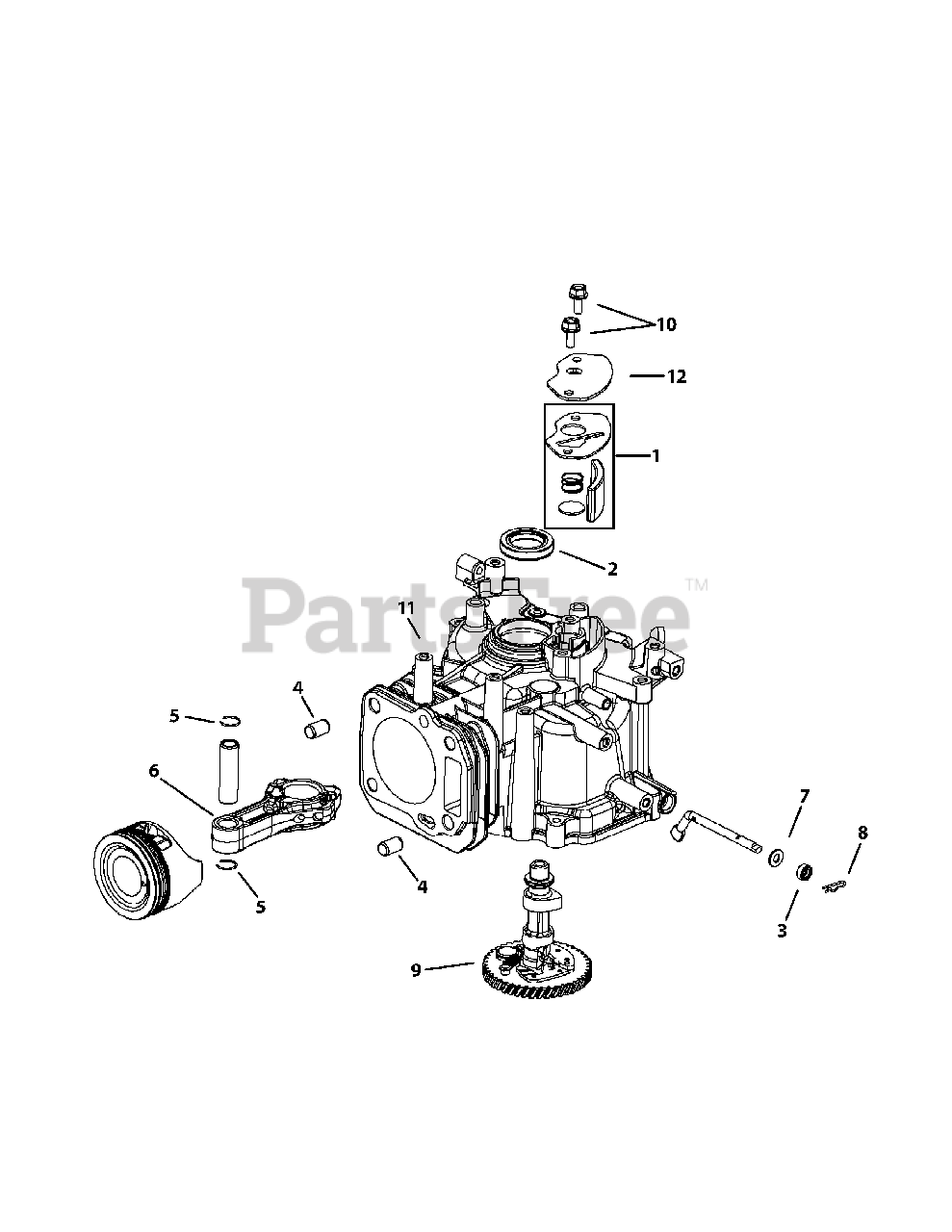

Kohler XT800-3016 Crankcase Parts Diagram

  • Title

1

Cub Cadet KH-14-050-01-S

Breather Filter Kit

Note: (Inc. Breather Cover Gasket, Breather Cover Spring,Breather Filter, Breather Reed)

$13.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-14-032-02-S

Oil Seal

$11.99

$

In Stock, only 2 left!

0

3

Cub Cadet KH-14-032-04-S

Oil Seal

$2.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-14-380-06-S

Cylinder Head Dowel
(Superseded to KH-14-380-13-S)

$2.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-14-018-03-S

Piston Pin Retainer

$3.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-14-067-01-S

Connecting Rod

$59.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KH-14-468-07-S

Flat Washer, 13 mm

$1.99

$

Usually ships in 2-5 days

0

8

Cub Cadet KH-14-154-01-S

Governor Shaft Clip

$2.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KH-14-010-12-S

Camshaft Assembly

$40.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KH-25-086-159-S

Hex Flange Screw, M6

$2.49

$

Usually ships in 2-5 days

0

11

Cub Cadet KH-14-561-09-S

Crankcase

$

$

Not available

12

Cub Cadet KH-14-096-22-S

Breather Cover

$

$

Not available

Cub Cadet KH-14-874-03-S

Piston Kit

Note: (Not shown)

$84.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-14-108-02-S

Ring Set

Note: (Not shown)

$37.99

$

In Stock, only 1 left!

0

Cub Cadet KH-XT800-3016

Complete Engine

Note: (Not shown)

$416.99

$

Usually ships in 3-6 days

0
