CC 949 (12A-949Q709) - Cub Cadet Walk-Behind Mower (2007) Wheels and Drive Parts Diagram

Walk-Behind Mower

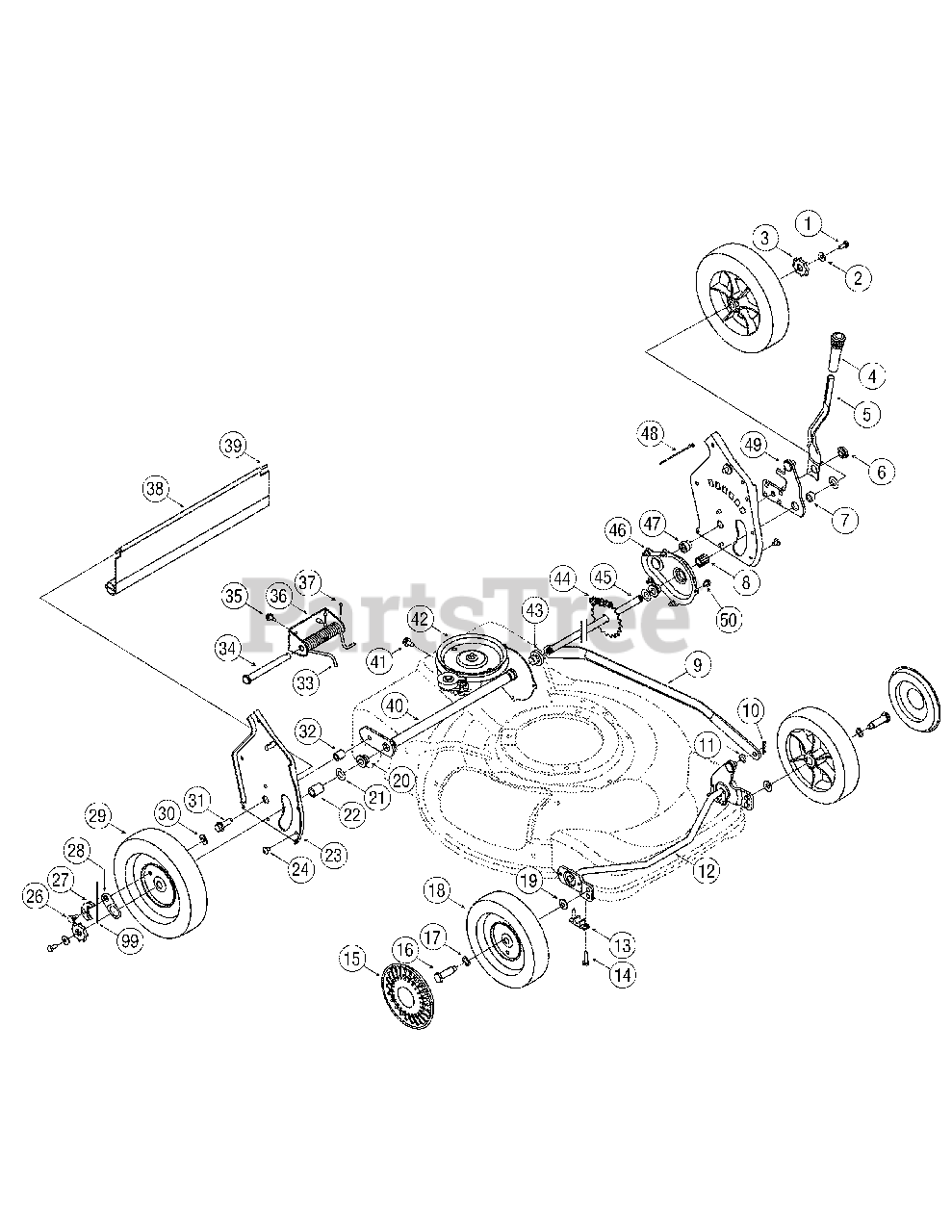

Wheels and Drive Parts Diagram

  • Title

1

Cub Cadet 710-0751

HH Cap Screw 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 748-0318

Wheel Ratchet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 16

0

4

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 7

0

5

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 16

0

6

Cub Cadet 738-0529

Shoulder Nut
(Superseded to 938-0529)

$11.99

$

In Stock, only 2 left!

0

7

Cub Cadet 750-0515

Spacer .51 x .70 x .38

$4.49

$

In Stock, only 4 left!

0

8

Cub Cadet 741-0978

Hex Sleeve Bearing

$4.99

$

In Stock, only 3 left!

0

9

Cub Cadet 782-0565

Single Lever Control Arm
(Superseded to 782-0565-0637)

Variations

Cub Cadet 782-0565-0498

USE 782-0565-0637 ARM-CONTROL - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-0565-0665

USE 782-0565-0637 ARM-CONTROL - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 714-0104

Hairpin Clip

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

12

Cub Cadet 611-0064

Front Axle Assembly
(Superseded to 611-0064-0637)

Variations

Cub Cadet 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$97.99

$

Usually ships in 3-6 days

0

Cub Cadet 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$97.99

$

Usually ships in 3-6 days

0

Cub Cadet 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 741-0492A

Block Bushing

$6.49

$

In Stock, Qty 9

0

14

Cub Cadet 710-1241

Hex Screw 1/4-15 x 1

$6.99

$

In Stock, Qty 18

0

15

Cub Cadet 731-0982A

Hubcap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

16

Cub Cadet 738-0102

Shoulder Scr., .498x1.445x3/8-16

$9.99

$

In Stock, Qty 10

0

17

Cub Cadet 736-0504

Wave Washer .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

18

Cub Cadet 734-04226

Front Wheel 8 x 2.125 COG
(Superseded to 734-04226A)

$54.99

$

In Stock, Qty 18

0

19

Cub Cadet 736-0105

Bell Washer .375 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 741-0324A

Hex Flange Bearing

$7.99

$

In Stock, Qty 5

0

21

Cub Cadet 736-0369

Flat Washer .508 x 1 x .020

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 750-0151

Spacer .550 x .755 x 1.1
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

23

Cub Cadet 682-3052

Handle Bracket Assy RH

Variations

Cub Cadet 682-3052-0498

HANDLE BRACKET (RH) CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-3052-0716

HANDLE BRACKET (RH) YELO-99 - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3052-0650

HANDLE BRACKET (RH) RD MTALIC - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3052-0662

HANDLE BRACKET (RH) OYST GRAY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

23

Cub Cadet 682-3053

Handle Bracket Assy LH

Variations

Cub Cadet 682-3053-0498

HANDLE BRACKET (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3053-0650

HANDLE BRACKET (LH) (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3053-0716

HANDLE BRACKET (LH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3053-0638

HANDLE BRACKET (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-3053-0662

HANDLE BRACKET (LH) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3053-0689

HANDLE BRACKET (LH) (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 682-3053-4015

HANDLE BRACKET (LH) (FIRE RED) - FIRE RED (4015)

$

$

Not available

$

$

24

Cub Cadet 710-1348

AB Screw 1/4-14 x .50

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet 10622B

Plastic Ratchet Spring

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet 738-0137A

Shoulder Scr., .340x.285x1/4-20

$10.99

$

In Stock, Qty 10

0

27

Cub Cadet 748-0381

PAWL RH

$11.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-0188B

PAWL LH
(Superseded to 948-0188B)

$

$

Not available

28

Cub Cadet 16855

Ratchet PAWL Plate

$6.49

$

In Stock, Qty 7

0

29

Cub Cadet 734-2010

Rear Wheel 9 x 2.125 Rwd PM
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-0414

Weld Nut

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, only 2 left!

0

32

Cub Cadet 750-0807

Spacer .385 x .625 x .700

$6.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 732-0832

Torsion Spring RH

$19.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 711-0835

Clevis Pin .500 x 4.62
(Superseded to 911-0835)

$12.99

$

In Stock, only 3 left!

0

35

Cub Cadet 710-1652

TT Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 782-0568

Lift Assist Spring Bracket
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 714-0474

Cotter Pin

$4.99

$

In Stock, Qty 13

0

38

Cub Cadet 731-1901A

Trailshield

$40.99

$

In Stock, only 2 left!

0

39

Cub Cadet 732-0842

Trailshield Wire

$6.49

$

In Stock, Qty 6

0

40

Cub Cadet 682-7526

Axle Assembly Transmission
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 710-0604A

TT Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 618-0263A

Transmission
(Superseded to 918-0263A)

$

$

Not available

43

Cub Cadet 741-0522

Hex Flange Bearing

$

$

Not available

44

Cub Cadet 713-0453

Chain
(Superseded to 913-0453)

$12.99

$

In Stock, only 1 left!

0

45

Cub Cadet 638-0012

Axle Assembly RR
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 682-7528

Chain Cover Assembly
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

47

Cub Cadet 750-1056

Shoulder Spacer .385 x .715
(Superseded to 950-1056)

$7.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 682-0531

RR Pivot Arm Assembly
(Superseded to 682-0531-0637)

Variations

Cub Cadet 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 710-0653

TT Screw, 1/4-20 x .375

$4.49

$

In Stock, Qty 8

0
