CC 94 M (12A-94J1710) - Cub Cadet Walk-Behind Mower (2012) CC94M General Assembly Parts Diagram

Walk-Behind Mower

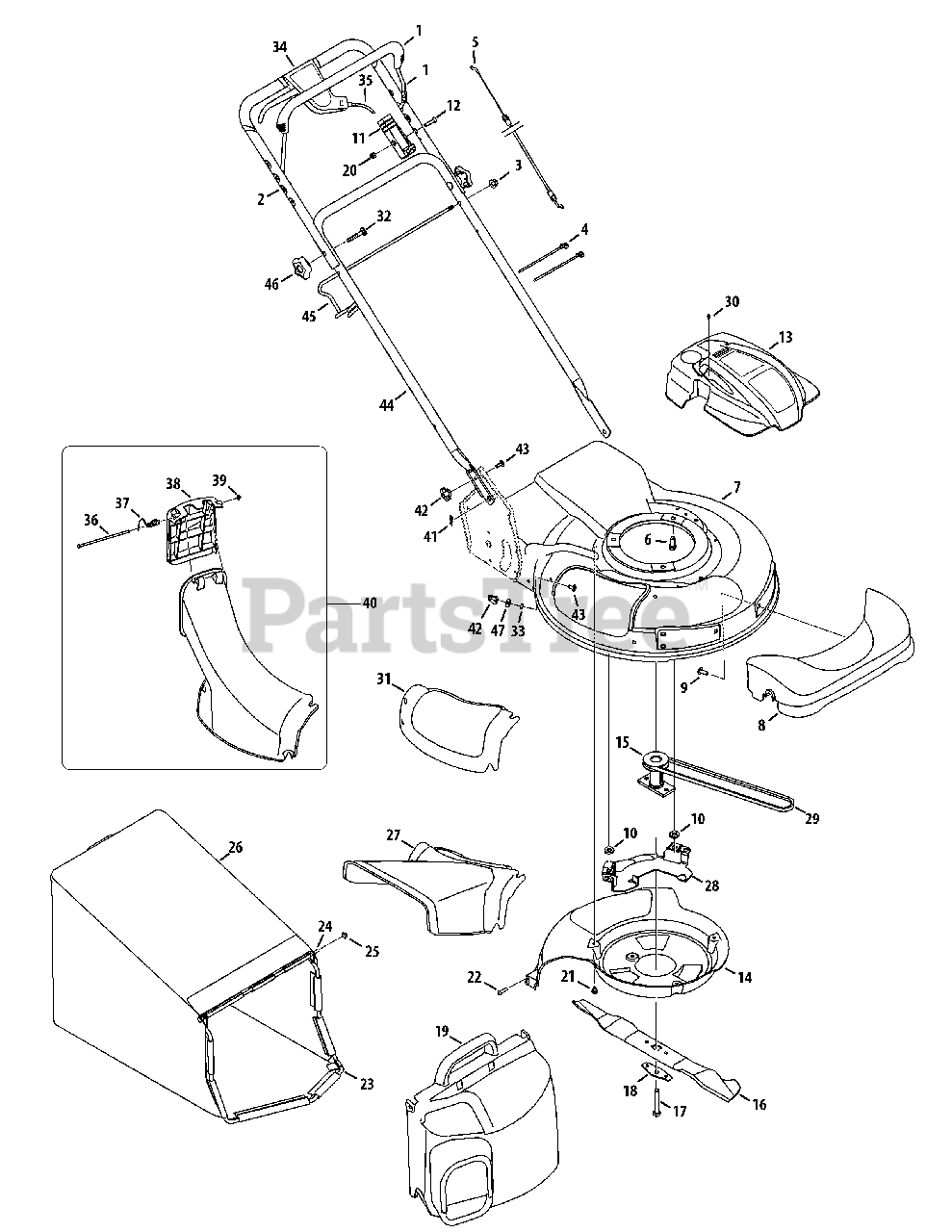

CC94M General Assembly Parts Diagram

  • Title

1

Cub Cadet 647-04008A

Blade Control Assembly

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet 749-04482-0637

Upper Handle

$38.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 946-04708

Control Cable

$17.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0654A

TT Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 787-01948-4021

21-inch Deck

$

$

Not available

8

Cub Cadet 731-1836

Front Axle Cover

$

$

Not available

9

Cub Cadet 710-1242

HL Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

10

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 731-06749

Control Cable Mount

$5.49

$

In Stock, Qty 10

0

12

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

13

Cub Cadet 931-04232B

Engine Shroud

$63.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 931-04564A

Engine Baffle

$49.99

$

In Stock, Qty 5

0

15

Cub Cadet 687-02195A

Blade Adapter

$41.99

$

In Stock, only 1 left!

0

16

Cub Cadet 942-0741A

21-inch Mulching Blade

$29.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-1257

HH Cap Screw, 3/8-24 x 2.50

$7.99

$

In Stock, only 1 left!

0

18

Cub Cadet 736-0524B

Bell Blade Spacer
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 14

0

19

Cub Cadet 631-0071

Grass Bag Cover Assembly

$103.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 712-04064

Flange Lock Nut 1/4-20

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-0653

TT Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 7

0

22

Cub Cadet 710-0895

HL Screw 1/4-15 x .75

$6.49

$

In Stock, Qty 10

0

23

Cub Cadet 747-0937-0637

Grass Bag Frame

$58.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 747-0939

Grass Bag Pivot Rod

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 926-0106

Cap Speed Nut
(Superseded to 726-0106)

$

$

Not available

26

Cub Cadet 964-04112

Grass Bag
(Superseded to 964-0076A)

$98.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

28

Cub Cadet 782-9063A-0637

Belt Keeper
(Superseded to 782-9063B-0637)

$26.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 954-0460

V-Belt

$19.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-04744

Screw, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

31

Cub Cadet 931-1833A

Mulch Cover

$44.99

$

In Stock, only 2 left!

0

32

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2

$7.49

$

In Stock, Qty 20+

0

33

Cub Cadet 726-0233

Push Nut

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 753-06060

Drive Control Assembly
(Superseded to 753-06060A)

$27.99

$

In Stock, only 1 left!

0

35

Cub Cadet 946-0711B

Drive Cable

$32.99

$

In Stock, only 1 left!

0

36

Cub Cadet 747-0965

Chute Door Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

37

Cub Cadet 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 731-1874A

Top Discharge Door Chute

$17.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 726-0111

Push Cap

$

$

Not available

40

Cub Cadet 931-0066

Top Discharge Chute Assembly

$115.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 914-0104

Cotter Pin
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

43

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

44

Cub Cadet 749-0907B

Lower Handle

Variations

Cub Cadet 749-0907B-0637

Lower Handle - POWDER BLACK (0637)

$50.99

$

In Stock, only 1 left!

0

$50.99

$

In Stock, only 1 left!

0

45

Cub Cadet 747-0940A-0637

Grass Bag Support Rod

$26.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 736-3090

Flat Washer, .260 x .720 x .060

$6.99

$

In Stock, Qty 11

0
