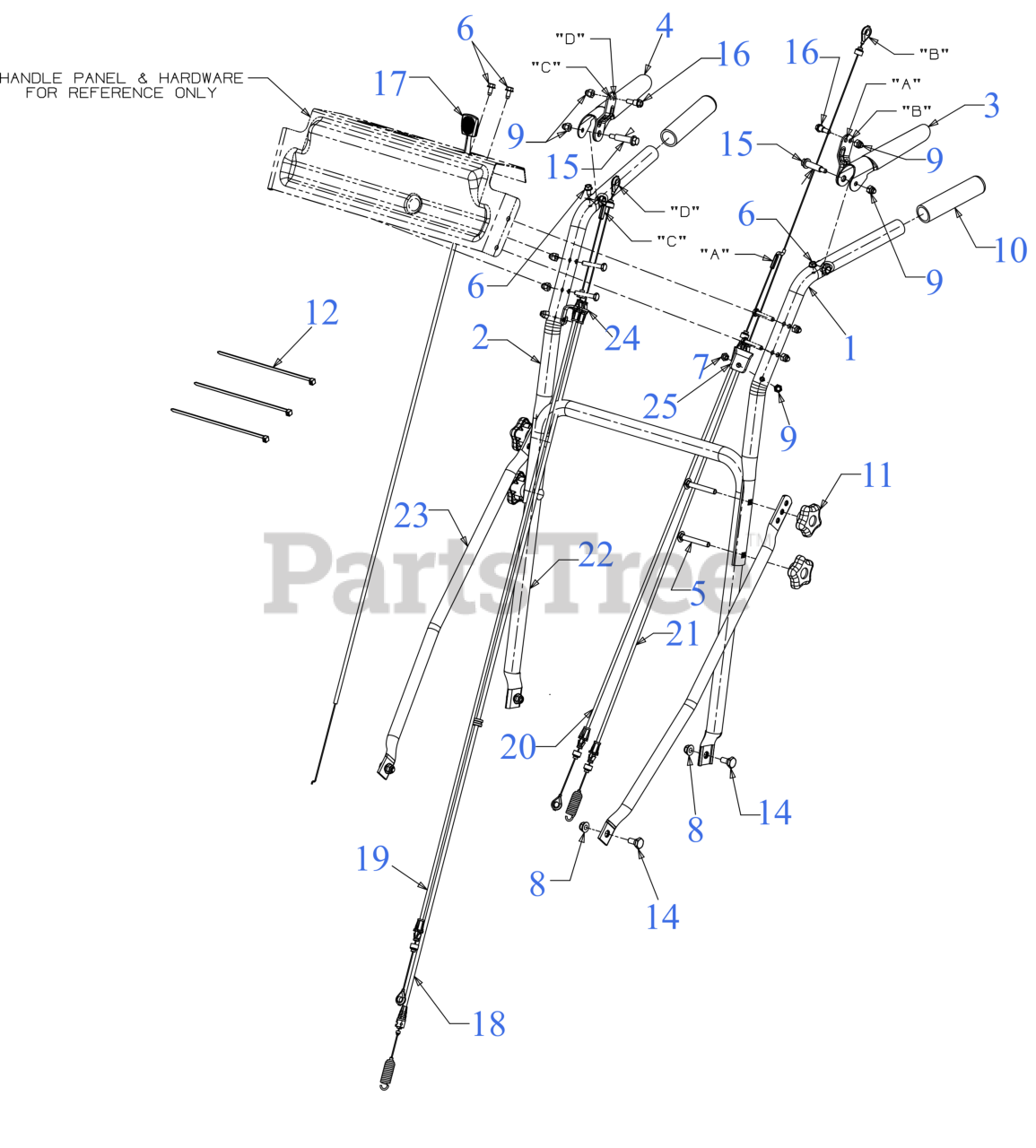

CC 800 (12AE764B010) - Cub Cadet Walk-Behind Mower (2023) Handle Parts Diagram

Walk-Behind Mower

Handle Parts Diagram

  • Title
1

Cub Cadet 649-05013B

UPPER HANDLE ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05013B-0637

Handle Assembly, Upper Lh - POWDER BLACK (0637)

$72.99

$

Usually ships in 3-6 days

0

$63.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 649-05014B

UPPER HANDLE ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 649-05014B-0637

Upper Handle Assembly, RH - POWDER BLACK (0637)

$72.99

$

In Stock, only 1 left!

0

$63.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 687-02418C

LEVER ASSEMBLY (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$9.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 687-02425C

LEVER ASSEMBLY (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$9.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0572

BOLT 5/16-18 x 2.50 GR1

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0606

SCREW 1/4-20 x 1.50 GR.5

$5.49

$

In Stock, Qty 10

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-0442

HEX ACORN NUT

$6.99

$

In Stock, only 4 left!

0

$11.99

$

In Stock, Qty 8

0

11

Cub Cadet 720-04072A

STAR KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

12

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 738-0140

SHOULDER SCREW .437

$5.99

$

In Stock, Qty 15

0

15

Cub Cadet 738-05041A

SHOULDER BOLT .375X1.285:1/4-20

$6.49

$

In Stock, only 3 left!

0

16

Cub Cadet 738-05149A

SHOULDER SCREW .342X.335X1/4-20

$6.49

$

In Stock, only 2 left!

0

17

Cub Cadet 746-04604A

THROTTLE/CHOKE CABLE 38" x 1.1

$

$

Not available

18

Cub Cadet 946-05073

BLADE CONTROL CABLE

$39.99

$

In Stock, only 1 left!

0

19

Cub Cadet 946-05076A

TRANSMISSION BRAKE CABLE (RH)

$36.99

$

In Stock, Qty 6

0

20

Cub Cadet 946-05077A

TRANSMISSION BRAKE CABLE (LH)

$36.99

$

In Stock, Qty 20+

0

21

Cub Cadet 946-05149

WHEEL CLUTCH CABLE

$55.99

$

In Stock, only 4 left!

0

22

Cub Cadet 749-04330-0637

LOWER HANDLE (POWDER BLACK)

$84.99

$

In Stock, only 1 left!

0

23

Cub Cadet 749-04333-0637

HANDLE ADJUSTMENT BRACE (POWDER BLACK)

$46.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 787-01490A-0637

CABLE BRACKET MOUNTING (RH)

$10.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 787-01491A-0637

CABLE BRACKET MOUNTING (LH)

$19.99

$

Usually ships in 3-6 days

0
