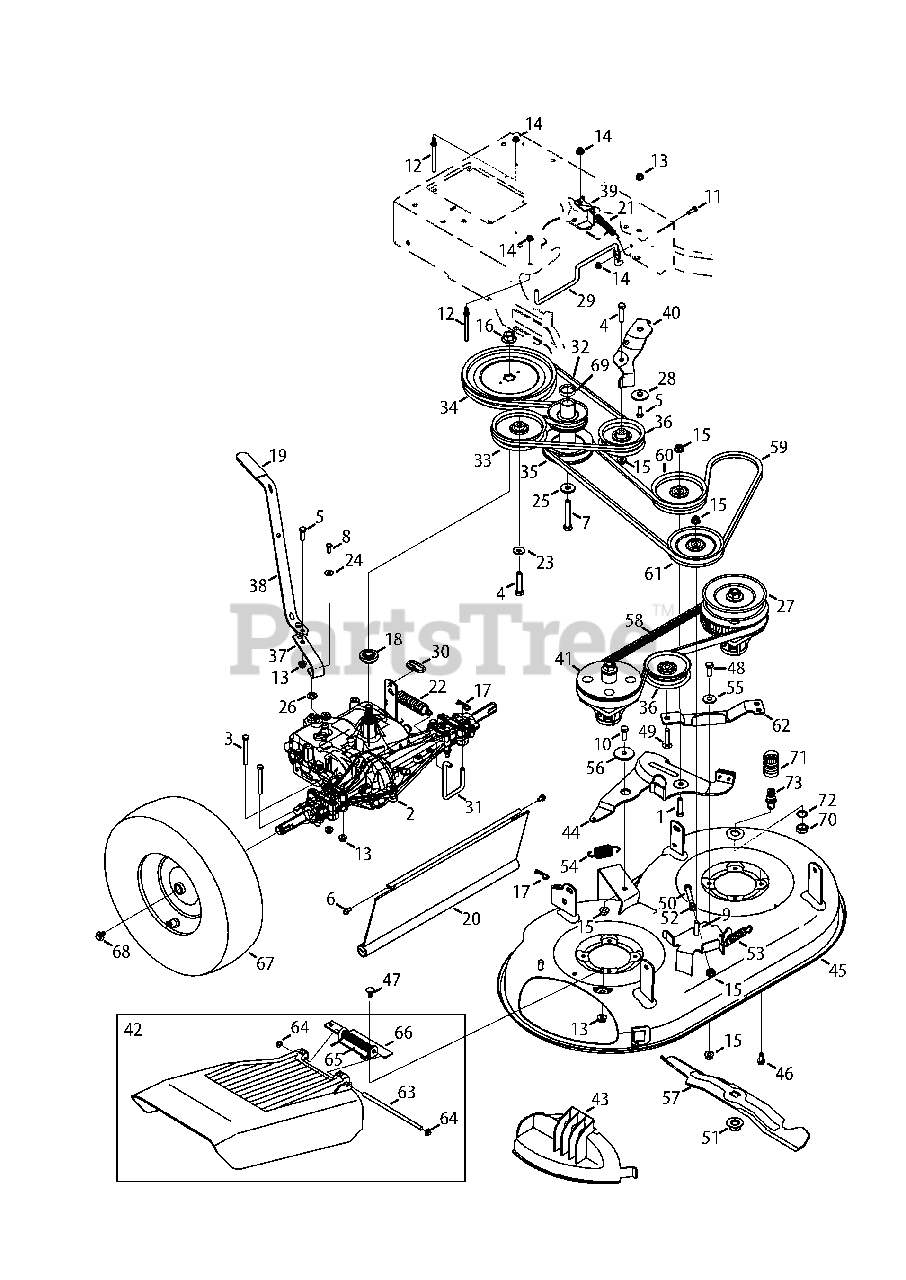

CC 760 ES (12AE76JU010) - Cub Cadet Walk-Behind Mower (2013) Drive & Deck Parts Diagram

Walk-Behind Mower

Drive & Deck Parts Diagram

  • Title

1

Cub Cadet 710-3005

Hex Head Cap Screw, 3/8-16 x 1.75

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 918-04639

4 Speed Drive Assembly, Tecumseh

$921.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0176

Hex Head Cap Screw, 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 710-0347

Hex Head Cap Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0376

Hex Head Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04669

Screw, 10-16 x 0.625

$3.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-04877

HHCS, 7/16-20 x 3.00 (420CC)

$8.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0513

Hex Head Cap Screw, 1/4-28 x .625
(Superseded to 710-0513A)

$4.99

$

In Stock, Qty 7

0

9

Cub Cadet 710-0520

Hex Head Cap Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 5

0

10

Cub Cadet 710-3005

Hex Head Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3015

Hex Head Cap Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 911-1000

Belt Keeper, .25 DIA X 3.0

$10.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-0700

Flange Nut, 9/16-18

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 718-04407

Spline Pulley Hub, 5/8

$12.99

$

In Stock, Qty 20+

0

19

Cub Cadet 720-0142

Grip, Black

$3.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 731-05766

Trailshield, 8.35 x 19.17

$35.99

$

In Stock, Qty 9

0

21

Cub Cadet 732-04409

Extension Spring, Wheel Drive

$8.99

$

In Stock, Qty 9

0

22

Cub Cadet 732-04443A

Extension Spring, Brake

$13.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-0105

Washer, Spring, .401 x .870 x .063

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 8

0

26

Cub Cadet 736-04256

Washer, Flat, .39 x .87 x .06

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 918-04438C

Drive Spindle Assembly

$223.99

$

In Stock, Qty 9

0

28

Cub Cadet 738-04166

Spacer, Shoulder, .5000 x .1475

$6.49

$

In Stock, Qty 8

0

29

Cub Cadet 747-04635A

Belt Keeper Rod

$49.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 747-05571

Coupling Link, 3/16

$25.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 747-04678A

Brake Spring Mounting Rod

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 954-04145A

V Belt. 4L 64.2

$39.99

$

In Stock, Qty 20+

0

33

Cub Cadet 756-04129B

Idler Pulley, 4.25 DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

34

Cub Cadet 756-04258

Flat Sheave, DIA 7.75

$65.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 756-04260

Engine Pulley, 3.20 x 4.35 DIA

$93.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 756-04280A

Idler Pulley, 3.50 DIA

$39.99

$

In Stock, only 3 left!

0

37

Cub Cadet 787-01469B-0637

Lower Shaft Lever

$47.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 787-01470A-0637

Upper Shaft Lever

$56.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 787-01473A

Belt Keeper, .375 x 2.00

Variations

Cub Cadet 787-01473A-0637

KEEPER-BELT - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$20.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 787-01523A

Wheel Drive Idler Bracket

Variations

Cub Cadet 787-01523A-0637

USE 787-01523A BRACKET-IDLER - POWDER BLACK (0637)

$11.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 918-04439C

Spacer Spindle Assembly

$204.99

$

In Stock, only 4 left!

0

42

Cub Cadet 931-04244

Chute Deflector Assembly

$70.99

$

In Stock, Qty 20+

0

43

Cub Cadet 631-04252

Mulch Cover

$33.99

$

In Stock, only 2 left!

0

44

Cub Cadet 987-02420

Idler Arm Assembly

$75.99

$

In Stock, only 4 left!

0

45

Cub Cadet 687-02476-4021

Deck Assembly

$421.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 710-1260A

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 710-0514

Hex Head Cap Screw, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 710-0560

Screw, Carriage, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 11

0

50

Cub Cadet 710-3184A

Hex Head Cap Screw, 3/8-16 x 2.00

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

52

Cub Cadet 912-3017

Hex Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 732-04406

Extension Spring, Timing Belt

$10.99

$

In Stock, only 1 left!

0

54

Cub Cadet 732-04452

Extension Spring, Deck Brake

$9.49

$

In Stock, Qty 9

0

55

Cub Cadet 938-0347

Shoulder Spacer, .625 ID x .169

$10.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-04162C

Shoulder Spacer, .8840 x .190

$13.99

$

In Stock, Qty 20+

0

57

Cub Cadet 942-04154A

2 in 1 Blade

$20.99

$

In Stock, Qty 20+

0

58

Cub Cadet 754-04136

Timing Belt, .315 x .787

$73.99

$

In Stock, Qty 20+

0

59

Cub Cadet 954-04139

Aramid V Belt, 72.2

$36.99

$

In Stock, only 4 left!

0

60

Cub Cadet 756-04129B

Idler Pulley, 4.25" DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

61

Cub Cadet 756-0616

Idler Pulley, V-Type, 5.0 DIA

$76.99

$

In Stock, only 1 left!

0

62

Cub Cadet 787-01440-0637

Timing Idler Bracket

$19.99

$

In Stock, Qty 10

0

63

Cub Cadet 711-04027

Deflector Pin

$14.99

$

In Stock, only 1 left!

0

64

Cub Cadet 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

65

Cub Cadet 732-04012

Deflector Torsion Spring

$12.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 787-01017A-0637

Deflector Hinge Bracket

$41.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 634-04349-0931

Wheel, 16 x 4 x 8

$190.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 710-05339

Screw, 5/16-24 x .750
(Superseded to 710-05339A)

$4.49

$

In Stock, Qty 20+

0

69

Cub Cadet 750-05516

Spacer, 1.0 x 1.28 x .31 (420CC)

$28.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

71

Cub Cadet 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

72

Cub Cadet 736-0225

Washer, Lock, 5/8

$4.49

$

In Stock, only 2 left!

0

73

Cub Cadet 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

Cub Cadet 977S30145

Danger Label

Note: (Not Shown)

$10.99

$

In Stock, only 1 left!

0
