CC 760 ES (12AE764N010) - Cub Cadet Walk-Behind Mower (2010) Transmission Parts Diagram

Walk-Behind Mower

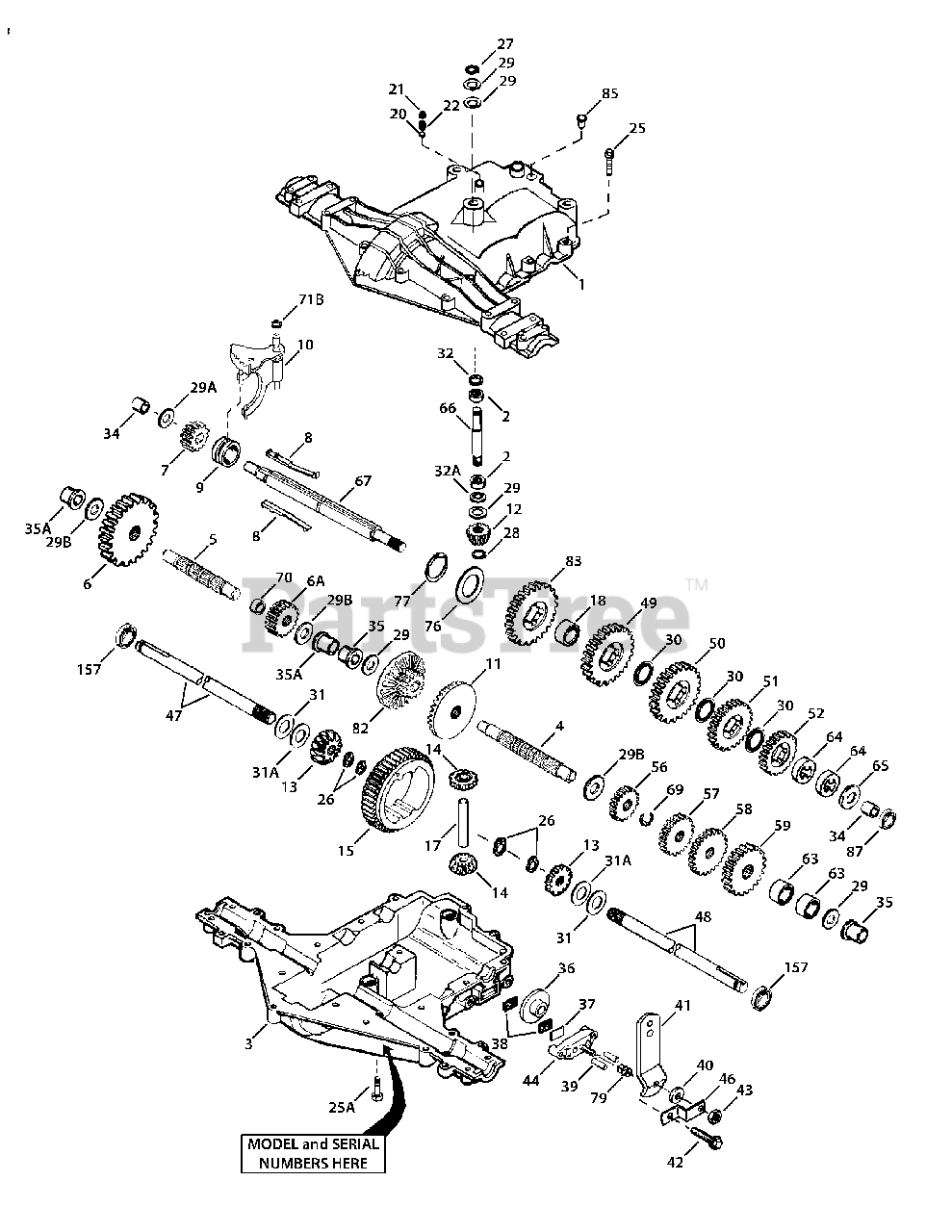

Transmission Parts Diagram

  • Title
1

Cub Cadet TC-772147

Transaxle Cover
(Superseded to TC-772157A)

$194.99

$

Usually ships in 3-6 days

0

2

Cub Cadet TC-780086A

Needle Bearing (1/2" long)
(Superseded to TC-780086)

$12.99

$

In Stock, Qty 20+

0

3

Cub Cadet TC-770128A

Transaxle Case
(Superseded to TC-770148A)

$157.99

$

Usually ships in 3-6 days

0

4

Cub Cadet TC-776395

Countershaft

$25.99

$

In Stock, only 1 left!

0

5

Cub Cadet TC-776409

Output Shaft

$27.99

$

Usually ships in 3-12 days

0

6

Cub Cadet TC-778364

Spur Gear (38T-PM/SER)

$33.99

$

Usually ships in 3-12 days

0

6A

Cub Cadet TC-778369

Spur Gear (15T-PM/SER)

$

$

Not available

7

Cub Cadet TC-778330

Spur Gear (11T-PM/SER)

$22.99

$

Usually ships in 3-12 days

0

8

Cub Cadet TC-792180A

Shift Key Set (Qty. 2)

$26.99

$

Usually ships in 3-12 days

0

9

Cub Cadet TC-784352

Shift Collar

$17.99

$

In Stock, only 2 left!

0

10

Cub Cadet TC-784378

Shift Rod & Fork Assembly
(Superseded to TC-784378A)

$

$

Not available

11

Cub Cadet TC-778334

Bevel Gear (30T-PM)

$25.99

$

Usually ships in 3-12 days

0

12

Cub Cadet TC-778309

Input Bevel Pinion (13T-PM)

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet TC-778368

Bevel Gear 13T (Incl. ref. 13 & 14)

$48.99

$

Usually ships in 3-12 days

0

14

Cub Cadet TC-778368

Bevel Gear 13T (Incl. ref. 13 & 14)

$48.99

$

Usually ships in 3-12 days

0

15

Cub Cadet TC-778370

Ring Gear (43T)

$49.99

$

Usually ships in 3-12 days

0

17

$31.99

$

Usually ships in 3-12 days

0

18

Cub Cadet TC-786102

Spacer (1.130" x .695")

$14.99

$

Usually ships in 3-12 days

0

20

Cub Cadet TC-792077A

Ball (Stainless Steel 5/16" dia.)

$4.49

$

In Stock, only 3 left!

0

21

Cub Cadet TC-792211

Screw, 3/8-16 x 3/8"

$4.49

$

Usually ships in 3-12 days

0

$4.49

$

In Stock, only 1 left!

0

25

Cub Cadet TC-792073A

Screw, 1/4-20 x 1-1/.4"

$1.99

$

Usually ships in 3-12 days

0

25A

Cub Cadet TC-792177

Screw, 1/4-20 x 1-3/8"

$4.49

$

Usually ships in 3-12 days

0

26

Cub Cadet TC-792125

Retaining Ring

$4.49

$

In Stock, only 3 left!

0

27

Cub Cadet TC-792035

Retaining Ring

$4.49

$

In Stock, Qty 13

0

28

Cub Cadet TC-788040

Retaining Ring

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet TC-780072

Washer .627" ID .031"

$4.49

$

In Stock, Qty 20+

0

29A

Cub Cadet TC-780160

Thrust Washer (.563 ID x .031"

$4.49

$

Usually ships in 3-12 days

0

29B

Cub Cadet TC-780051

Thrust Washer (.762 ID X .031"

$4.49

$

Usually ships in 3-12 days

0

30

Cub Cadet TC-780108

Shift Washer (Cupped)

$4.49

$

In Stock, Qty 9

0

31

Cub Cadet TC-780001

Washer .750" ID .56"

$4.49

$

In Stock, only 4 left!

0

31A

Cub Cadet TC-780195

Washer .750" ID .062"

$3.99

$

Usually ships in 3-12 days

0

32

Cub Cadet TC-788083

Oil Seal 5/8"

$15.99

$

Usually ships in 3-12 days

0

32A

Cub Cadet TC-792001

O Ring (.823" OD)

$4.49

$

In Stock, Qty 9

0

34

Cub Cadet TC-780194

Bushing (.563")

$4.49

$

Usually ships in 3-12 days

0

35

Cub Cadet TC-780193

Flanged Bushing (.625" ID)
(Superseded to TC-780210)

$5.49

$

Usually ships in 3-6 days

0

35A

Cub Cadet TC-780197

Flanged Bushing (.751" ID)

$4.49

$

Usually ships in 3-12 days

0

36

Cub Cadet TC-790075

Brake Disk

$10.99

$

Usually ships in 3-12 days

0

37

Cub Cadet TC-790007

Brake Pad Plate

$5.99

$

Usually ships in 3-12 days

0

38

Cub Cadet TC-799021A

Brake Pad
(Superseded to TC-799021)

$10.99

$

In Stock, only 1 left!

0

39

Cub Cadet TC-786026

Dowel Pin .3125" x .750"

$4.49

$

Usually ships in 3-12 days

0

40

Cub Cadet TC-792076A

Washer .312" ID .059"
(Superseded to 736-3078)

$4.49

$

In Stock, Qty 20+

0

41

Cub Cadet TC-790104

Brake Lever

$17.99

$

Usually ships in 3-12 days

0

42

Cub Cadet TC-792177

Screw 1/4-20 x 1-3/8"

$4.49

$

Usually ships in 3-12 days

0

43

Cub Cadet TC-792075

Lock Nut 5/16-24
(Superseded to 912-0237)

$

$

Not available

44

Cub Cadet TC-790025

Brake Pad Holder

$17.99

$

Usually ships in 3-12 days

0

46

$6.49

$

Usually ships in 3-12 days

0

47

Cub Cadet TC-775146

Axle (10.719" long) (Incl. 26)

$

$

Not available

48

Cub Cadet TC-775147

Axle (15.312" long) (Incl. 26)

$

$

Not available

49

Cub Cadet TC-778338

Spur Gear (27T-PM/IC)

$20.99

$

Usually ships in 3-12 days

0

50

Cub Cadet TC-778342

Spur Gear (22T-PM/IC)

$

$

Not available

51

Cub Cadet TC-778313

Spur Gear (19T-PM/IC)

$15.99

$

Usually ships in 3-12 days

0

52

Cub Cadet TC-778350

Spur Gear (16T-PM/IC)

$26.99

$

Usually ships in 3-12 days

0

56

Cub Cadet TC-778337

Spur Gear (13T-PM/SER)

$8.49

$

Usually ships in 3-12 days

0

57

Cub Cadet TC-778341

Spur Gear (18T-PM/SER)

$

$

Not available

58

Cub Cadet TC-778351

Spur Gear (21T-PM/SER)

$66.99

$

Usually ships in 3-12 days

0

59

Cub Cadet TC-778349

Spur Gear (24T-PM/SER)

$44.99

$

In Stock, only 1 left!

0

63

Cub Cadet TC-786071

Countershaft Spacer 1-1/8" x 3/8

$4.49

$

In Stock, only 2 left!

0

64

Cub Cadet TC-786072

Brake Shaft Spacer 1-3/8" x 3/8

$4.49

$

In Stock, only 1 left!

0

65

Cub Cadet TC-780189

Washer .563" ID .062

$4.49

$

Usually ships in 3-12 days

0

66

Cub Cadet TC-776472

Input Shaft

$

$

Not available

67

Cub Cadet TC-776396

Brake Shaft

$86.99

$

Usually ships in 3-12 days

0

69

Cub Cadet TC-792170

Retaining Ring (.75" x .042")

$

$

Not available

70

Cub Cadet TC-786187

Spacer (.890")

$

$

Not available

71B

$

$

Not available

76

Cub Cadet TC-780090

Flat Washer (1.128" ID x .058")

$4.49

$

In Stock, Qty 7

0

77

Cub Cadet TC-788078A

Retaining Ring (1.125" x .050")

$4.49

$

Usually ships in 3-12 days

0

$4.49

$

In Stock, only 1 left!

0

82

Cub Cadet TC-778333

Bevel (30T) & Spur Gear

$43.99

$

Usually ships in 3-12 days

0

83

Cub Cadet TC-778338

Spur Gear (27T-PM/IC)

$20.99

$

Usually ships in 3-12 days

0

85

Cub Cadet TC-792154

Oil Fill Plug

$4.49

$

In Stock, only 2 left!

0

87

Cub Cadet TC-788089A

Oil Seal 9/16" ID

$4.99

$

In Stock, only 1 left!

0

157

Cub Cadet TC-788088A

Oil Seal 3/4" ID

$6.49

$

Usually ships in 3-12 days

0
