CC 760 (12A-764M010) - Cub Cadet Walk-Behind Mower (2010) General Assembly CC760 Parts Diagram

Walk-Behind Mower

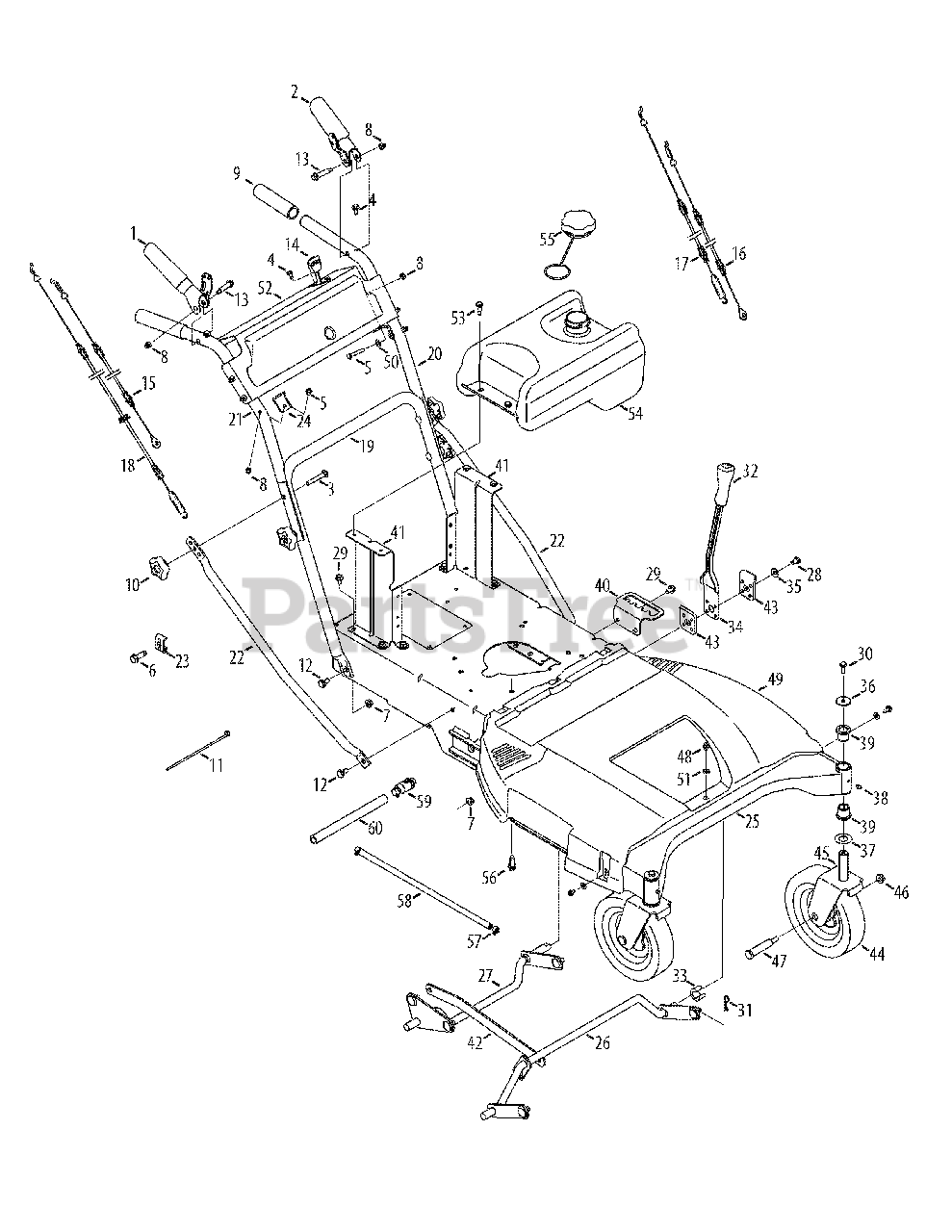

General Assembly CC760 Parts Diagram

  • Title

1

Cub Cadet 687-02426

RH Lever Assembly Bracket
(Superseded to 687P02426C)

$28.99

$

In Stock, only 1 left!

0

2

Cub Cadet 687-02427

LH Lever Assembly Bracket
(Superseded to 687P02427C)

$28.99

$

In Stock, only 1 left!

0

3

Cub Cadet 710-0572

Screw, Carriage, 5/16-18 x 2.25

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 710-0599

Screw, 1/4-20 x 0.500

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

6

Cub Cadet 710-1237

Screw, #10-32 x 0.625

$4.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 712-04063

Nut, Flangelock, 5/16-18

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 912-0442

Lock Nut Cap, 1/4-20
(Superseded to 712-0442)

$

$

Not available

9

Cub Cadet 720-0274

Grip, 1.0 ID x 5.0 LG

$11.99

$

In Stock, Qty 11

0

10

Cub Cadet 720-04072A

Star Knob, 5/16-18

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 938-0140

Screw, Shoulder, .435 x .178-5/16 x .56
(Superseded to 738-0140)

$

$

Not available

13

Cub Cadet 938-1226

Screw, Shoulder, .375 x 1.355 x 1/4-20

$7.99

$

In Stock, only 1 left!

0

14

Cub Cadet 946-04604

Throttle/Choke Cable, 38.0 x 1.1 EXT

$42.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 946-04606

RH Brake Cable
(Superseded to 946-05076A)

$36.99

$

In Stock, only 1 left!

0

16

Cub Cadet 946-04608

LH Brake Cable
(Superseded to 946-05077A)

$36.99

$

In Stock, Qty 20+

0

17

Cub Cadet 946-04609

Wheel Clutch Cable
(Superseded to 753-08265A)

$59.99

$

In Stock, Qty 20+

0

18

Cub Cadet 946-04610

Deck Clutch Cable
(Superseded to 753-08266)

$44.99

$

In Stock, Qty 6

0

19

Cub Cadet 749-04330-0637

Lower Handle

$84.99

$

In Stock, only 1 left!

0

20

Cub Cadet 749-04331-0637

Upper LH Handle

$

$

Not available

21

Cub Cadet 749-04332-0637

Upper RH Handle

$52.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 749-04333-0637

Adjustable Handle Brace

$46.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

24

Cub Cadet 787-01490A-0637

RH Cable Mount Bracket

$10.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 787-01491A-0637

LH Cable Mount Bracket

$19.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 687-02255B-4021

Frame Assembly
(Superseded to 687-02591C-4021)

$447.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02265-0637

Front Deck Lift Assembly

$59.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 687-02419-0637

Rear Deck Lift Assembly

$68.99

$

In Stock, only 1 left!

0

28

Cub Cadet 710-04312

Hex Screw, 5/16-18 x .50

$7.49

$

In Stock, only 1 left!

0

29

Cub Cadet 710-0604A

Screw, 5/16-18 x 0.625

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0627

Hex Screw, 5/16-24 x .750

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 914-0145

Click Pin, .092 x 1.64 LG
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

32

Cub Cadet 720-0311

Grip Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

33

Cub Cadet 731-05791

Plastic Spacer, .63 ID x .75 LG

$5.99

$

In Stock, only 2 left!

0

34

Cub Cadet 732-04418A

Deck Height Lever
(Superseded to 732-04418C)

$45.99

$

In Stock, only 1 left!

0

35

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

36

Cub Cadet 736-0343

Washer, Flat, .330 x 1.25 x .120

$4.49

$

In Stock, Qty 7

0

37

Cub Cadet 936-0351

Washer, Flat, .760 ID x 1.50 OD
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

38

Cub Cadet 937-3000

Drive Lube Fitting, 3/16

$4.99

$

In Stock, Qty 20+

0

39

Cub Cadet 741-0660A

Flange Bearing, .760 x .941 x 1.0

$3.49

$

In Stock, Qty 20+

0

40

Cub Cadet 787-01496-4021

Height Adjustment Bracket

$19.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 787-01507-4021

Fuel Tank Mount Bracket
(Superseded to 787-01507B-4021)

$20.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 787-01510-0637

Link Pivot Bracket

$39.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 787-01521-0637

Lever Pivot Bracket
(Superseded to 787-06323-0637)

$9.49

$

Usually ships in 3-6 days

0

44

Cub Cadet 734-04263

Caster, Wheel, 8 x 1.75

$54.99

$

In Stock, Qty 12

0

44

Cub Cadet 941-0706

Bearing, Flange w/ftg

$8.49

$

In Stock, Qty 7

0

45

Cub Cadet 687-02263-4021

Wheel Caster Bracket

$83.99

$

In Stock, only 2 left!

0

46

Cub Cadet 712-04065

Nut, Flangelock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

47

Cub Cadet 738-04216A

Bolt, Shoulder, .625 x 2.515 x 3/8-16

$8.49

$

In Stock, Qty 9

0

48

Cub Cadet 710-0896

Screw, 1/4-14 x 0.625

$4.49

$

In Stock, Qty 20+

0

49

Cub Cadet 931-05684

Belt Cover

$121.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 736-0270

Washer, Bell, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

51

Cub Cadet 936-0463

Washer, Flat, .25 x .630 x .0515
(Superseded to 736-0463)

$4.49

$

In Stock, Qty 12

0

52

Cub Cadet 787-01540-4021

Handle Panel

$53.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 938-1225

Screw, Shoulder, .3175 x .188, 1/4-20
(Superseded to 738-1225)

$

$

Not available

54

Cub Cadet 951-10480

Fuel Tank

$124.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 951-10514

Fuel Cap

$37.99

$

In Stock, only 1 left!

0

56

Cub Cadet 710-1315

Screw, 3/8-16 x 1.250

$4.49

$

In Stock, only 2 left!

0

57

Cub Cadet 726-0205

Hose Clamp, .490 DIA.

$3.99

$

In Stock, Qty 18

0

58

Cub Cadet 751-10349

Fuel Hose, Low Permeation, 1/4

$9.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-10517A

Oil Drain

$24.99

$

In Stock, only 3 left!

0

60

Cub Cadet 751-3141-14

Extension Hose

$11.99

$

In Stock, Qty 8

0
