CC 760 (12A-764M010) - Cub Cadet Walk-Behind Mower (2010) BS-215802-2578-B2 Engine 3 Parts Diagram

Walk-Behind Mower

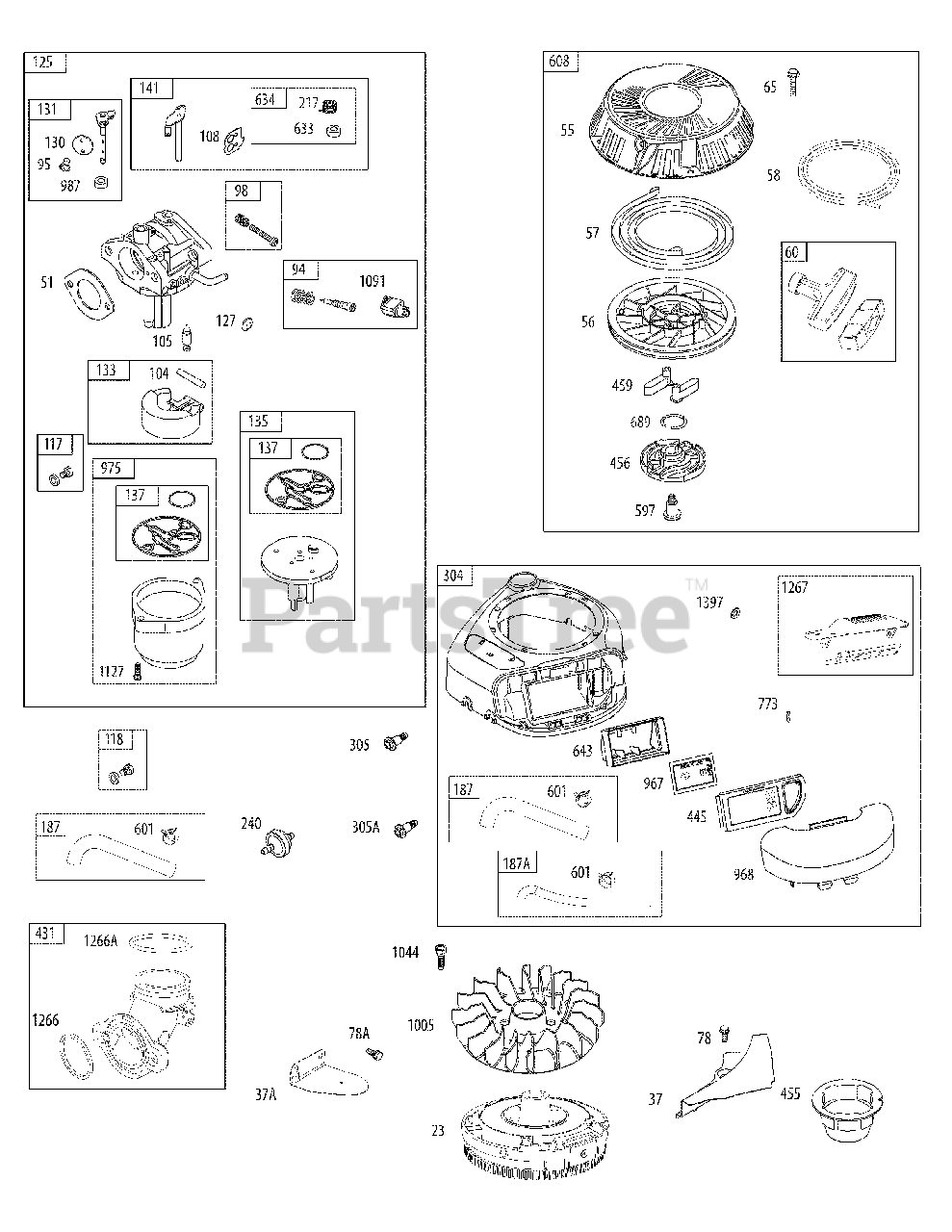

BS-215802-2578-B2 Engine 3 Parts Diagram

  • Title

1

Cub Cadet BS-697377

Cylinder Assembly

$471.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-399265

Kit-Bushing/Seal (Magneto Side)
(Superseded to BS-797673)

$18.99

$

In Stock, Qty 8

0

3

Cub Cadet BS-391086S

Seal-Oil (Magneto Side)

$6.49

$

In Stock, Qty 20+

0

4

Cub Cadet BS-697106

Sump-Engine

$308.99

$

Usually ships in 2-12 days

0

5

Cub Cadet BS-796183

Head-Cylinder

$302.99

$

In Stock, only 1 left!

0

7

Cub Cadet BS-273280S

Gasket-Cylinder Head

$10.99

$

In Stock, Qty 20+

0

9

Cub Cadet BS-697109

Gasket-Breather

$7.99

$

Usually ships in 2-12 days

0

10

Cub Cadet BS-697157

Screw (Breather Assembly)

$3.99

$

Usually ships in 2-12 days

0

11

Cub Cadet BS-794683

Tube-Breather

$7.99

$

In Stock, Qty 20+

0

12

Cub Cadet BS-697110

Gasket-Crankcase

$7.49

$

In Stock, Qty 20+

0

13

Cub Cadet BS-690360

Screw (Cylinder Head)
(Superseded to BS-84001963)

$3.49

$

Usually ships in 3-6 days

0

15

Cub Cadet BS-690946

Plug-Oil Drain

$5.99

$

In Stock, Qty 14

0

16

Cub Cadet BS-796146

Crankshaft

$282.99

$

Usually ships in 2-12 days

0

20

Cub Cadet BS-795387

Seal-Oil (PTO Side)

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet BS-692125

Screw (Crankcase Cover/Sump)

$4.99

$

In Stock, only 4 left!

0

23

Cub Cadet BS-693555

Flywheel

$

$

Not available

24

Cub Cadet BS-222698S

Key-Flywheel

$2.99

$

In Stock, Qty 20+

0

25

Cub Cadet BS-797009

Piston Assembly (Standard)

$179.99

$

Usually ships in 2-12 days

0

25

Cub Cadet BS-797010

Piston Assembly (.020" Oversize)

$282.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-797011

Ring Set (Standard)

$57.99

$

Usually ships in 2-12 days

0

26

Cub Cadet BS-797012

Ring Set (.020" Oversize)

$

$

Not available

27

Cub Cadet BS-698469

Lock-Piston Pin

$4.99

$

In Stock, Qty 13

0

28

Cub Cadet BS-797013

Pin-Piston

$

$

Not available

29

Cub Cadet BS-791633

Rod-Connecting

$79.99

$

In Stock, only 1 left!

0

32

Cub Cadet BS-791118

Screw (Connecting Rod)

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet BS-791934

Valve-Exhaust
(Superseded to BS-792868)

$35.99

$

Usually ships in 2-12 days

0

34

Cub Cadet BS-791935

Valve-Intake

$27.99

$

Usually ships in 2-12 days

0

35

Cub Cadet BS-691279

Spring-Valve (Intake)

$5.99

$

In Stock, Qty 10

0

36

Cub Cadet BS-691279

Spring-Valve (Exhaust)

$5.99

$

In Stock, Qty 10

0

37

Cub Cadet BS-697352

Guard-Flywheel

$10.99

$

In Stock, only 2 left!

0

37A

Cub Cadet BS-697626

Guard-Flywheel

$11.99

$

In Stock, only 1 left!

0

40

Cub Cadet BS-690964

Retainer-Valve
(Superseded to BS-499586)

$7.49

$

In Stock, Qty 18

0

42

Cub Cadet BS-499586

Keeper-Valve

$7.49

$

In Stock, Qty 18

0

43

Cub Cadet BS-691968

Slinger-Governor/Oil

$37.99

$

In Stock, Qty 20+

0

45

Cub Cadet BS-690564

Tappet-Valve

$9.99

$

In Stock, Qty 20+

0

46

Cub Cadet BS-793880

Camshaft
(Superseded to BS-84005207)

$157.99

$

Usually ships in 3-6 days

0

48

Cub Cadet BS-697740

Short Block

$439.99

$

Usually ships in 2-12 days

0

50

Cub Cadet BS-796188

Manifold-Intake
(Superseded to BS-592845)

$61.99

$

In Stock, Qty 5

0

51

Cub Cadet BS-692137

Gasket-Intake

$3.49

$

In Stock, Qty 20+

0

51A

Cub Cadet BS-794312

Gasket-Intake

$3.99

$

In Stock, only 4 left!

0

53

Cub Cadet BS-690227

Stud (Carburetor)

$7.99

$

In Stock, Qty 6

0

54

Cub Cadet BS-691148

Screw (Intake Manifold)

$3.99

$

In Stock, only 2 left!

0

55

Cub Cadet BS-695130

Housing-Rewind Starter

$

$

Not available

56

Cub Cadet BS-695129

Pulley-Starter

$29.99

$

In Stock, Qty 7

0

57

Cub Cadet BS-695131

Spring-Rewind Starter

$17.99

$

In Stock, only 1 left!

0

58

Cub Cadet BS-695132

Rope-Starter

$8.49

$

In Stock, only 1 left!

0

60

Cub Cadet BS-493926

Grip-Starter Rope

$

$

Not available

65

Cub Cadet BS-690759

Screw (Rewind Starter)

$3.49

$

In Stock, Qty 20+

0

78

Cub Cadet BS-691003

Screw (Flywheel Guard) (10/24x.43)

$3.49

$

In Stock, Qty 9

0

78A

Cub Cadet BS-94811

Screw (Flywheel Guard) (5/16-18x.37)
(Superseded to BS-690364)

$

$

Not available

81

Cub Cadet BS-691178

Lock-Muffler Screw

$5.49

$

In Stock, Qty 9

0

94

Cub Cadet BS-793610

Kit-Idle Mixture

$20.99

$

In Stock, only 2 left!

0

95

Cub Cadet BS-690718

Screw (Throttle Valve)

$5.99

$

Usually ships in 2-12 days

0

98

Cub Cadet BS-695408

Kit-Idle Speed

$13.99

$

In Stock, only 1 left!

0

104

Cub Cadet BS-694918

Pin-Float Hinge

$7.49

$

In Stock, only 2 left!

0

105

Cub Cadet BS-696136

Valve-Float Needle

$15.99

$

In Stock, Qty 20+

0

108

Cub Cadet BS-698773

Valve-Choke

$8.99

$

Usually ships in 2-12 days

0

117

Cub Cadet BS-796079

Jet-Main (Standard)
(Superseded to BS-591936)

$17.99

$

In Stock, only 2 left!

0

118

Cub Cadet BS-796332

Jet-Main (High Altitude)
(Superseded to BS-796080)

$18.99

$

In Stock, only 1 left!

0

121

Cub Cadet BS-796184

Kit-Carburetor Overhaul

$63.99

$

In Stock, Qty 19

0

125

Cub Cadet BS-794653

Carburetor
(Superseded to BS-593432)

$137.99

$

In Stock, Qty 20+

0

127

Cub Cadet BS-690727

Plug-Welch

$4.49

$

In Stock, only 2 left!

0

130

Cub Cadet BS-698774

Valve-Throttle

$8.49

$

Usually ships in 2-12 days

0

131

Cub Cadet BS-698776

Kit-Throttle Shaft

$39.99

$

In Stock, only 1 left!

0

133

Cub Cadet BS-694914

Float-Carburetor

$28.99

$

In Stock, Qty 8

0

135

Cub Cadet BS-698780

Tube-Fuel Transfer

$95.99

$

In Stock, only 3 left!

0

137

Cub Cadet BS-698781

Gasket-Float Bowl

$9.99

$

In Stock, Qty 20+

0

141

Cub Cadet BS-698778

Kit-Choke Shaft

$32.99

$

In Stock, only 1 left!

0

146

Cub Cadet BS-691639

Key-Timing

$4.49

$

In Stock, Qty 5

0

187

Cub Cadet BS-791805

Line-Fuel (Cut to required length)

$24.99

$

Usually ships in 2-12 days

0

187A

Cub Cadet BS-791744

Line-Fuel (Formed)

$14.99

$

In Stock, only 1 left!

0

188

Cub Cadet BS-691693

Screw (Control Bracket)

$3.99

$

In Stock, Qty 8

0

192

Cub Cadet BS-691986

Adjuster-Rocker Arm

$11.99

$

In Stock, Qty 18

0

202

Cub Cadet BS-691841

Link-Mechanical Governor

$9.49

$

In Stock, Qty 13

0

209

Cub Cadet BS-792813

Spring-Governor (Brown)

$6.99

$

In Stock, only 3 left!

0

216

Cub Cadet BS-691840

Link-Governor

$8.99

$

In Stock, Qty 19

0

217

Cub Cadet BS-695409

Spring-Choke Return

$8.99

$

In Stock, only 1 left!

0

222

Cub Cadet BS-694042

Bracket-Control
(Superseded to BS-597209)

$38.99

$

In Stock, Qty 20+

0

227

Cub Cadet BS-691374

Lever-Governor Control

$26.99

$

In Stock, only 2 left!

0

232

Cub Cadet BS-691842

Spring-Governor Link

$11.99

$

In Stock, Qty 20+

0

238

Cub Cadet BS-691843

Cap-Valve

$8.49

$

In Stock, Qty 20+

0

240

Cub Cadet BS-394358S

Filter-Fuel

$5.99

$

In Stock, Qty 20+

0

265

Cub Cadet BS-691024

Clamp-Casing

$3.99

$

In Stock, Qty 6

0

267

Cub Cadet BS-794904

Screw (Casing Clamp)

$3.49

$

In Stock, only 1 left!

0

300

Cub Cadet BS-796000

Muffler

$96.99

$

In Stock, only 2 left!

0

304

Cub Cadet BS-796414

Housing-Blower
(Superseded to BS-591906)

$166.99

$

In Stock, only 2 left!

0

305

Cub Cadet BS-697102

Screw (Blower Housing) (Long)

$3.99

$

In Stock, only 2 left!

0

305A

Cub Cadet BS-793376

Screw (Blower Housing) (Short)
(Superseded to BS-799370)

$3.99

$

In Stock, Qty 6

0

306

Cub Cadet BS-697359

Shield-Cylinder

$

$

Not available

307

Cub Cadet BS-691003

Screw (Cylinder Shield)

$3.49

$

In Stock, Qty 9

0

333

Cub Cadet BS-795315

Armature-Magneto
(Superseded to BS-595304)

$45.99

$

In Stock, Qty 20+

0

334

Cub Cadet BS-691061

Screw (Magneto Armature)

$3.49

$

In Stock, Qty 20+

0

337

Cub Cadet 759-3336

Plug-Spark
(Superseded to RC12YC)

$4.49

$

In Stock, Qty 20+

0

356

Cub Cadet BS-398808

Wire-Stop

$11.99

$

In Stock, only 1 left!

0

358

Cub Cadet BS-796181

Gasket Set-Engine

$94.99

$

Usually ships in 2-12 days

0

359

Cub Cadet BS-691077

Washer (Ground Terminal)

$3.49

$

In Stock, only 2 left!

0

373

Cub Cadet BS-691612

Nut (Ground Terminal)

$3.49

$

In Stock, only 1 left!

0

404

Cub Cadet BS-691691

Washer (Governor Crank)

$3.99

$

In Stock, Qty 5

0

431

Cub Cadet BS-697122

Elbow-Intake

$24.99

$

In Stock, only 1 left!

0

445

Cub Cadet BS-698413

Filter-Air Cleaner Cartridge
(Superseded to BS-794421)

$16.99

$

In Stock, Qty 20+

0

455

Cub Cadet BS-695113

Cup-Flywheel

$15.99

$

In Stock, only 1 left!

0

456

Cub Cadet BS-695128

Plate-Pawl Friction

$12.99

$

In Stock, Qty 17

0

459

Cub Cadet BS-281505S

Pawl-Ratchet

$3.49

$

In Stock, Qty 9

0

505

Cub Cadet BS-691251

Nut (Governor Control Lever)

$3.49

$

In Stock, Qty 9

0

507

Cub Cadet BS-691972

Insulator

$8.49

$

In Stock, only 2 left!

0

520

Cub Cadet BS-691084

Terminal-Ground

$6.49

$

In Stock, only 1 left!

0

521

Cub Cadet BS-690581

Shield-Cable

$12.99

$

Usually ships in 2-12 days

0

523

Cub Cadet BS-699908

Dipstick

$14.99

$

In Stock, Qty 6

0

524

Cub Cadet BS-691032

Seal-Dipstick Tube

$5.99

$

In Stock, only 1 left!

0

525

Cub Cadet BS-697184

Tube-Dipstick

$26.99

$

In Stock, only 1 left!

0

552

Cub Cadet BS-697144

Bushing-Governor Crank

$9.49

$

Usually ships in 2-12 days

0

562

Cub Cadet BS-691119

Bolt (Governor Control Lever)

$4.49

$

In Stock, Qty 17

0

584

Cub Cadet BS-794682

Cover-Breather Passage

$9.49

$

In Stock, Qty 6

0

597

Cub Cadet BS-691696

Screw (Pawl Friction Plate)

$11.99

$

In Stock, Qty 5

0

601

Cub Cadet BS-791850

Hose-Clamp (Green)

$3.49

$

In Stock, Qty 20+

0

608

Cub Cadet BS-695058

Starter-Rewind
(Superseded to BS-591606)

$95.99

$

In Stock, Qty 20+

0

613

Cub Cadet BS-691416

Screw (Muffler) (Long)

$11.99

$

In Stock, Qty 12

0

613A

Cub Cadet BS-691678

Screw (Muffler) (Short)

$4.99

$

Usually ships in 2-12 days

0

614

Cub Cadet BS-93306

Pin-Cotter (Governor Crank)

$

$

Not available

616

Cub Cadet BS-692012

Crank-Governor

$13.99

$

In Stock, only 2 left!

0

617

Cub Cadet BS-692138

Seal-O Ring (Intake Manifold) (Red)

$5.49

$

In Stock, Qty 16

0

621

Cub Cadet BS-692310

Switch-Stop

$5.99

$

In Stock, Qty 20+

0

633

Cub Cadet BS-699813

Seal-Choke/Throttle Shaft (Choke Shaft)

$6.99

$

In Stock, only 1 left!

0

634

Cub Cadet BS-698779

Spring/Seal Assembly (Choke Shaft)

$8.99

$

In Stock, only 1 left!

0

635

Cub Cadet BS-691909

Boot-Spark Plug

$4.99

$

In Stock, Qty 5

0

643

Cub Cadet BS-697155

Retainer-Air Filter

$11.99

$

In Stock, only 1 left!

0

654

Cub Cadet BS-690958

Nut (Carburetor)

$3.49

$

In Stock, only 3 left!

0

689

Cub Cadet BS-691855

Spring-Friction

$4.49

$

In Stock, only 2 left!

0

691

Cub Cadet BS-692407

Seal-Governor Shaft

$7.99

$

In Stock, Qty 8

0

718

Cub Cadet BS-690959

Pin-Locating

$6.99

$

In Stock, only 1 left!

0

741

Cub Cadet BS-697128

Gear-Timing

$20.99

$

In Stock, only 1 left!

0

773

Cub Cadet BS-796448

Retainer

$4.99

$

In Stock, only 3 left!

0

823

Cub Cadet BS-698941

Screw (Muffler Adapter)

$6.99

$

In Stock, only 2 left!

0

830

Cub Cadet BS-691095

Stud-Rocker Arm

$7.99

$

In Stock, Qty 20+

0

842

Cub Cadet BS-691031

Seal-O Ring (Dipstick Tube)

$5.49

$

In Stock, Qty 20+

0

847

Cub Cadet BS-790442

Dipstick/Tube Assembly

$55.99

$

In Stock, only 1 left!

0

850

Cub Cadet N/A

Sealant-Liquid

$

$

Currently unavailable

851

Cub Cadet BS-692424

Terminal-Spark Plug

$5.99

$

In Stock, Qty 13

0

864

Cub Cadet BS-796002

Adapter-Muffler

$43.99

$

In Stock, Qty 6

0

868

Cub Cadet BS-690968

Seal-Valve

$10.99

$

In Stock, Qty 20+

0

883

Cub Cadet BS-692236

Gasket-Exhaust

$5.49

$

In Stock, Qty 20+

0

914

Cub Cadet BS-691108

Screw (Rocker Cover)

$3.49

$

In Stock, Qty 20+

0

967

Cub Cadet BS-697292

Filter-Pre Cleaner

$5.99

$

In Stock, Qty 16

0

968

Cub Cadet BS-697420

Cover-Air Cleaner

$41.99

$

In Stock, only 2 left!

0

975

Cub Cadet BS-698783

Bowl-Float

$30.99

$

Usually ships in 2-12 days

0

987

Cub Cadet BS-698777

Seal-Throttle Shaft

$

$

Not available

1005

Cub Cadet BS-796082

Fan-Flywheel
(Superseded to BS-796200)

$42.99

$

In Stock, only 2 left!

0

1022

Cub Cadet BS-272475S

Gasket-Rocker Cover

$6.49

$

In Stock, Qty 20+

0

1023

Cub Cadet BS-797421

Cover-Rocker

$35.99

$

In Stock, only 2 left!

0

1026

Cub Cadet BS-794573

Rod-Push (Exhaust)

$14.99

$

In Stock, Qty 10

0

1026

Cub Cadet BS-697394

Rod-Push (Intake)

$14.99

$

In Stock, Qty 17

0

1029

Cub Cadet BS-691751

Arm-Rocker

$9.49

$

Usually ships in 2-12 days

0

1034

Cub Cadet BS-690822

Guide-Push Rod

$9.49

$

In Stock, only 3 left!

0

1036

Cub Cadet N/A

Label-Emissions

Note: Available from a Briggs & Stratton

$

$

Currently unavailable

1044

Cub Cadet BS-698139

Screw (Flywheel)

$5.99

$

In Stock, Qty 7

0

1091

Cub Cadet BS-691333

Cap-Limiter

$9.49

$

In Stock, only 1 left!

0

1095

Cub Cadet BS-796189

Gasket Set-Valve

$64.99

$

Usually ships in 2-12 days

0

1127

Cub Cadet BS-695407

Screw (Float Bowl)

$4.49

$

In Stock, Qty 20+

0

1263

Cub Cadet BS-697124

Reed-Breather

$7.49

$

In Stock, Qty 20+

0

1264

Cub Cadet BS-697104

Screw (Breather Reed)

$3.99

$

Usually ships in 2-12 days

0

1266

Cub Cadet BS-691917

Seal-O Ring (Intake Elbow) (Red)

$4.49

$

In Stock, Qty 20+

0

1266A

Cub Cadet BS-697123

Seal-O Ring (Intake Elbow) (Large)

$5.99

$

In Stock, Qty 19

0

1267

Cub Cadet BS-697419

Latch-Blower Housing

$17.99

$

In Stock, only 2 left!

0

1397

Cub Cadet BS-796449

Washer (Blower Housing)

$4.49

$

Usually ships in 2-12 days

0

1329

Cub Cadet BS-215802-0015

Replacement Engine

$996.99

$

Usually ships in 3-6 days

0
