CC 600 (12ACW62R756) - Cub Cadet Walk-Behind Mower (2017) Drive Assembly Parts Diagram

Walk-Behind Mower

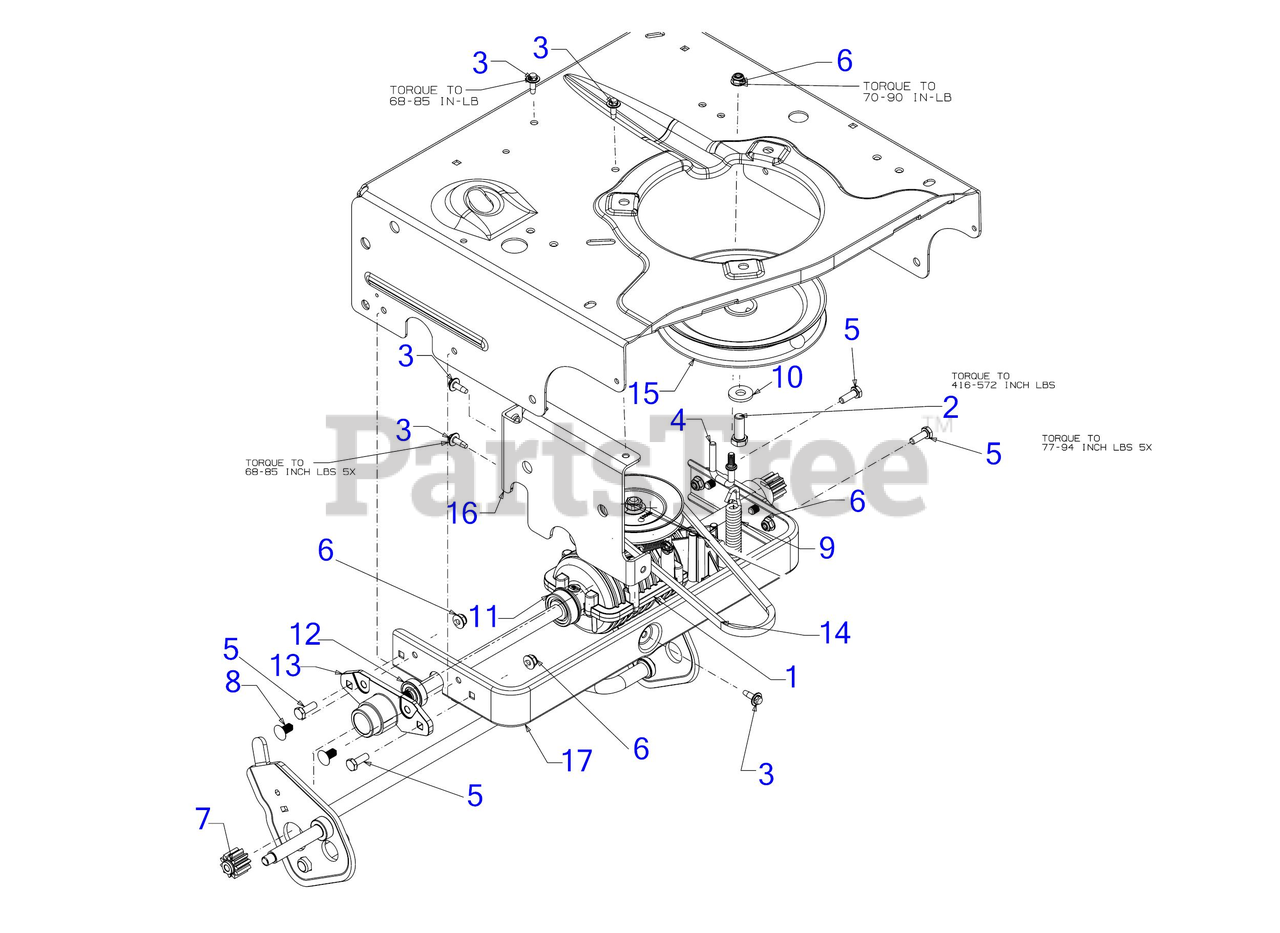

Drive Assembly Parts Diagram

  • Title

1

Cub Cadet 918-07163

TRANSMISSION

$374.99

$

In Stock, only 1 left!

0

2

Cub Cadet 710-0591

SCREW 3/8-24 x 1.00 GR5

$4.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 710-06534

EYE BOLT SPRING GUIDE 1/4-20

$11.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-3015

SCREW 1/4-20X.75 GR5

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 917-04852

SPUR GEAR 10T

$4.99

$

In Stock, only 2 left!

0

8

Cub Cadet 726-0465

RETAINER PAN CLIP

$4.99

$

In Stock, Qty 16

0

9

Cub Cadet 732-0716D

EXTENSION SPRING

$13.99

$

In Stock, only 1 left!

0

10

Cub Cadet 736-3072

WASHER

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 741-04362

ROLLER BEARING

$30.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 741-04430A

BALL BEARING

$6.49

$

In Stock, only 2 left!

0

13

Cub Cadet 948-05111A

DRIVE BEARING

$25.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 954-05090

BELT 3/8 x 24.68"

$27.99

$

In Stock, only 1 left!

0

15

Cub Cadet 756-05201

ENGINE PULLEY

$98.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 787-03454A-4021

TRANSMISSION SUPPORT BRACKET

$25.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 787-03588A-4021

AXLE BEARING SUPPORT PLATE

$24.99

$

Usually ships in 3-6 days

0
