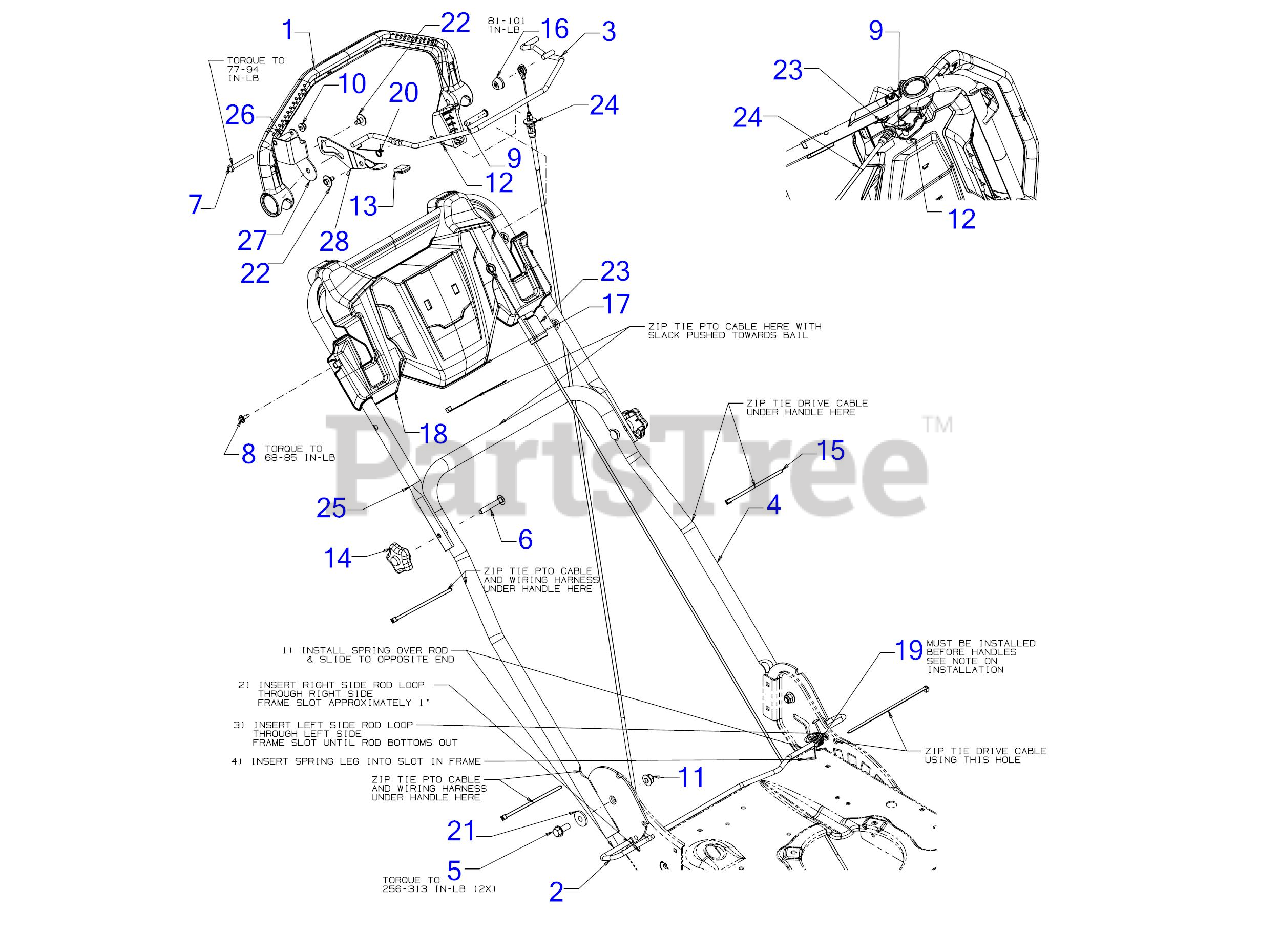

CC 600 (12ACW62R710) - Cub Cadet Walk-Behind Mower (2017) Handle Parts Diagram

Walk-Behind Mower

Handle Parts Diagram

  • Title
1

Cub Cadet 631-05388A

DRIVE HANDLE ASSEMBLY (YELLOW)
(Superseded to 631-05388B)

$92.99

$

In Stock, only 1 left!

0

2

Cub Cadet 647E05068A

PIVOT HANDLE ROD

$38.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 647-05077B-0637

PTO STRAIGHT HANDLE BAIL

$23.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 649-05069-0637

LOWER HANDLE ASSEMBLY

$67.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04482

SCREW 3/8-16 x .875 GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-04532

CARRIAGE BOLT 5/16-18 x 2.00 GR5

$6.49

$

In Stock, Qty 5

0

7

Cub Cadet 710-0501

SCREW 1/4-20 x 2 GR5

$7.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 711-04469A

CLEVIS PIN 3/8 x 1.87

$5.99

$

In Stock, only 3 left!

0

10

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

$4.49

$

In Stock, only 3 left!

0

14

Cub Cadet 720-05009

STAR KNOB- YELLOW

$4.99

$

In Stock, Qty 10

0

15

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 726-05084

PUSH CAP 0.3125

$4.49

$

In Stock, only 1 left!

0

17

Cub Cadet 931-10686

CONSOLE TRIM PIECE

$45.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 931-11886

HANDLE CONSOLE

$47.99

$

In Stock, only 1 left!

0

19

Cub Cadet 732-05444

TORSION SPRING .48 x .177

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 732-05466B

TORSION SPRING

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet 738-05191

SHOULDER SPACER .625 x .169

$3.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 738-05215

SHOULDER SCREW

$4.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 946-05245

DRIVE CABLE

$44.99

$

In Stock, only 4 left!

0

24

Cub Cadet 946-05250

CONTROL CABLE

$59.99

$

In Stock, only 4 left!

0

25

$43.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 750-04456

SPACER:.260 x .372 x 1.420

$7.49

$

In Stock, only 3 left!

0

27

Cub Cadet 787-03604A-0637

LOCK OUT PLATE BRACKET (POWDER BLACK)

$12.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 787-03605

LOCK OUT BRACKET

$20.99

$

Usually ships in 3-6 days

0
