CC 550 SP (12A-18J1710) - Cub Cadet Walk-Behind Mower (2012) 5P70MU Flywheel & Shroud Parts Diagram

Walk-Behind Mower

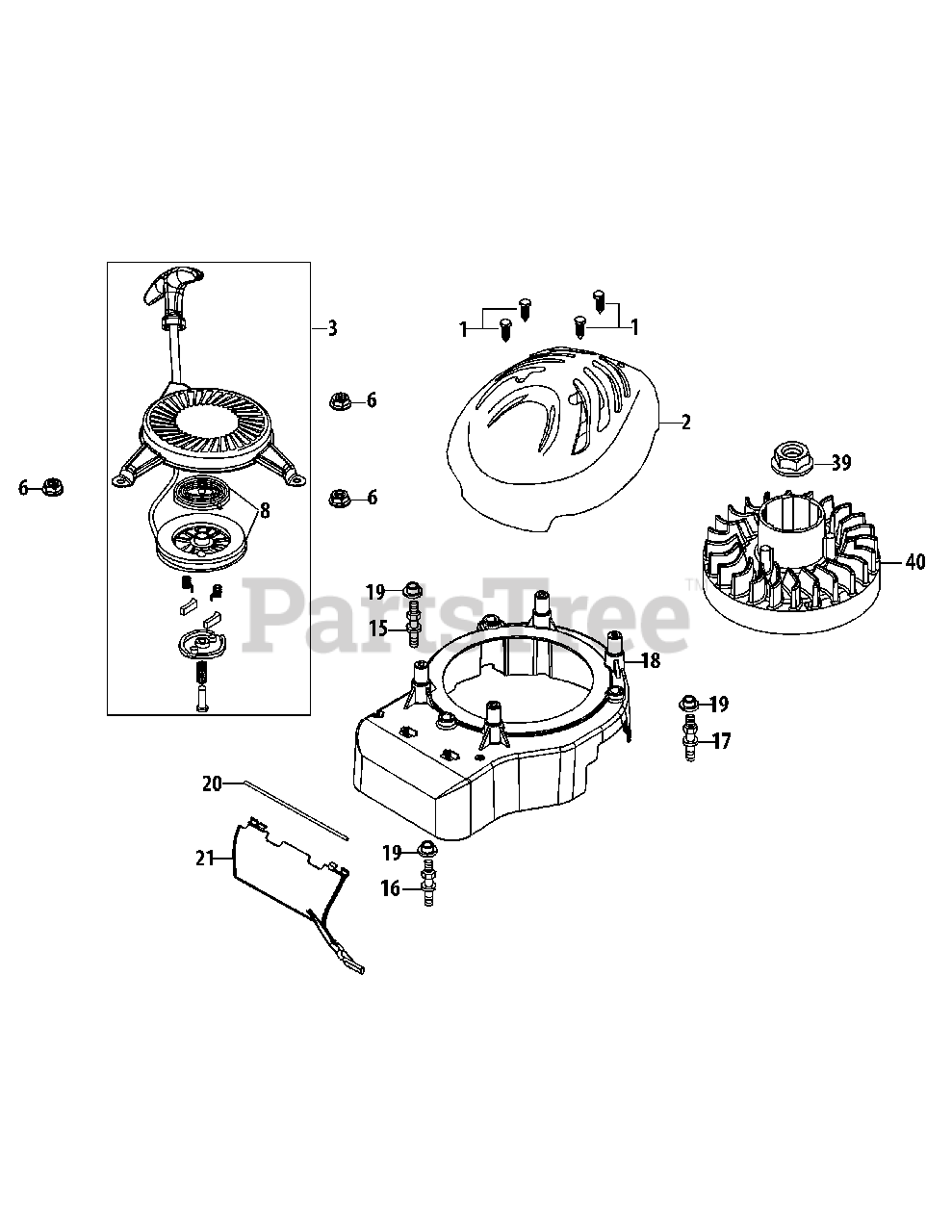

5P70MU Flywheel & Shroud Parts Diagram

  • Title

1

Cub Cadet 710-04744

Screw, Hilo #12-16 X 1.00"

$5.49

$

In Stock, Qty 11

0

2

Outer Shroud (Application Specific)

Note: see model breakdown

$

$

Not available

3

Cub Cadet 951-12683

Recoil Starter Assembly

$92.99

$

In Stock, only 4 left!

0

6

Cub Cadet 712-04212

Nut M6X10Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

8

Cub Cadet 951-11721

Recoil Spring & Pulley Assy

$46.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-04976

Stud Left/Black/Wh Zinc

$4.49

$

In Stock, Qty 9

0

16

Cub Cadet 710-04977

Stud Front/Unmarked/Wh Zinc

$4.49

$

In Stock, Qty 5

0

17

Cub Cadet 710-04978

Stud Right/White/Wh Zinc

$3.99

$

In Stock, only 4 left!

0

18

Cub Cadet 951-10764

Inner Shroud

$43.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-12869

Inner Shroud Assy (Incl.19)

$28.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05320

Engine Shroud Spacer

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 951-11610

Air Vane Shaft

$

$

Not available

21

Cub Cadet 951-11611

Air Vane

$8.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 712-04287

Flywheel Nut M14

$6.99

$

In Stock, only 1 left!

0

40

Cub Cadet 951-11046

Flywheel

$

$

Not available
