CC 550 ES (12AE18JA010) - Cub Cadet Walk-Behind Mower (2010) General Assembly CC550ES Parts Diagram

Walk-Behind Mower

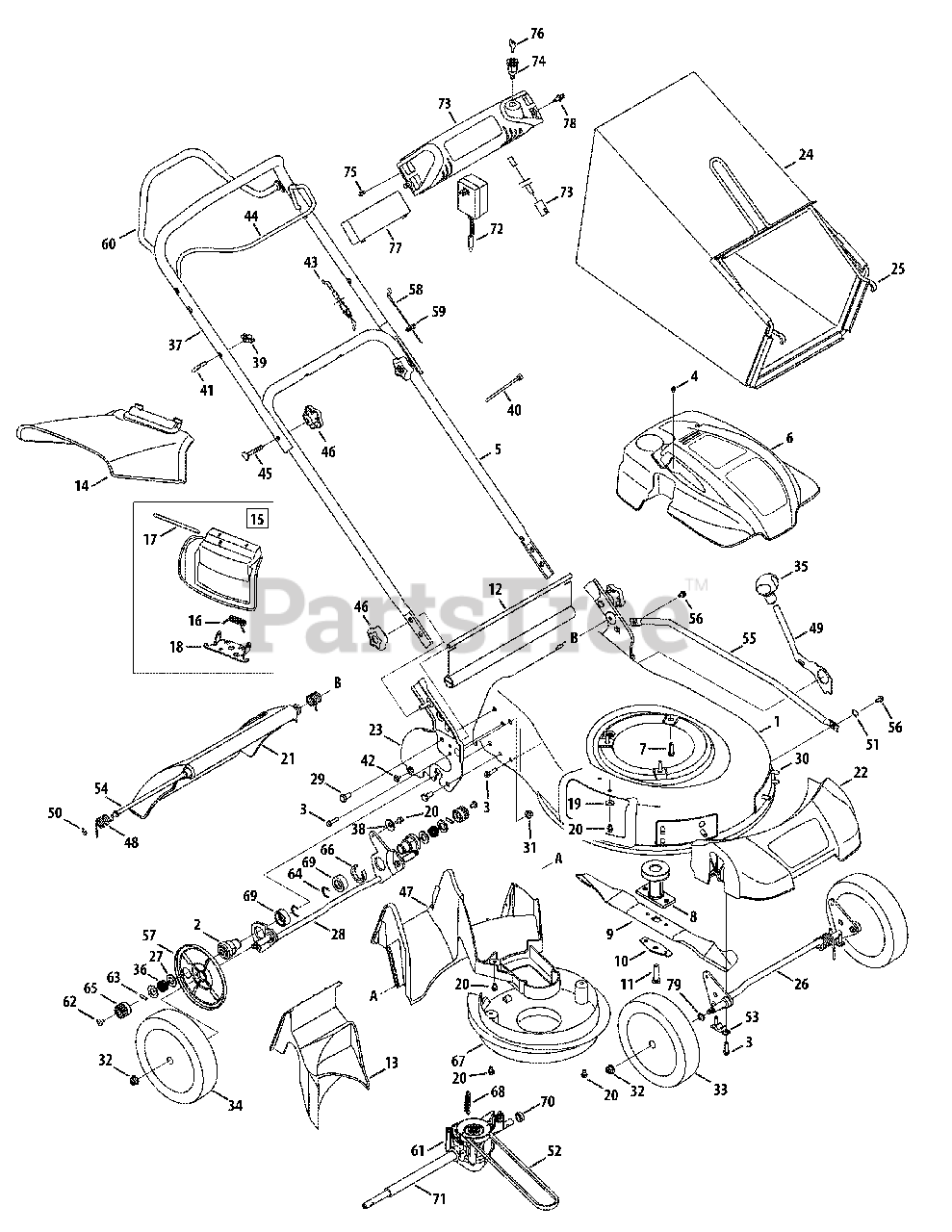

General Assembly CC550ES Parts Diagram

  • Title

1

Cub Cadet 787-01629-4021

19" Deck

$198.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 687-02415

Transmission Support Bearing

$23.99

$

In Stock, only 3 left!

0

3

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

4

Cub Cadet 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

5

Cub Cadet 749-04556

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 931-04232B

Engine Shroud

$63.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0654A

Screw, 3/8-16 x 1.00

$4.49

$

In Stock, only 3 left!

0

8

Cub Cadet 687-02555

Blade Adapter

$37.99

$

In Stock, only 1 left!

0

9

Cub Cadet 942-0739

Mulching Blade

$23.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, Qty 9

0

12

Cub Cadet 731-05639A

Trailing Shield

$19.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-05746

Rear Mulch Plug

$

$

Not available

14

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 8

0

16

Cub Cadet 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-05673

Front Cover

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02323-0637

Handle Bracket - RH

$

$

Not available

23

Cub Cadet 687-02322-0637

Handle Bracket - LH
(Superseded to 687-02322)

$

$

Not available

24

Cub Cadet 964-04066

Grass Bag

$102.99

$

In Stock, Qty 7

0

25

Cub Cadet 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

27

Cub Cadet 936-0369

Washer, Flat, .508 x 1.00 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 8

0

28

Cub Cadet 687-02304-0637

Self Propelled Bracket Ass’y

$132.99

$

In Stock, only 4 left!

0

29

Cub Cadet 710-3025

Hhcs, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

Cub Cadet 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

31

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 634-04346

Front Wheel

$39.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 934-04348

Rear Wheel

$

$

Not available

35

Cub Cadet 720-04096

Knob

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet 732-04650

Wave Spring

$10.99

$

In Stock, only 2 left!

0

37

Cub Cadet 749-04550

Upper Handle

$47.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 736-0242

Washer, Bell, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 720-0279

Knob

$4.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

41

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, only 1 left!

0

42

Cub Cadet 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

43

Cub Cadet 746-04523

Control Cable
(Superseded to 946-04523)

$23.99

$

In Stock, only 1 left!

0

44

Cub Cadet 747-05045

Blade Control

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-1174

Bolt Carriage, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

46

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 731-06190

Rear Baffle

$

$

Not available

48

Cub Cadet 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-04338C

Spring Lever

$

$

Not available

50

Cub Cadet 726-0201

Nut, Push

$6.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-04413

Wshr, Wave, .385 ID x .598 OD

$3.99

$

In Stock, Qty 5

0

52

Cub Cadet 954-04158

V-Belt

$18.99

$

In Stock, Qty 8

0

53

Cub Cadet 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

Cub Cadet 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-04307-0637

Cross Bracket

$24.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-04278

Scr., Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

57

Cub Cadet 731-06974

Wheel Dust Cover

$6.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 946-04519B

Drive Cable

$46.99

$

In Stock, only 2 left!

0

59

Cub Cadet 735-04059

Grommet

$4.99

$

In Stock, Qty 11

0

60

Cub Cadet 747-05047A

Drive Control
(Superseded to 747-05047B)

$32.99

$

Usually ships in 3-6 days

0

61

Cub Cadet 918-04463A

Transmission

$

$

Not available

62

Cub Cadet 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

63

Cub Cadet 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 13

0

64

Cub Cadet 716-0198

Retainer Ring

$4.99

$

In Stock, Qty 10

0

65

Cub Cadet 917-04192C

Spur Gear - RH

$7.49

$

In Stock, only 3 left!

0

65

Cub Cadet 917-04184C

Spur Gear - LH

$9.49

$

In Stock, only 3 left!

0

66

Cub Cadet 731-05872

Spacer, Clip

$6.99

$

In Stock, only 4 left!

0

67

Cub Cadet 731-06164

Engine Baffle

$31.99

$

In Stock, only 1 left!

0

68

Cub Cadet 932-04262

Exten. Spring, .429OD x 2.515

$9.49

$

Usually ships in 3-6 days

0

69

Cub Cadet 748-0390

Bearing Support Spacer

$5.99

$

In Stock, Qty 10

0

70

Cub Cadet 750-04870

Sleeve Spacer, .550ID x .340 Lg.

$6.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 750-04853

Sleeve Spacer, .550ID x 7.97 Lg.

$

$

Not available

72

Cub Cadet 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 13

0

73

Cub Cadet 925-04072

Electric Start Harness Assembly

$99.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

76

Cub Cadet 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

77

Cub Cadet 925-04323

Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

78

Cub Cadet 728-0199

Rivet

$4.49

$

In Stock, Qty 15

0

79

Cub Cadet 936-0504

Washer, Wave, .510 x .750 x .017

$4.49

$

In Stock, Qty 10

0

Cub Cadet 725-05106

40 Amp Fuse

Note: Not shown, For electric start circuit

$4.99

$

Usually ships in 3-6 days
