CC 5090 BC (41AD590C910) - Cub Cadet Brush Cutter (2006) Boom and Trimmer Parts Parts Diagram

Brush Cutter

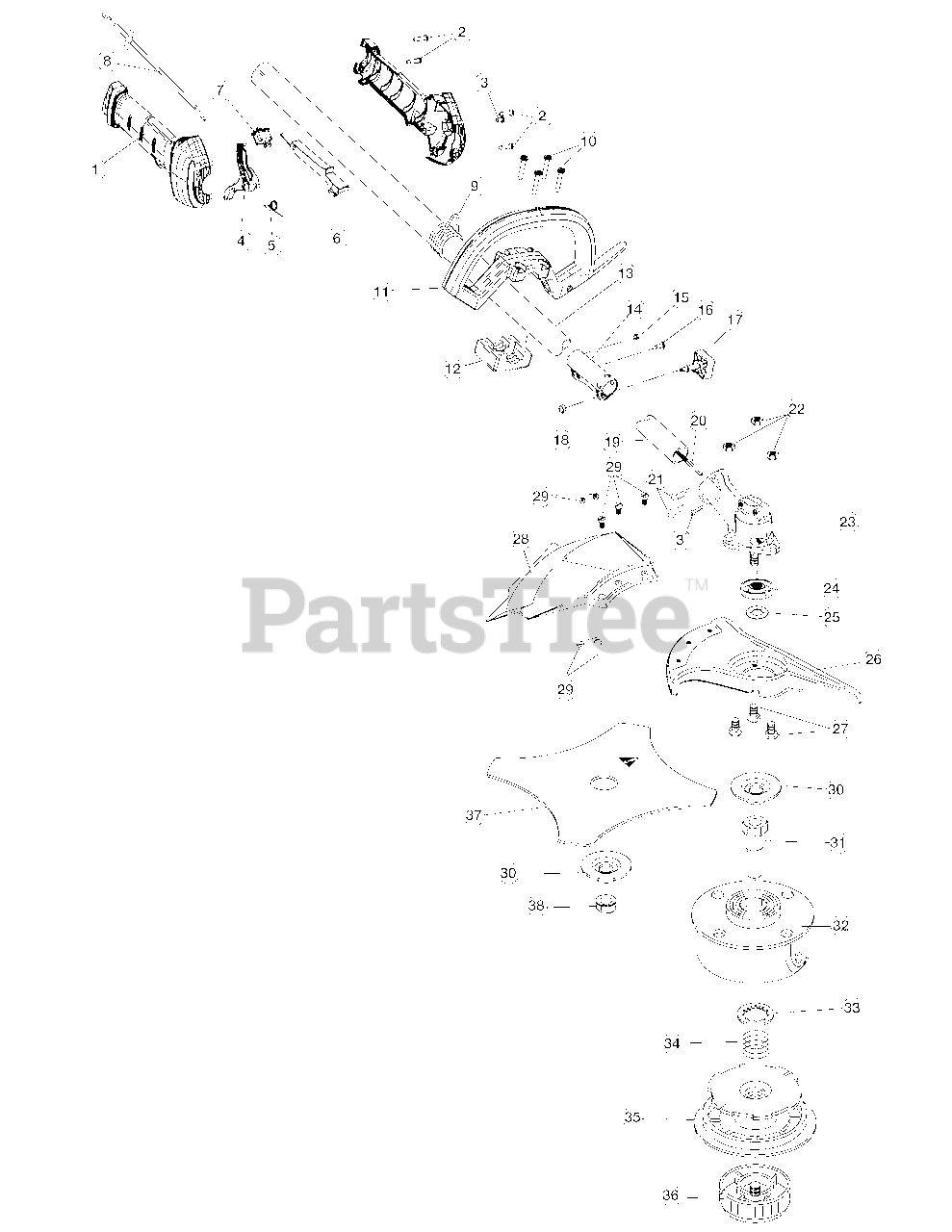

Boom and Trimmer Parts Parts Diagram

  • Title

1

Cub Cadet 753-05296

Throttle Grip Assembly (includes 2-7)
(Superseded to 753-09645)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-05274

Screw
(Superseded to 710-04508)

$4.49

$

In Stock, only 2 left!

0

3

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet 753-05293

Throttle Trigger
(Superseded to 731-04970B-10)

$9.49

$

In Stock, Qty 20+

0

5

Cub Cadet 753-05007

Throttle Trigger Spring

$5.49

$

In Stock, only 3 left!

0

6

Cub Cadet 753-05294

Lockout
(Superseded to 731-04971A-2)

$9.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-182673

Switch

$10.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05270

Throttle Cable

$26.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05008

D-Handle

$31.99

$

In Stock, only 2 left!

0

12

Cub Cadet 753-05009

D-Handle Base

$7.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 753-04236

Upper Drive Shaft Assembly

$94.99

$

In Stock, Qty 5

0

14

Cub Cadet 791-181616B

Split Boom Coupler Assembly
(Superseded to 753-1190)

$23.99

$

In Stock, only 1 left!

0

15

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

17

Cub Cadet 791-181618B

Knob (includes 18)
(Superseded to 791-181981)

$

$

Not available

18

Cub Cadet 753-04386

Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

19

Cub Cadet 753-04504

Lower Drive Shaft Housing Assembly

$69.99

$

In Stock, only 1 left!

0

20

Cub Cadet 791-181570

Lower Flex Shaft

$61.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

22

Cub Cadet 791-182200

Shield Mounting Hardware

$6.99

$

In Stock, only 2 left!

0

23

Cub Cadet 791-182193

Gearbox Assembly (includes 3, 21, 26 & 27)

$99.99

$

In Stock, only 2 left!

0

24

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

25

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

26

Cub Cadet 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

28

Cub Cadet 753-1191

Shield Assembly (includes 29)

$64.99

$

In Stock, only 1 left!

0

29

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

30

Cub Cadet 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

31

Cub Cadet 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

32

Cub Cadet 791-683301

Outer Spool Assembly

$48.99

$

In Stock, Qty 6

0

33

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

34

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

35

Cub Cadet 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

36

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

37

Cub Cadet 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 3 left!

0

38

Cub Cadet 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

Cub Cadet 791-180014B

Blade Retaining Kit (includes 30 & 38)

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 791-613226

Locking Rod (Item Not Shown)

$14.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Harness (Item Not Shown)

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-04216

Optional Accessories - Replacement Line, 0.105" Diameter

Note: (Item Not Shown)

$

$

Not available

Cub Cadet 753-1224

Optional Accessories - Reel and Line Assembly

Note: (Item Not Shown)

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-1161

Optional Accessories - Bump Head Assembly (includes 31-36)
(Superseded to 791-147498)

Note: (Item Not Shown)

$117.99

$

In Stock, only 1 left!

0
