CC 5075 SS (41AD575C910) - Cub Cadet String Trimmer (2006) Engine Parts Parts Diagram

String Trimmer

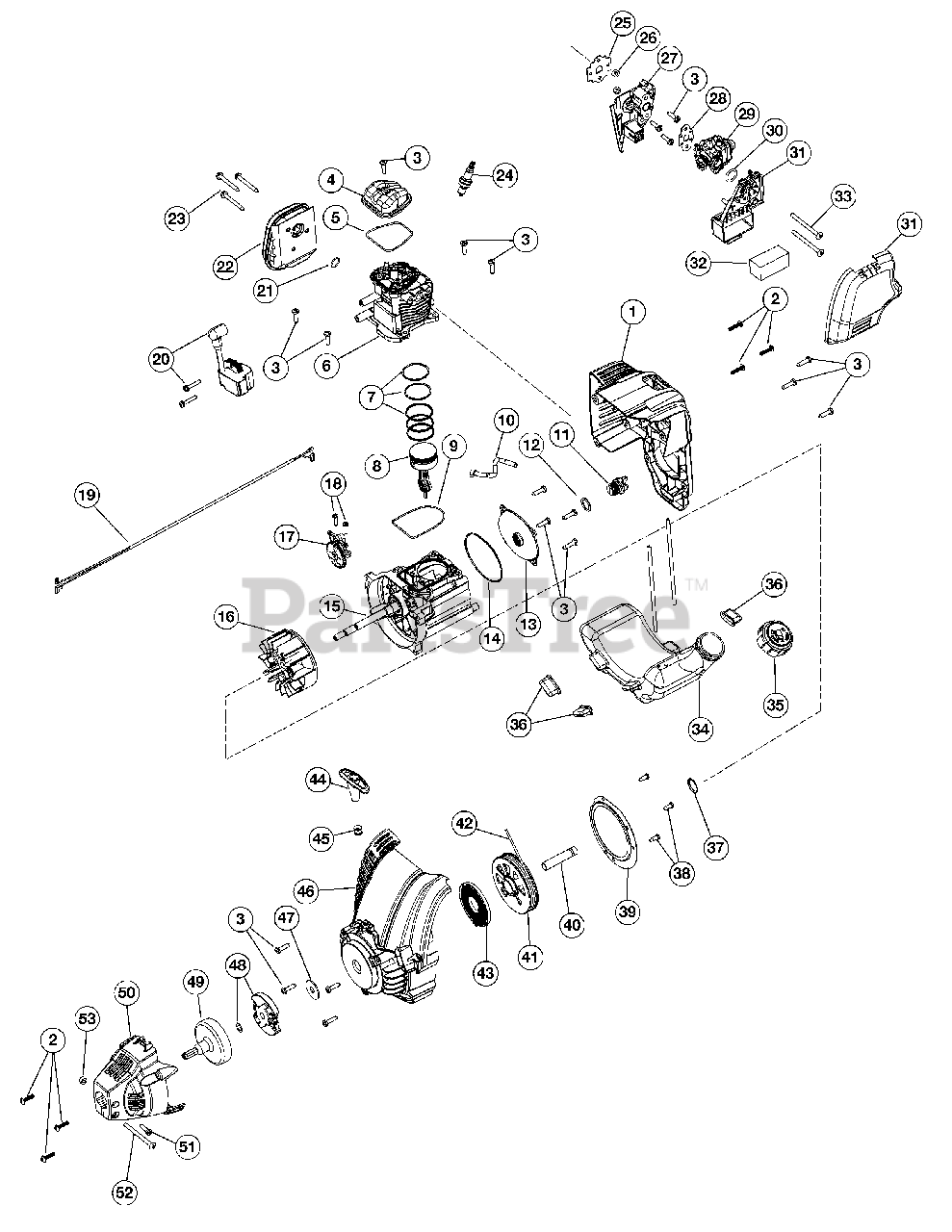

Engine Parts Parts Diagram

  • Title

1

Cub Cadet 753-05206

Engine Cover Assembly (includes 2 & 3)

$

$

Not available

2

Cub Cadet 753-04595

Cover Screw
(Superseded to 710-04194)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 753-05208

Screw
(Superseded to 791-181003)

$

$

Not available

4

Cub Cadet 753-05209

Rocker Cover

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05210

Rocker Cover O-Ring
(Superseded to 721-04132)

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05228

Cylinder Assembly (includes 3, 5 & 9)

$111.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-05229

Piston Ring Assembly

$38.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05230

Piston Assembly (includes 7)

$79.99

$

In Stock, only 1 left!

0

9

Cub Cadet 753-05232

Cylinder O-Ring

$9.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-182379

Breather Hose

$4.99

$

In Stock, Qty 11

0

11

Cub Cadet 753-05234

Oil Plug (includes 12)

$

$

Not available

12

Cub Cadet 791-182290

Oil Plug O-Ring

$4.99

$

In Stock, Qty 9

0

13

Cub Cadet 753-05237

Crankcase Cover

$31.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05238

Crankcase Cover O-ring

$10.99

$

In Stock, only 1 left!

0

15

Cub Cadet 753-05239

Crankcase Assembly (includes 9, 10 & 14)

$172.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 753-05240

Flywheel Assembly

$76.99

$

In Stock, only 2 left!

0

17

Cub Cadet 753-05241

Cam Bracket Assembly (includes 18)

$45.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 753-05242

Cam Bracket Screw
(Superseded to 710-04584)

$3.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 753-05264

Lead Wires

$16.99

$

In Stock, only 1 left!

0

20

Cub Cadet 753-05243

Module Assembly
(Superseded to 753-05301)

$113.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

22

Cub Cadet 753-05245

Muffler Assembly (includes 21 & 23)

$92.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 753-05246

Muffler Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet 753-05255

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 6

0

25

Cub Cadet 753-05247

Insulator Gasket

$

$

Not available

26

Cub Cadet 753-05248

Nut
(Superseded to 712-04099)

$6.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-05249

Insulator

$18.99

$

In Stock, only 1 left!

0

28

Cub Cadet 753-05250

Carburetor Gasket
(Superseded to 753-05366)

$19.99

$

In Stock, Qty 6

0

29

Cub Cadet 753-05251

Carburetor w/Primer

$74.99

$

In Stock, Qty 16

0

30

Cub Cadet 791-181751

O-Ring

$4.49

$

In Stock, Qty 19

0

31

Cub Cadet 753-05252

Air Cleaner Cover Assembly (includes 32)

$27.99

$

In Stock, only 3 left!

0

32

Cub Cadet 753-05254

Air Filter

$5.99

$

In Stock, only 4 left!

0

33

Cub Cadet 753-05253

Screw
(Superseded to 710-04517)

$5.49

$

In Stock, Qty 20+

0

34

Cub Cadet 753-05288

Fuel Tank Assembly w/Fuel Lines (includes 35)
(Superseded to 753-05256)

$54.99

$

In Stock, Qty 14

0

35

Cub Cadet 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

36

Cub Cadet 753-05259

Fuel Tank Pads

$6.99

$

In Stock, Qty 20+

0

37

Cub Cadet 753-05260

Push Nut
(Superseded to 712-04096)

$

$

Not available

38

Cub Cadet 753-1202

Pressure Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 753-05074

Pressure Plate (includes 38)

$

$

Not available

40

Cub Cadet 753-05078

Spacer
(Superseded to 750-04434)

$6.99

$

In Stock, Qty 14

0

41

Cub Cadet 753-05261

Starter Assembly (includes 42)
(Superseded to 753-05435)

$31.99

$

In Stock, Qty 8

0

42

Cub Cadet 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

43

Cub Cadet 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

44

Cub Cadet 791-181079

Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

45

Cub Cadet 791-611061

Rope Guide

$10.99

$

In Stock, only 2 left!

0

46

Cub Cadet 753-05290

Starter Housing Assembly (includes 3 & 37-45)

$82.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 791-182396

Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

48

Cub Cadet 753-1238

Clutch & Clutch Washer

$45.99

$

In Stock, Qty 13

0

49

Cub Cadet 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

50

Cub Cadet 753-05263

Clutch Cover

$27.99

$

In Stock, Qty 5

0

51

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, Qty 6

0

52

Cub Cadet 753-04003

Clamp Screw
(Superseded to 9689A)

$11.99

$

In Stock, Qty 16

0

53

Cub Cadet 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 753-05297

Spark Arrestor Assembly (not shown)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-05291

Shortblock Assembly (includes 3-12, 14, 15, 17 & 24)
(Superseded to 753-05265)

Note: not shown

$

$

Not available
