CC 500 EL (18A-182-710) - Cub Cadet Walk-Behind Mower, Electric (2012) General Assembly CC500EL Parts Diagram

Walk-Behind Mower, Electric

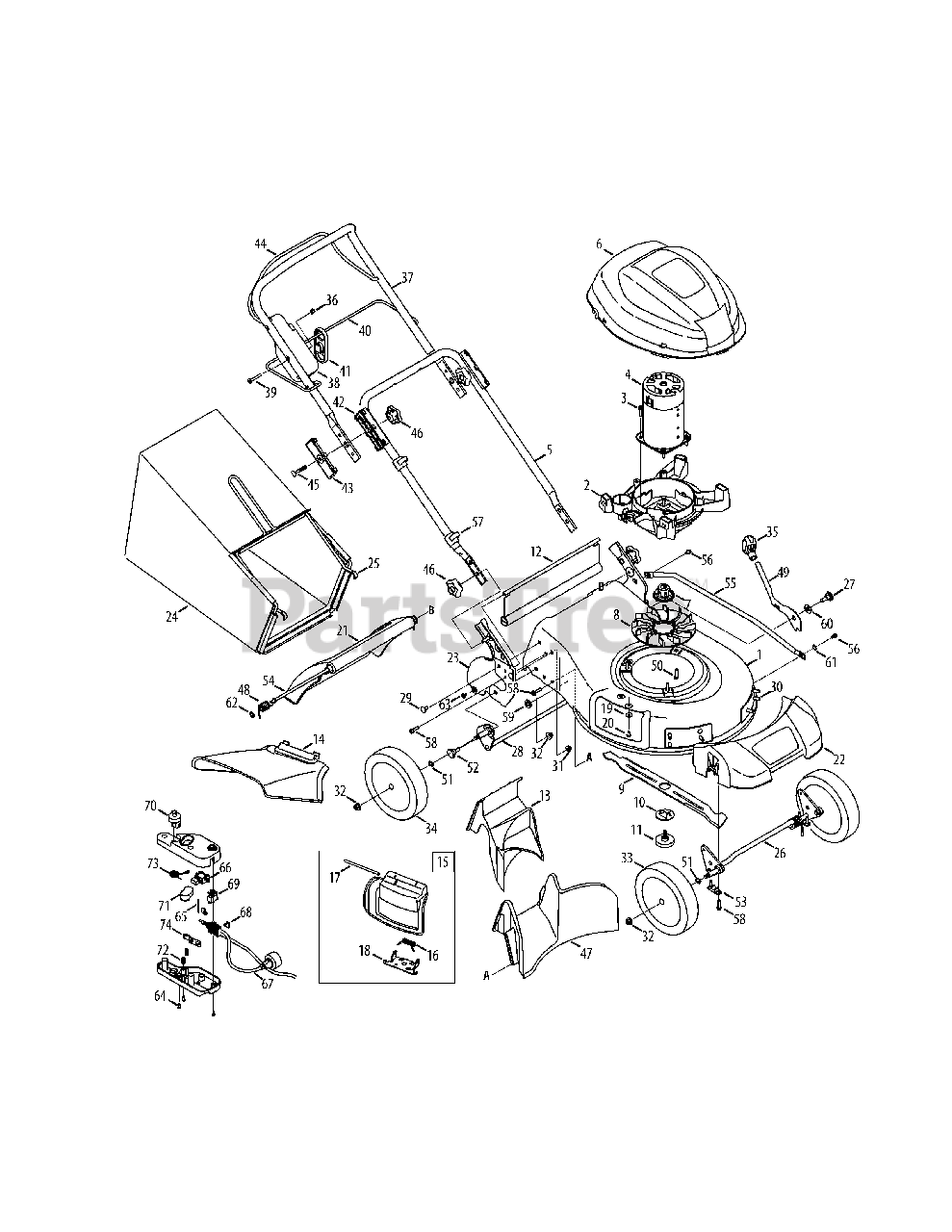

General Assembly CC500EL Parts Diagram

  • Title

1

Cub Cadet 787-01649-4021

19" Deck

$

$

Not available

2

Cub Cadet 731-05727

Motor Bracket

$49.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, Qty 5

0

4

Cub Cadet 924-04010

Electric Motor, 120V

$

$

Not available

5

Cub Cadet 749-04312

Lower Handle

Variations

Cub Cadet 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

$50.99

$

In Stock, only 4 left!

0

6

Cub Cadet 731-05749

Motor Shroud

$

$

Not available

7

Cub Cadet 631-04228

Blade Hub

$24.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-05832

Electric Fan

$13.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 942-04152

Mulching Blade

$34.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 782-7051

Blade Locking Plate

$11.99

$

In Stock, only 1 left!

0

11

Cub Cadet 624-0078

Blade Bolt Assembly

$28.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-05639A

Trail Shield

$19.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-05746

Rear Mulch Plug

$

$

Not available

14

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 8

0

16

Cub Cadet 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0270

Beleville Washer

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-05634

Front Cover

$67.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02325-0637

Handle Bracket - RH

$31.99

$

In Stock, only 1 left!

0

23

Cub Cadet 687-02324-0637

Handle Bracket - LH

$34.99

$

In Stock, only 1 left!

0

24

Cub Cadet 964-04078

Grass Bag

$

$

Not available

25

Cub Cadet 647-04107-0637

Grass Bag Frame

$55.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

27

Cub Cadet 938-0148

Screw, Shoulder, .50 x .66

$16.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 687-02228-0637

Rear Bracket Assembly

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3025

Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

Cub Cadet 710-04995

Hi-lo Screw, 5/16-14 x .750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 634-04346

Front Wheel

$39.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 634-04347

Rear Wheel

$48.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 720-04096

Foam Grip

$6.49

$

In Stock, only 1 left!

0

36

Cub Cadet 712-0324

Nut, Hex Lock, 1/4-20

$3.99

$

In Stock, Qty 17

0

37

Cub Cadet 749-04353

Upper Handle

$

$

Not available

38

Cub Cadet 925-04035

Motor/Blade Control

$188.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 753-04430

Screw, Flat, 1/4-20 x 1.75

$3.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 747-04672

Guide Rod

$

$

Not available

41

Cub Cadet 726-0368-0637

Cord Retainer
(Superseded to 726-0368)

$8.49

$

Usually ships in 3-6 days

0

42

Cub Cadet 731-05186

Lower Handle Insulator

$10.99

$

In Stock, only 1 left!

0

43

Cub Cadet 731-05178

Upper Handle Insulator

$4.49

$

In Stock, only 1 left!

0

44

Cub Cadet 747-04663A

Motor/Blade Control Handle

$22.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0572

Bolt Carriage, 5/16-18 x 2.50

$4.49

$

In Stock, only 4 left!

0

46

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 731-05710A

Rear Baffle

$33.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-04377C

Spring Lever

$

$

Not available

50

Cub Cadet 710-0726

Screw, 5/16-12 x .750

$4.49

$

In Stock, Qty 20+

0

51

Cub Cadet 936-0504

Washer, Wave, .510 x .750 x .017

$4.49

$

In Stock, Qty 10

0

52

Cub Cadet 938-0507B

Screw, Shoulder, .500 Dia. X .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

53

Cub Cadet 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

Cub Cadet 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-04356-0637

Cross Bracket

$

$

Not available

56

Cub Cadet 738-04278

Screw, Shldr., 1/4-20 x .50

$6.99

$

In Stock, Qty 7

0

57

Cub Cadet 731-2422

Cable Guide

$15.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

59

Cub Cadet 731-05880

Spacer, .515 x 1.00 x .310 Lg.

$3.49

$

Usually ships in 3-6 days

0

60

Cub Cadet 936-0255

Washer, Bell, .510 x 1.14 x .040
(Superseded to 736-0255)

$

$

Not available

61

Cub Cadet 736-04413

Washer, Wave, .390 x .825 x .016

$3.99

$

In Stock, Qty 5

0

62

Cub Cadet 726-0201

Nut, Speed

$6.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

64

Cub Cadet 1755

Screw, 10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 711-1145

Switch Pivot Shaft

$3.49

$

Usually ships in 3-6 days

0

66

Cub Cadet 725-04435

Switch

$28.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 725-04449

Wiring Harness

$

$

Not available

68

Cub Cadet 725-04499

Jumper Wire

$

$

Not available

69

Cub Cadet 925-1712

Circuit Breaker

$39.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 731-1571A

Bail Lock Clip

$7.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 731-1572

Bail Lock Button

$5.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 732-04427

Compression Spring, .260 x .687

$

$

Not available

73

Cub Cadet 732-0741A

Torsion Spring

$5.99

$

Usually ships in 3-6 days

0

74

Cub Cadet 787-01466A

Switchbox Lever

$

$

Not available
