CC 500 BAT (18A-189-710) - Cub Cadet Walk-Behind Mower, Electric (2011) General Assembly CC500BAT Parts Diagram

Walk-Behind Mower, Electric

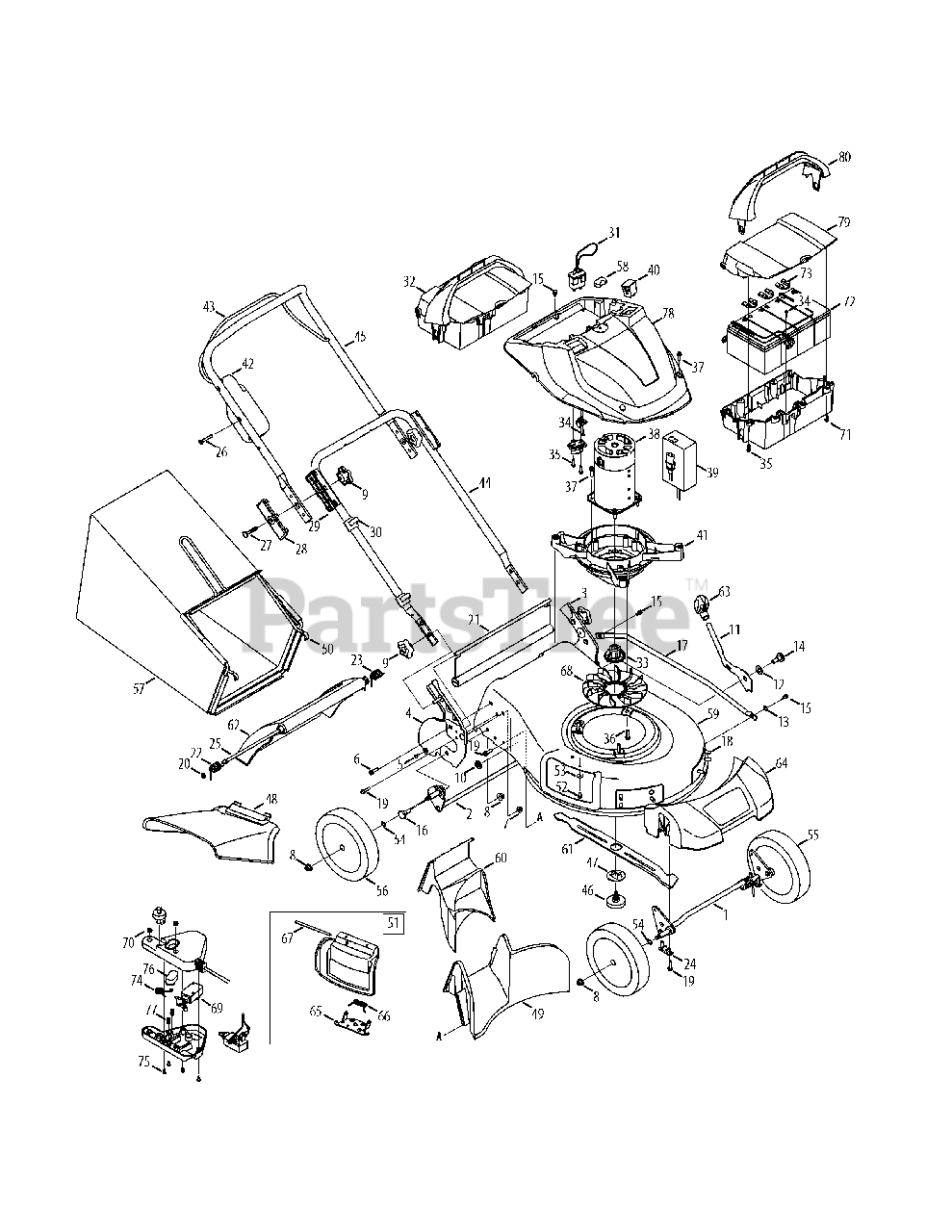

General Assembly CC500BAT Parts Diagram

  • Title

1

Cub Cadet 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

2

Cub Cadet 687-02228-0637

Rear Bracket Assembly

$40.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 687-02324-0637

LH Bracket Assembly

$34.99

$

In Stock, only 1 left!

0

4

Cub Cadet 687-02325-0637

RH Bracket Assembly

$31.99

$

In Stock, only 1 left!

0

5

Cub Cadet 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

6

Cub Cadet 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

7

Cub Cadet 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04065

Flangelock Nut, 3/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 731-05880

Spacer, .515 X 1.00 X .310 LG

$3.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 732-04377C

Height Lever

$

$

Not available

12

Cub Cadet 936-0255

Bell Washer, .510 x 1.14 x .040
(Superseded to 736-0255)

$

$

Not available

13

Cub Cadet 736-04413

Wave Washer, .385 ID X .598 OD

$3.99

$

In Stock, Qty 5

0

14

Cub Cadet 938-0148

Shoulder Screw, .50 x .66

$16.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 738-04278

Shoulder Screw, 1/4-20:0.50

$6.99

$

In Stock, Qty 5

0

16

Cub Cadet 938-0507B

Shoulder Screw, .500 x .434
(Superseded to 738-0507B)

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet 749-04356-0637

Height Bracket

$

$

Not available

18

Cub Cadet 710-04995

Hi-lo Screw, 5/16-14 x.750
(Superseded to 710-04995A)

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1241

Hi-lo Screw, 1/4-15 x1.00

$6.99

$

In Stock, Qty 18

0

20

Cub Cadet 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

21

Cub Cadet 731-05639A

Trailshield

$19.99

$

In Stock, only 4 left!

0

22

Cub Cadet 732-04534

RH Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 732-04535

LH Torsion Spring

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 741-0492A

Bushing

$6.49

$

In Stock, Qty 9

0

25

Cub Cadet 747-04589

Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 753-04430

Flat Screw, 1/4-20 1.75

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-0572

Carrriage Bolt, 5/16-18 2.50

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 731-05178

Upper Handle Insulator

$4.49

$

In Stock, only 1 left!

0

29

Cub Cadet 731-05186

Lower Handle Insulator

$10.99

$

In Stock, only 1 left!

0

30

Cub Cadet 731-2422

Cable Guide

$15.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 925-04116

Key

$12.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 925-04118

Replaceable Battery

$

$

Not available

33

Cub Cadet 631-04228

Fan Assembly

$24.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 710-04329

Screw, 1.59 x .610

$4.99

$

In Stock, only 2 left!

0

35

Cub Cadet 710-04373A

Hi-lo Screw, #12-16:.75

$4.49

$

In Stock, Qty 15

0

36

Cub Cadet 710-0726

Screw, 5/16-12:0.750

$4.49

$

In Stock, Qty 20+

0

37

Cub Cadet 710-0895

Hi-lo Screw, 1/4-15:0.750

$6.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 724-04025P

Motor

$460.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 725-04387A

Battery Charger

$189.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 725-04438

Battery Level Indicator

$51.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 731-07444

Motor Bracket

$

$

Not available

42

Cub Cadet 925-04102

Switch Assembly

$

$

Not available

43

Cub Cadet 747-04663A

Switch Bail

$22.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 749-04312

Lower Handle

Variations

Cub Cadet 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

$50.99

$

In Stock, only 4 left!

0

45

Cub Cadet 749-04353

Upper Handle

$

$

Not available

46

Cub Cadet 624-0078

Blade Assembly Bolt

$28.99

$

In Stock, only 1 left!

0

47

Cub Cadet 782-7051

Blade Locking Plate

$11.99

$

In Stock, only 1 left!

0

48

Cub Cadet 731-04177

Discharge Chute

$19.99

$

In Stock, Qty 20+

0

49

Cub Cadet 731-05710A

Rear Baffle

$33.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 987-02055

Mulch Plug

$27.99

$

In Stock, Qty 10

0

52

Cub Cadet 710-0599

Taptite Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0270

Bell Washer, .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 936-0504

Wave Washer, .510 x .750 x .017

$4.49

$

In Stock, Qty 9

0

55

Cub Cadet 634-04346

Front Wheel

$39.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 634-04347

Rear Wheel

$48.99

$

In Stock, only 1 left!

0

57

Cub Cadet 964-04066

Grass Bag

$102.99

$

In Stock, Qty 7

0

58

Cub Cadet 720-04144

Locking Knob

$5.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 787-01798-4021

Deck

$

$

Not available

60

Cub Cadet 731-05746

Mulch Plug

$

$

Not available

61

Cub Cadet 942-04152

Blade

$34.99

$

Usually ships in 3-6 days

0

62

Cub Cadet 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 720-04096

Height Adjust Knob

$6.49

$

In Stock, only 3 left!

0

64

Cub Cadet 931-05634

Front Axle Cover

$67.99

$

Usually ships in 3-6 days

0

65

Cub Cadet 17032A

Chute Deflector Adaptor

$10.99

$

In Stock, only 2 left!

0

66

Cub Cadet 732-1014

Torsion Spring, .290 ID x 1.68
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

67

Cub Cadet 747-0710A

Hinge Pin, .250

$4.49

$

In Stock, Qty 20+

0

68

Cub Cadet 731-05832

Fan

$13.99

$

Usually ships in 3-6 days

0

69

Cub Cadet 725-04436

Switch Button

$

$

Not available

70

Cub Cadet 712-0324

Hexlock Nut, 1/4-20

$3.99

$

In Stock, Qty 16

0

71

Cub Cadet 710-04261

Screw, #12-16:.50

$6.49

$

In Stock, only 3 left!

0

72

Cub Cadet 925-04381A

12V Battery

$364.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 725-04497A

Battery Jumper

$

$

Not available

74

Cub Cadet 732-0741A

Torsion Spring

$5.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 1755

Screw, 10-9 x .50

$3.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 731-1572

Bail Lock

$5.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 732-04427

Compression Spring, .260 x .687

$

$

Not available

78

Cub Cadet 631-04435

Motor Shroud

$

$

Not available

79

Cub Cadet 731-07448

Battery Cover

$

$

Not available

80

Cub Cadet 731-07449

Battery Handle

$

$

Not available

Cub Cadet 725-04973

Battery Harness

Note: (Not Shown)

$

$

Not available
