CC 500 (11A-18MC010) - Cub Cadet Walk-Behind Mower (2008) General Assembly Parts Diagram

Walk-Behind Mower

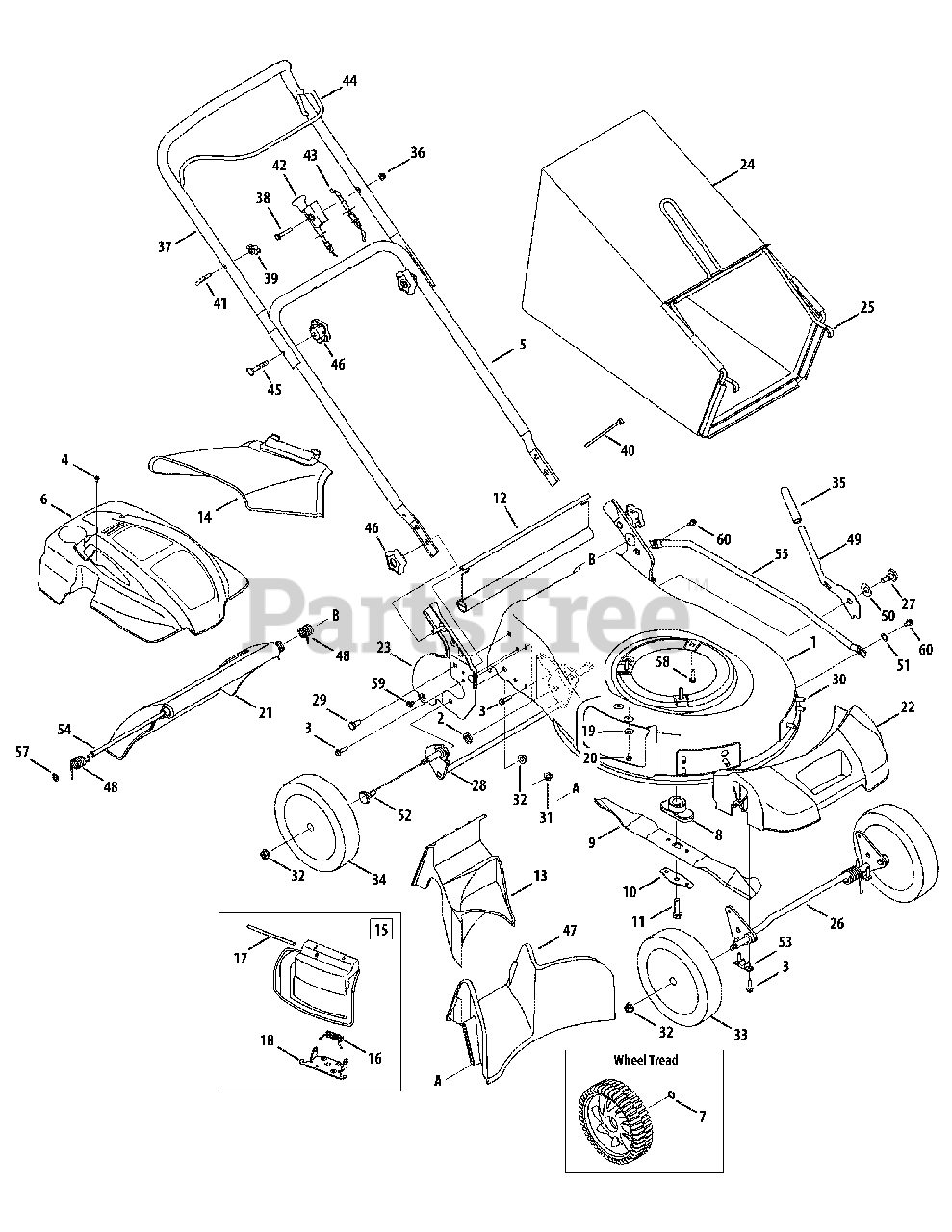

General Assembly Parts Diagram

  • Title

1

Cub Cadet 787-01583

19'' Deck

Variations

Cub Cadet 787-01583-4021

SHELL-19" DECK - CUB YELLOW 2 (4021)

$

$

Not available

$163.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 731-05880

Spacer, .515 x 1.00 x .310 Lg.

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 16

0

4

Cub Cadet 710-04577

Screw, Machine, M4-.7 x 10.00
(Superseded to 710-04744)

$5.49

$

In Stock, Qty 11

0

5

Cub Cadet 749-04312

Lower Handle

Variations

Cub Cadet 749-04312-0637

Lower Handle, 19" - POWDER BLACK (0637)

$50.99

$

In Stock, only 4 left!

0

$50.99

$

In Stock, only 4 left!

0

6

Cub Cadet 631-04232A

Engine Shroud
(Superseded to 931-04232B)

$63.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 736-0504

Washer, Wave .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 748-0376C

Blade Adapter
(Superseded to 748-0376E)

$20.99

$

In Stock, only 1 left!

0

9

Cub Cadet 742-0739

Mulching Blade
(Superseded to 942-0739)

$23.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 5

0

11

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 2 left!

0

12

Cub Cadet 731-05639A

Trailing Shield

$19.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-05746

Rear Mulch Plug

$

$

Not available

14

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 687-02055

Mulch Plug
(Superseded to 987-02055)

Note: (Incl. 16-18)

$27.99

$

In Stock, Qty 10

0

16

Cub Cadet 732-1014

Torsion Spring
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 736-0270

Belleville Washer

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 710-0599

Screw

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 731-05686

Rear Door
(Superseded to 931-05686)

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 731-05673

Front Cover
(Superseded to 931-05673)

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02325

Handle Bracket - RH

Variations

Cub Cadet 687-02325-0637

BRACKET ASM-HNDL RH - POWDER BLACK (0637)

$31.99

$

In Stock, only 1 left!

0

$27.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02324

Handle Bracket - LH

Variations

Cub Cadet 687-02324-0637

BRACKET ASM-HNDL LH - POWDER BLACK (0637)

$34.99

$

In Stock, only 1 left!

0

$34.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 664-04066

Grass Bag
(Superseded to 964-04066)

$102.99

$

In Stock, Qty 7

0

25

Cub Cadet 647-04082

Grass Bag Frame
(Superseded to 647-04082-0637)

Variations

Cub Cadet 647-04082-0637

Grass Catcher Bag Frame, Black - POWDER BLACK (0637)

$61.99

$

Usually ships in 3-6 days

0

$61.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02225

Front Bracket Asssembly
(Superseded to 687-02225-0637)

Variations

Cub Cadet 687-02225-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$52.99

$

In Stock, only 1 left!

0

$52.99

$

In Stock, only 1 left!

0

27

Cub Cadet 738-0148

Screw, Shoulder .50 x .66
(Superseded to 938-0148)

$16.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 687-02228

Rear Bracket Assembly
(Superseded to 687-02228-0637)

Variations

Cub Cadet 687-02228-0637

AXLE ASM-REAR - POWDER BLACK (0637)

$40.99

$

Usually ships in 3-6 days

0

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3025

HHCS, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

Cub Cadet 710-1242

Screw, 5/16-14 x .750

$4.99

$

In Stock, Qty 19

0

31

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 634-04346

Front Wheel

$39.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 634-04347

Rear Wheel

$48.99

$

In Stock, only 1 left!

0

35

Cub Cadet 720-0230

Foam Grip

$7.49

$

In Stock, only 3 left!

0

36

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 749-04355

Upper Handle
(Superseded to 749-04355-0637)

Variations

Cub Cadet 749-04355-0637

HANDLE-UPPER ERGO - POWDER BLACK (0637)

$

$

Not available

$

$

38

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

39

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 746-04380

Choke Cable
(Superseded to 946-04380)

$52.99

$

In Stock, only 4 left!

0

43

Cub Cadet 746-04381

Control Cable
(Superseded to 946-04381)

$34.99

$

In Stock, Qty 6

0

44

Cub Cadet 747-04665

Blade Control
(Superseded to 747-04665-0716)

Variations

Cub Cadet 747-04665-0716

Ergonomic Blade Bail - CUB YELLOW-99 (0716)

$32.99

$

Usually ships in 3-6 days

0

$32.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-1174

Bolt Carriage, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

46

Cub Cadet 720-04072

Star knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 731-05710

Rear Baffle
(Superseded to 731-05710A)

$33.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04264

Door Torsion Spring - RH

$10.99

$

In Stock, only 1 left!

0

48

Cub Cadet 732-04265

Door Torsion Spring - LH

$10.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-04377A

Spring Lever

$

$

Not available

50

Cub Cadet 736-0255

Washer, Bell .510 x 1.14 x .040

$4.99

$

In Stock, only 3 left!

0

51

Cub Cadet 736-3012A

Washer, Wave .390 x .825 x .016

$6.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 738-0507B

Screw, Shoulder .500 Dia x .434

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 741-0492A

Bushing, Lock .505 Dia x .62

$6.49

$

In Stock, Qty 9

0

54

Cub Cadet 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-04307

Cross Bracket
(Superseded to 749-04307-0637)

Variations

Cub Cadet 749-04307-0637

Height Lift Rod - POWDER BLACK (0637)

$24.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-04278

Screw, 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

57

Cub Cadet 726-0201

Nut, Spd.

$6.99

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0654A

Screw, TT, 3/8-16 x 1.00

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 710-1268

Screw, #10-16 x .375

$4.49

$

In Stock, Qty 20+

0
