CC 500 (11A-18M9010) - Cub Cadet Walk-Behind Mower (2012) CC500 General Assembly Parts Diagram

Walk-Behind Mower

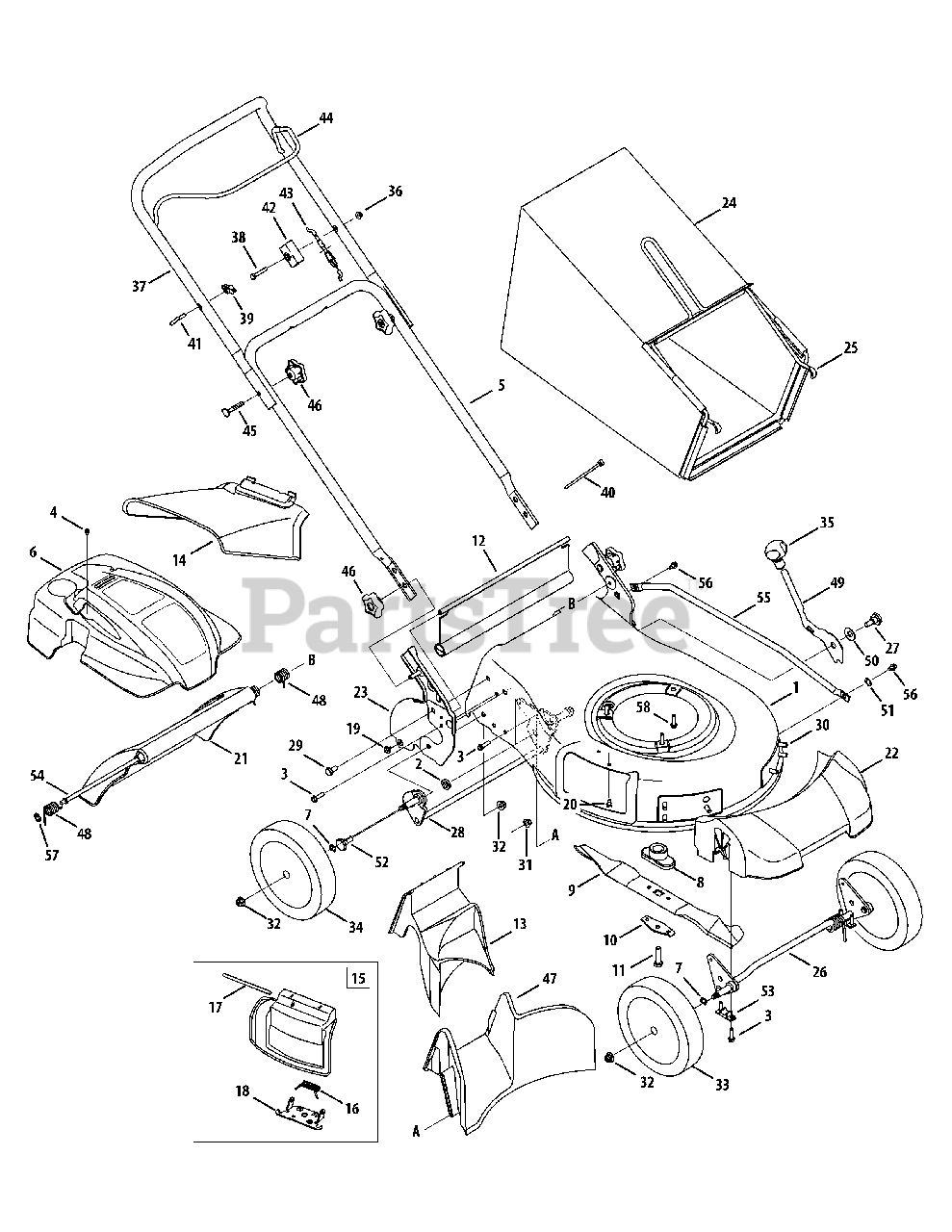

CC500 General Assembly Parts Diagram

  • Title

1

Cub Cadet 787-01649-4021

19" Deck

$

$

Not available

2

Cub Cadet 731-05880

Spacer, .515 x 1.00 x .310 Lg.

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 18

0

4

Cub Cadet 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

5

Cub Cadet 749-04556

Lower Handle

$47.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 931-04232B

Engine Shroud

$63.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 936-0504

Washer, Wave, .510 x .750 x .017

$4.49

$

In Stock, Qty 9

0

8

Cub Cadet 748-0376E

Blade Adapter

$20.99

$

In Stock, only 1 left!

0

9

Cub Cadet 942-0739

Mulching Blade

$23.99

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

11

Cub Cadet 710-1044

Screw, 3/8-24 x 1.50

$3.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-05639A

Trailing Shield

$19.99

$

In Stock, only 4 left!

0

13

Cub Cadet 731-05746

Rear Mulch Plug

$

$

Not available

14

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

15

Cub Cadet 987-02055

Mulch Plug (Incl. 16-18)

$27.99

$

In Stock, Qty 10

0

16

Cub Cadet 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

17

Cub Cadet 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

19

Cub Cadet 710-0779A

Screw, #10-16 x .500

$4.49

$

In Stock, Qty 12

0

20

Cub Cadet 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 931-05686

Rear Door

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 931-05673

Front Cover

$50.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 687-02325-0637

Handle Bracket - RH

$31.99

$

In Stock, only 1 left!

0

23

Cub Cadet 687-02324-0637

Handle Bracket - LH

$34.99

$

In Stock, only 1 left!

0

24

Cub Cadet 964-04066

Grass Bag

$102.99

$

In Stock, Qty 7

0

25

Cub Cadet 647-04082-0637

Grass Bag Frame

$61.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 687-02225-0637

Front Bracket Assembly

$52.99

$

In Stock, only 1 left!

0

27

Cub Cadet 938-0148

Screw, Shoulder, .50 x .66

$16.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 687-02228-0637

Rear Bracket Assembly

$40.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 710-3025

Hhcs, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

30

Cub Cadet 710-04995A

Screw, 5/16-14 x .750

$4.49

$

In Stock, Qty 20+

0

31

Cub Cadet 712-04063

Nut, Flange Lock, 5/16-18

$3.99

$

In Stock, Qty 5

0

32

Cub Cadet 712-04065

Nut, Flange Lock, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 634-04346

Front Wheel

$39.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 634-04347

Rear Wheel

$48.99

$

In Stock, only 1 left!

0

35

Cub Cadet 720-04096

Knob

$6.49

$

In Stock, only 3 left!

0

36

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20

$3.99

$

In Stock, Qty 20+

0

37

Cub Cadet 749-04550

Upper Handle

$47.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

39

Cub Cadet 720-0279

Knob

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 710-1205

Rope Guide

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 731-06749

Control Cable Mount

$5.49

$

In Stock, Qty 12

0

43

Cub Cadet 946-04535

Control Cable

$44.99

$

In Stock, only 2 left!

0

44

Cub Cadet 747-05045

Blade Control

$28.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-1174

Bolt Carriage, 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

46

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

47

Cub Cadet 731-05710A

Rear Baffle

$33.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04534

Door Torsion Spring - RH

$4.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 732-04535

Door Torsion Spring - LH

$4.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 732-04745

Spring Lever
(Superseded to 732-04377C)

$

$

Not available

50

Cub Cadet 936-0255

Washer, Bell, .510 x 1.14 x .040
(Superseded to 736-0255)

$

$

Not available

51

Cub Cadet 736-04413

Washer, Wave, .385 x .598

$3.99

$

In Stock, Qty 5

0

52

Cub Cadet 938-0507B

Screw, Shoulder, .500 Dia. X .434
(Superseded to 738-0507B)

$4.49

$

In Stock, only 4 left!

0

53

Cub Cadet 741-0492A

Bushing, Lock, .505 Dia. X .62

$6.49

$

In Stock, Qty 9

0

54

Cub Cadet 747-04589

Rear Door Pivot Rod

$7.99

$

Usually ships in 3-6 days

0

55

Cub Cadet 749-04307-0637

Cross Bracket

$24.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 738-04278

Screw, 1/4-20 x .50

$6.99

$

In Stock, Qty 5

0

57

Cub Cadet 726-0201

Nut, Spd.

$6.99

$

In Stock, only 2 left!

0

58

Cub Cadet 710-0654A

Screw, tt, 3/8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0
