CC 500 (11A-18M9010) - Cub Cadet Walk-Behind Mower (2012) 5P65M0B Flywheel & Shroud Parts Diagram

Walk-Behind Mower

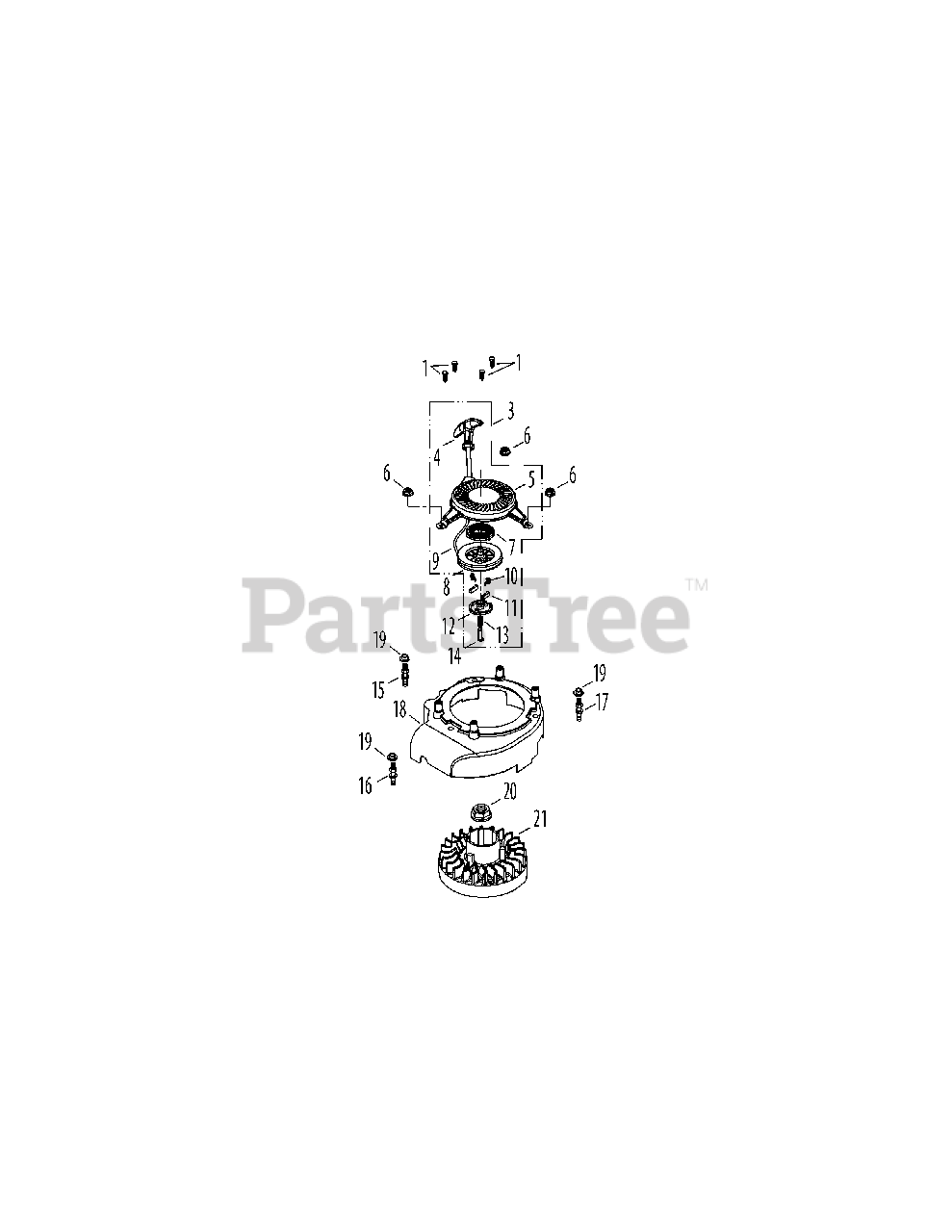

5P65M0B Flywheel & Shroud Parts Diagram

  • Title

1

Cub Cadet 710-04744

Self-Tap Bolt, Hilo #12-16 x 1.00"

$5.49

$

In Stock, Qty 11

0

3

Cub Cadet 951-11720

Recoil Starter Assembly
(Superseded to 951-12683)

Note: (Incl Ref No. 4-14)

$92.99

$

In Stock, only 4 left!

0

4

Cub Cadet N/A

Starter Handle

$

$

Currently unavailable

5

Cub Cadet N/A

Starter Housing

$

$

Currently unavailable

6

Cub Cadet 712-04212

Nut M6 X 10 Mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

7

Cub Cadet 951-11721

Recoil Spring and Pulley Assembly

Note: (Incl Ref No. 7,8)

$46.99

$

In Stock, only 1 left!

0

8

Cub Cadet 951-11721

Recoil Spring and Pulley Assembly

Note: (Incl Ref No. 7,8)

$46.99

$

In Stock, only 1 left!

0

9

Cub Cadet N/A

Starter Rope

$

$

Currently unavailable

10

Cub Cadet N/A

Starter Pawl Return Spring

$

$

Currently unavailable

11

Cub Cadet N/A

Starter Pawl

$

$

Currently unavailable

12

Cub Cadet N/A

Pressure Plate

$

$

Currently unavailable

13

Cub Cadet N/A

Pressure Plate Spring

$

$

Currently unavailable

14

Cub Cadet N/A

Pressure Plate Bolt

$

$

Currently unavailable

15

Cub Cadet 751-11722

Starter/Shroud Stud Black/M6 x 75

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-11723

Starter/Shroud Stud Front/M6 x 75.3

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 951-11724

Starter/Shroud Stud White/M6 x 73

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 951-10875

Inner Shroud

$46.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 750-05320

Engine Shroud Spacer

$4.49

$

In Stock, only 3 left!

0

20

Cub Cadet 712-04221

Flywheel Nut M14
(Superseded to 712-04287)

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 951-11043

Flywheel

$147.99

$

Usually ships in 3-6 days

0
