CC 500 (11A-18JY710) - Cub Cadet Walk-Behind Mower (2012) 5P65MU Fuel Tank & Mounting Parts Diagram

Walk-Behind Mower

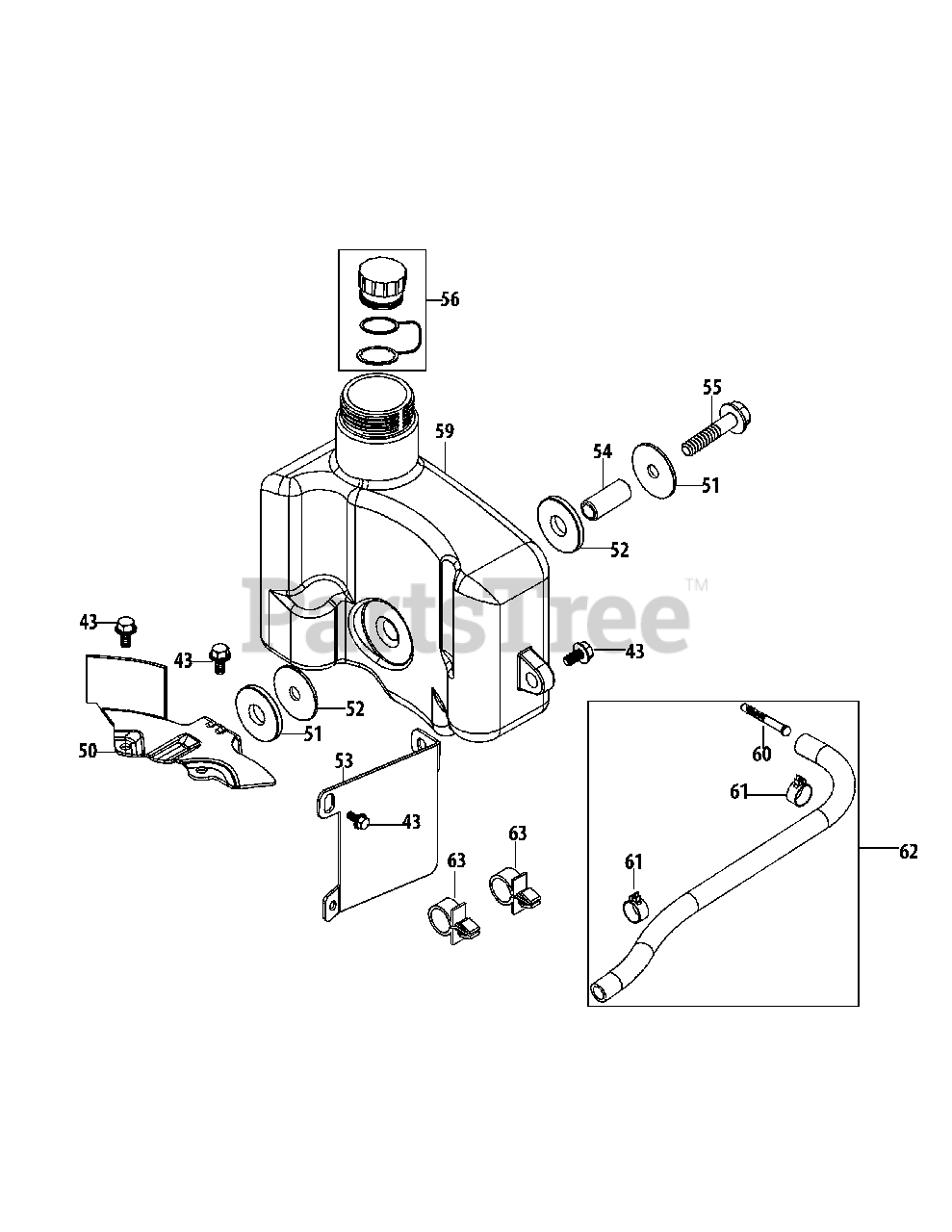

5P65MU Fuel Tank & Mounting Parts Diagram

  • Title
43

Cub Cadet 710-04916

Bolt M6X14 Multi-Purpose

$4.49

$

In Stock, Qty 12

0

50

Cub Cadet 951-11542

Fuel Tank Bottom Bracket

$9.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 736-04456

Fuel Tank Washer

$

$

Not available

52

Cub Cadet 951-10335

Rubber Bushing

$5.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-11748

Fuel Tank / Label Bracket

$7.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 750-05322

Fuel Tank Bushing

$4.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 710-04922

Bolt M8X50 Fuel Tank

$4.49

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-12738

Fuel Cap Assembly

$17.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-12864

Fuel Tank Assembly

$76.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 951-10358A

Fuel Filter
(Superseded to 951-12296A)

$9.99

$

In Stock, Qty 20+

0

61

Cub Cadet 951-11700

Fuel Hose Clamp
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

62

$28.99

$

In Stock, only 2 left!

0

63

Cub Cadet 723-04071

Plastic Support Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0
