CC 469 (12AV469Q709) - Cub Cadet Walk-Behind Mower (2008) Oil Pan Parts Diagram

Walk-Behind Mower

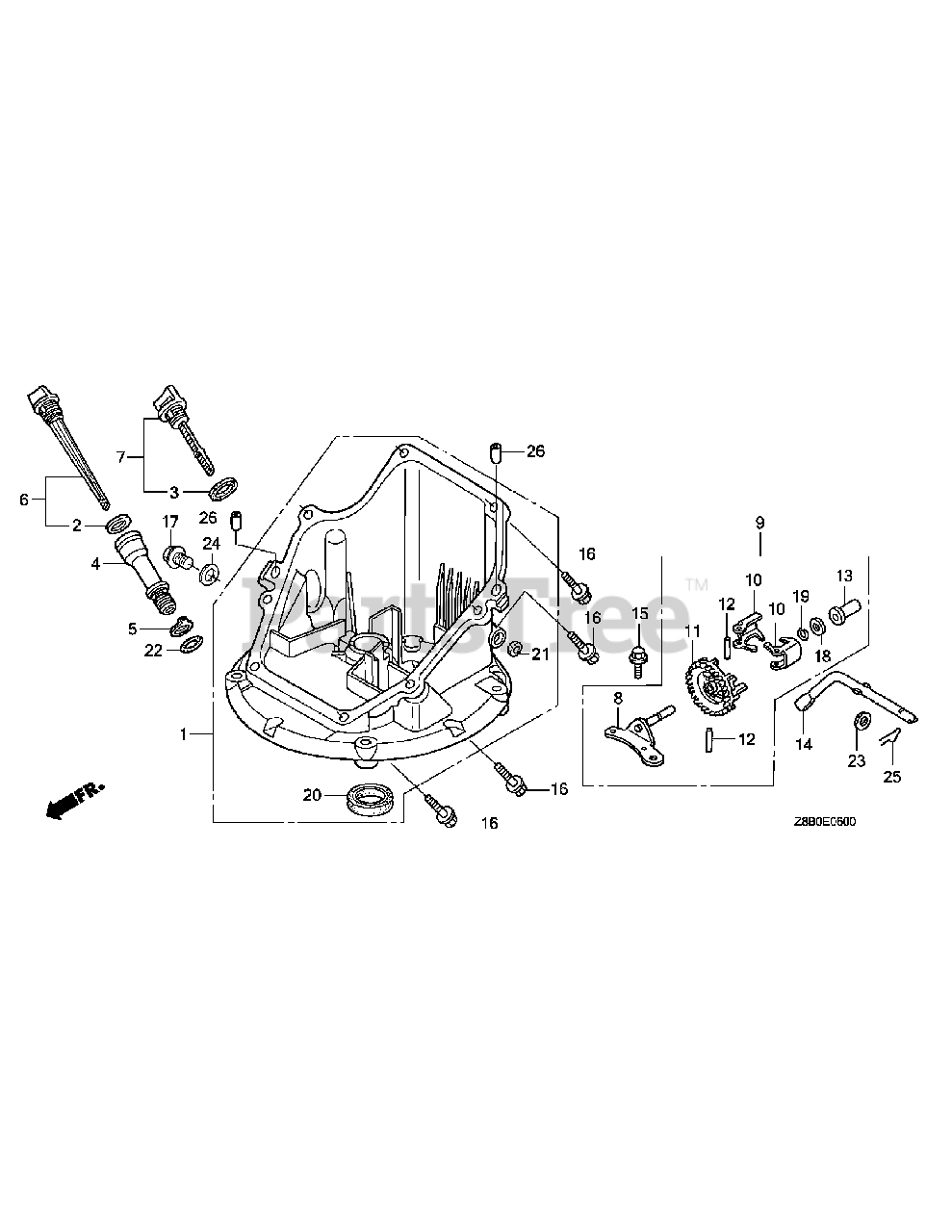

Oil Pan Parts Diagram

  • Title
1

Cub Cadet 11300-ZM0-405

PAN ASSY., OIL
(Superseded to 11300-ZM0-811)

$64.99

$

Usually ships in 3-6 days

0

2

Honda 15625-ZE6-000

PACKING, OIL FILLER CAP

$4.99

$

In Stock, only 1 left!

0

4

Honda 15631-ZM0-000

EXTENSION, OIL FILLER

$10.99

$

In Stock, only 1 left!

0

5

Honda 15639-ZM0-000

WASHER, EXTENSION LOCK

$0.99

$

In Stock, Qty 8

0

6

Honda 15650-ZM0-801

GAUGE ASSY., OIL LEVEL

$7.99

$

In Stock, only 3 left!

0

8

Honda 16508-ZM0-010

SHAFT COMP., GOVERNOR HOLDER

$7.49

$

Usually ships in 3-6 days

0

9

Honda 16510-ZM0-010

GOVERNOR ASSY.

$22.99

$

In Stock, only 2 left!

0

10

Honda 16511-ZL8-000

WEIGHT, GOVERNOR

$1.99

$

In Stock, only 4 left!

0

11

Honda 16512-ZM0-000

HOLDER, GOVERNOR WEIGHT

$13.99

$

Usually ships in 3-6 days

0

12

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

13

Honda 16531-ZE1-000

SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

14

Honda 16541-ZM0-000

SHAFT, GOVERNOR ARM

$5.49

$

In Stock, only 2 left!

0

15

Honda 90014-952-000

BOLT, FLANGE, 6X14(CT200)

$3.49

$

In Stock, only 3 left!

0

16

Honda 90121-952-000

BOLT, FLANGE, 6X25(CT200)

$2.99

$

In Stock, Qty 20+

0

17

Cub Cadet 90131-883-000

BOLT, DRAIN PLUG, 12X15
(Superseded to 90131-896-650)

$5.49

$

In Stock, Qty 11

0

18

Honda 90451-ZE1-000

WASHER, THRUST, 6MM

$2.49

$

In Stock, only 2 left!

0

19

Honda 90602-ZE1-000

CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

20

Honda 91202-ZL8-003

OIL SEAL, 28X41.25X6

$7.49

$

In Stock, Qty 16

0

21

Honda 91231-891-003

OIL SEAL, 6X11X4

$3.49

$

In Stock, only 1 left!

0

22

Honda 91303-KF0-003

O-RING, 14.8X2.4(ARAI)

$2.49

$

In Stock, only 3 left!

0

23

Honda 94101-06800

WASHER, PLAIN, 6MM

$0.99

$

In Stock, Qty 20+

0

24

Honda 94109-12000

WASHER, DRAIN PLUG, 12MM

$1.49

$

In Stock, Qty 20+

0

25

Honda 94251-08000

PIN, LOCK, 8MM

$1.99

$

In Stock, Qty 9

0

26

Honda 94301-08200

DOWEL PIN, 8X20

$2.99

$

Usually ships in 3-6 days

0
