CC 46 ES (12AE46JZ710) - Cub Cadet Walk-Behind Mower (2012) 2P70MU Cylinder Head Parts Diagram

Walk-Behind Mower

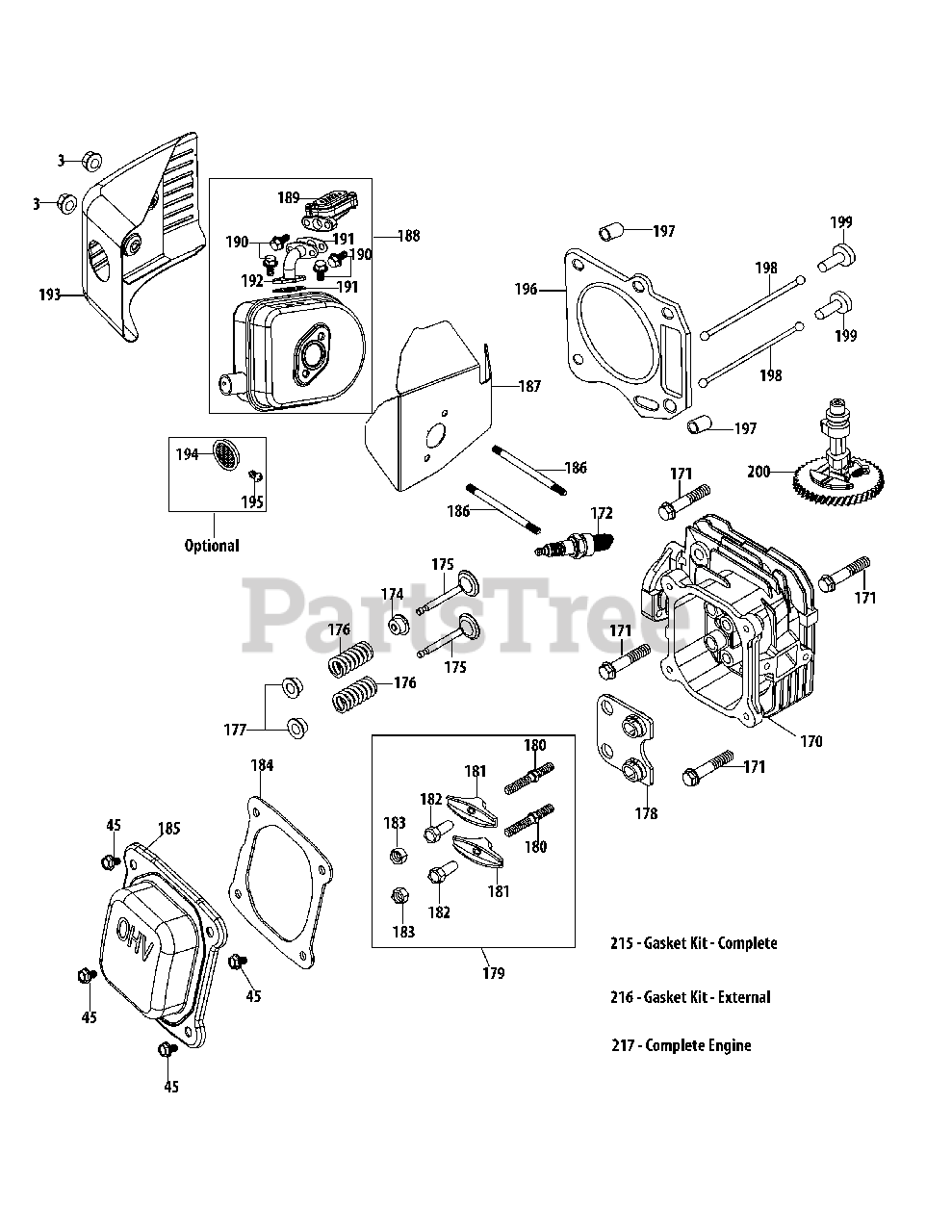

2P70MU Cylinder Head Parts Diagram

  • Title

3

Cub Cadet 712-04212

Nut M6X10mm
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-04916

Bolt M6X14

$4.49

$

In Stock, Qty 12

0

170

Cub Cadet 951-10413B

Cylinder Head Assembly

Note: (Incl.167,168,170,173-478,180-184,187,196)

$187.99

$

Usually ships in 3-6 days

0

171

Cub Cadet 710-04982

Bolt M8X54

$3.99

$

Usually ships in 3-6 days

0

172

Cub Cadet 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

174

Cub Cadet 951-11818

Intake Valve Seal

$11.99

$

Usually ships in 3-6 days

0

175

Cub Cadet 951-10345

Valve Kit

$65.99

$

Usually ships in 3-6 days

0

176

Cub Cadet 951-12116

Valve Spring

$3.99

$

Usually ships in 3-6 days

0

177

Cub Cadet 951-12000

Valve Spring Retainer

$4.49

$

In Stock, only 1 left!

0

178

Cub Cadet 951-11629

Push Rod Guide

$8.49

$

In Stock, only 2 left!

0

179

Cub Cadet 951-11606

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

180

Cub Cadet 710-04902

Rocker Arm Stud

$6.99

$

In Stock, only 4 left!

0

181

Cub Cadet 951-12001

Rocker Arm

$7.99

$

In Stock, only 1 left!

0

182

Cub Cadet 751-11123

Fulcrum Nut

$10.99

$

In Stock, only 4 left!

0

183

Cub Cadet 751-11124

Jam Nut

$9.49

$

In Stock, only 2 left!

0

184

Cub Cadet 951-11551

Valve Cover Gasket

$10.99

$

In Stock, Qty 11

0

185

Cub Cadet 951-11548

Valve Cover

$14.99

$

Usually ships in 3-6 days

0

186

Cub Cadet 710-05094

Muffler Stud M6X95

$4.49

$

In Stock, Qty 20+

0

186

Cub Cadet 951-10342

Muffler Stud Assemlby

$9.99

$

In Stock, Qty 10

0

187

Cub Cadet 951-12474

Muffler Gasket

$

$

Not available

188

Cub Cadet 951-12740

Muffler Assembly

$81.99

$

In Stock, only 1 left!

0

189

Cub Cadet 951-12741

Secondary Air Valve

$14.99

$

Usually ships in 3-6 days

0

190

Cub Cadet 710-05434

Bolt M6×12

$3.49

$

Usually ships in 3-6 days

0

191

Cub Cadet 951-12743

Secondary Air Valve Gasket

$5.99

$

Usually ships in 3-6 days

0

192

Cub Cadet 951-12742

Secondary Air Tube

$6.99

$

Usually ships in 3-6 days

0

193

Cub Cadet 951-12744

Muffler Shield

$28.99

$

Usually ships in 3-6 days

0

194

Cub Cadet 951-10351

Spark Arrestor
(Superseded to 951-10351A)

$55.99

$

Usually ships in 3-6 days

0

195

Cub Cadet 710-04983

Spark Arrestor Screw

$3.99

$

Usually ships in 3-6 days

0

196

Cub Cadet 951-11630

Cylinder Head Gasket

$12.99

$

Usually ships in 3-6 days

0

197

Cub Cadet 715-04108

Cylinder Head Dowel Pin 10×16

$4.49

$

In Stock, only 1 left!

0

198

Cub Cadet 751-10344

Push Rod Kit
(Superseded to 951-10344)

$18.99

$

Usually ships in 3-6 days

0

199

Cub Cadet 951-11607

Tappet

$8.49

$

Usually ships in 3-6 days

0

200

Cub Cadet 951-11767

Camshaft Assembly

$68.99

$

Usually ships in 3-6 days

0

215

Cub Cadet 951-10416A

Gasket Kit - Complete

Note: (Incl.47,49,75,97,103,114,130,166,168,184,187,196)

$

$

Not available

216

Cub Cadet 951-10417A

Gasket Kit - External

Note: (Incl.49,103,114,166,168,184,187)

$44.99

$

Usually ships in 3-6 days

0

217

Cub Cadet 952Z2P70MU

Complete Engine

$

$

Not available
