CC 46 ES (12AE46JA010) - Cub Cadet Walk-Behind Mower (2013) CC46ES General Assembly (CUB Engine) Parts Diagram

Walk-Behind Mower

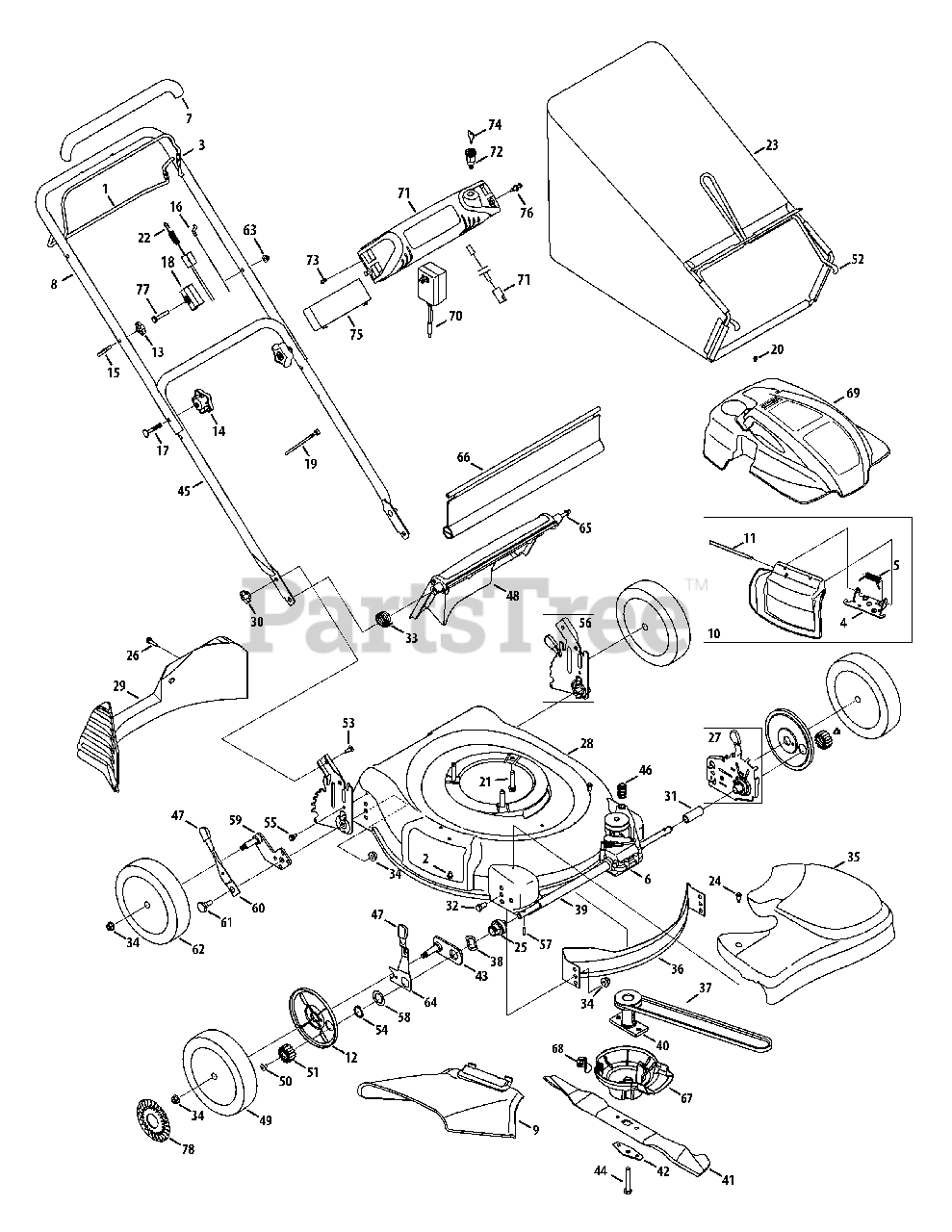

CC46ES General Assembly (CUB Engine) Parts Diagram

  • Title

1

Cub Cadet 747-1214

Drive Control

$22.99

$

In Stock, Qty 5

0

2

Cub Cadet 710-05073

Screw

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 747-1161A-0637

Blade Control

$13.99

$

In Stock, only 4 left!

0

4

Cub Cadet 17032A

Deflector Chute Adapter

$10.99

$

In Stock, only 2 left!

0

5

Cub Cadet 732-1014C

Torsion Spring

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet 918-04376B

Transmission Assembly

$

$

Not available

7

Cub Cadet 731-05564

Blade Control Cover

$18.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 749-04726-0637

Upper Handle

$

$

Not available

9

Cub Cadet 731-04177

Chute Deflector

$19.99

$

In Stock, Qty 20+

0

10

Cub Cadet 987-02055

Mulch Plug Complete

$27.99

$

In Stock, Qty 8

0

11

Cub Cadet 747-0710A

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 782-7551A

Wheel Dust Cap

$5.49

$

In Stock, Qty 20+

0

13

Cub Cadet 720-0279

Handle Knob

$4.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 720-04072A

Star Knob

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, only 1 left!

0

16

Cub Cadet 946-04589

Control Cable 37.5"

$22.99

$

In Stock, only 2 left!

0

17

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

18

Cub Cadet 731-06749

Control Cable Mount

$5.49

$

In Stock, Qty 12

0

19

Cub Cadet 926-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, only 2 left!

0

20

Cub Cadet 710-04744

Screw, HL, #12-16 x 1.00

$5.49

$

In Stock, Qty 11

0

21

Cub Cadet 710-0654A

Self-Tapping Sems Screw

$4.49

$

In Stock, only 3 left!

0

22

Cub Cadet 946-04303

Drive Cable 21"

$34.99

$

In Stock, only 1 left!

0

23

Cub Cadet 964-04054

Grass Bag
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

24

Cub Cadet 710-1650

Shoulder Screw # 12 -24

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 987-02347

Front Bearing Assembly

$17.99

$

In Stock, only 3 left!

0

26

Cub Cadet 710-1241

Screw, 1/4-15 x 1.000

$6.99

$

In Stock, Qty 19

0

27

Cub Cadet 987-02194A

Height Adjustment Ass’y - RH

$66.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 987-02193A

Height Adjustment Ass’y - LH

$66.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 787-01278

21" Deck

Variations

Cub Cadet 787-01278-0606

DECK 21" - MAJESTIC ORANGE (0606)

$

$

Not available

Cub Cadet 787-01278-0638

Mower Deck Kit, 21" Red - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 787-01278-0650

DECK 21" - RED METALLIC (0650)

$

$

Not available

Cub Cadet 787-01278-0665

DECK 21" - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 787-01278-0689

DECK 21" - POLO GREEN (0689)

$

$

Not available

Cub Cadet 787-01278-0691

DECK 21" - BLACK JACK (0691)

$

$

Not available

Cub Cadet 787-01278-4021

DECK 21" - CUB YELLOW 2 (4021)

$

$

Not available

Cub Cadet 787-01278-0709

DECK 21" - MASTERCRAFT GREEN (0709)

$

$

Not available

Cub Cadet 787-01278-0716

DECK 21" - CUB YELLOW-99 (0716)

$

$

Not available

$

$

29

Cub Cadet 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

30

Cub Cadet 712-0397A

Wing Nut

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 750-04595

Slev. Spacer 1.4" Lg.

$4.99

$

In Stock, only 1 left!

0

32

Cub Cadet 710-0216

Hex Screw, 3/8-16 x.75

$4.49

$

In Stock, Qty 16

0

33

Cub Cadet 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 931-05013A

Transmission Cover

$52.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

37

Cub Cadet 954-0637A

V-Belt

$14.99

$

In Stock, Qty 20+

0

38

Cub Cadet 936-0447

Wave Washer
(Superseded to 736-0447)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 750-04594

Sleeve Spacer 8.985" Lg.

$9.49

$

In Stock, only 1 left!

0

40

Cub Cadet 687-02195A

One Piece Blade Adapter

$41.99

$

In Stock, only 1 left!

0

41

Cub Cadet 942-0741A

21" Mulching Blade

$29.99

$

In Stock, Qty 20+

0

42

Cub Cadet 736-0524B

Blade Bell Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

43

Cub Cadet 987-02334

Pivot Plate Assembly

$9.99

$

In Stock, Qty 5

0

44

Cub Cadet 710-1257

Hex Screw 3/8-24 x 2.50

$7.99

$

In Stock, only 2 left!

0

45

Cub Cadet 749-0928A-0637

Lower Handle

$33.99

$

In Stock, only 3 left!

0

46

Cub Cadet 732-1043

Belt Tension Spring

$4.49

$

In Stock, Qty 13

0

47

Cub Cadet 720-0426

Adjustment Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

48

Cub Cadet 731-06847

Rear Discharge Door

$28.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 734-04223A

Front Wheel

$55.99

$

In Stock, Qty 20+

0

50

Cub Cadet 710-04531

Screw, 1/4-20 x .390

$5.49

$

In Stock, Qty 20+

0

51

Cub Cadet 717-1762

Gear 14T RH FWD

$13.99

$

In Stock, only 3 left!

0

51

Cub Cadet 717-1761

Gear 14T LH FWD

$13.99

$

In Stock, only 4 left!

0

52

Cub Cadet 747-04080A-0637

Grass Bag Frame
(Superseded to 747-04080A)

$59.99

$

In Stock, Qty 5

0

53

Cub Cadet 710-0703

Carriage Bolt 1/4-20

$4.49

$

In Stock, Qty 15

0

54

Cub Cadet 916-0102

Snap Ring
(Superseded to 716-0102)

$5.49

$

In Stock, Qty 20+

0

55

Cub Cadet 710-1652

TT Scr. w/Washer 1/4-20 x.625

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 987-02271A

Handle Bracket Assembly - RH

$

$

Not available

56

Cub Cadet 987-02270A

Handle Bracket Assembly - LH

$38.99

$

In Stock, only 1 left!

0

57

Cub Cadet 915-0221

Dowel Pin

$4.49

$

In Stock, Qty 13

0

58

Cub Cadet 736-0474

Washer

$6.99

$

In Stock, only 3 left!

0

59

Cub Cadet 987-02333

Pivot Arm Assembly - RH

$17.99

$

In Stock, only 1 left!

0

59

Cub Cadet 987-02332

Pivot Arm Assembly - LH

$18.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 732-04175

Rear Spring Lever

$11.99

$

In Stock, only 1 left!

0

61

Cub Cadet 738-04266

Shoulder Scr.500 Dia. x.434

$6.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 734-04226A

Rear Wheel

$54.99

$

In Stock, Qty 18

0

63

Cub Cadet 712-04064

Nut, Flglk, 1/4-20

$3.99

$

In Stock, Qty 20+

0

64

Cub Cadet 732-0706

Front Lever - RH

$15.99

$

In Stock, only 4 left!

0

64

Cub Cadet 732-0707

Front Lever - LH

$15.99

$

In Stock, only 1 left!

0

65

Cub Cadet 747-04587

Pivot Rod

$15.99

$

Usually ships in 3-6 days

0

66

Cub Cadet 731-05642A

Rear Trailing Shield

$28.99

$

In Stock, Qty 9

0

67

Cub Cadet 753-06116

Engine Baffle

$16.99

$

In Stock, only 2 left!

0

68

Cub Cadet 787-01593

Engine Baffle Bracket

$5.99

$

In Stock, Qty 5

0

69

Cub Cadet 931-04232B

Engine Shroud

$63.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 725-04329

Battery Charger
(Superseded to 725-06121B)

$47.99

$

In Stock, Qty 13

0

70

791-182534†

Battery Charger (w/LED Light)

Note: (If Equipped)

$

$

Not available

71

Cub Cadet 925-04072

Electric Start Harness Assembly

$99.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 925-04347

Key Switch

$33.99

$

Usually ships in 3-6 days

0

73

Cub Cadet 710-1667A

Screw, #10-16 x .750

$4.49

$

In Stock, Qty 13

0

74

Cub Cadet 925-0201

Key

$9.49

$

In Stock, only 1 left!

0

75

Cub Cadet 925-04323

Battery
(Superseded to 753-10804)

$114.99

$

In Stock, only 3 left!

0

76

Cub Cadet 728-0199

Rivet

$4.49

$

In Stock, Qty 15

0

77

Cub Cadet 710-0606

Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 9

0

78

Cub Cadet 731-07048

Hub Cap

$10.99

$

In Stock, Qty 5

0
