CC 46 ES (12AE46JA010) - Cub Cadet Walk-Behind Mower (2013) 2P70M0D Crankcase Parts Diagram

Walk-Behind Mower

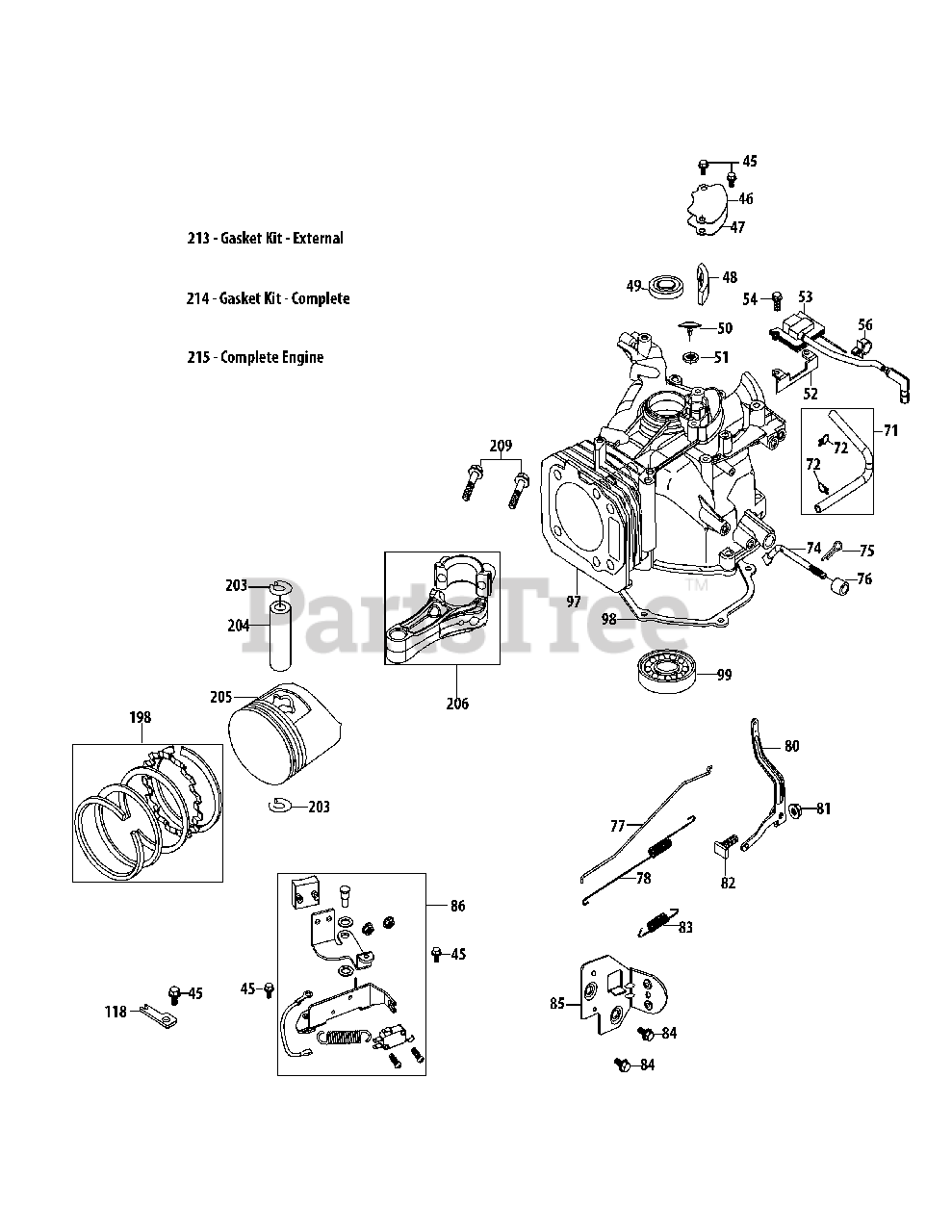

2P70M0D Crankcase Parts Diagram

  • Title

45

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-12684

Breather Cover Plate

$6.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 951-11613

Breather Gasket
(Superseded to 951-11729)

$5.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 951-11762

Breather Screen

$

$

Not available

49

Cub Cadet 951-11545

Upper Crankshaft Seal
(Superseded to 951-11545A)

$10.99

$

In Stock, only 2 left!

0

50

Cub Cadet 951-12685

Breather Valve

$5.99

$

In Stock, only 1 left!

0

51

Cub Cadet 951-12686

Breather Valve Base

$5.99

$

In Stock, only 1 left!

0

52

Cub Cadet 951-11619

Ignition Coil Bracket

$3.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 951-10854

Ignition Coil Assembly

$96.99

$

Usually ships in 3-6 days

0

54

Cub Cadet 710-04979

Bolt M6X18

$3.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 951-11618

Ignition Wire Clip

$3.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 951-11260

Breather Hose Assembly

$5.99

$

Usually ships in 3-6 days

0

72

Cub Cadet 726-04101

Breather Hose Clamp

$4.49

$

In Stock, only 1 left!

0

74

Cub Cadet 951-11608

Governor Arm Shaft
(Superseded to 951-11621)

$9.99

$

Usually ships in 3-6 days

0

75

Cub Cadet 714-04074

Governor Arm Shaft Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

76

Cub Cadet 951-11574

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

77

Cub Cadet 951-11259

Throttle Linkage

$7.99

$

Usually ships in 3-6 days

0

78

Cub Cadet 951-11258

Throttle Linkage Spring
(Superseded to 951-11258A)

$4.49

$

In Stock, Qty 5

0

80

Cub Cadet 951-11238

Governor Arm

$10.99

$

Usually ships in 3-6 days

0

81

Cub Cadet 712-04212

Governor Arm Nut M6
(Superseded to 712-05015)

$6.99

$

In Stock, Qty 6

0

82

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 951-11273

Governor Spring

$6.99

$

In Stock, only 1 left!

0

84

Cub Cadet 710-04915

Bolt M6X12

$4.49

$

In Stock, only 3 left!

0

85

Cub Cadet 951-12472

Primer Bracket

$

$

Not available

86

Cub Cadet 751-10858B

Brake Assembly
(Superseded to 951-10858B)

$

$

Not available

97

Cub Cadet 751-10857C

Short Block Assembly
(Superseded to 951-10857C)

Note: (Incl.45-51,61,74-76,97-100,104,114-119,129-131,139,168,169,185,188,193,196-198,203-206)

$

$

Not available

98

Cub Cadet 951-11763

Crankcase Cover Gasket

$13.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-11369

Main Bearing

$34.99

$

Usually ships in 3-6 days

0

118

Cub Cadet 951-11625

Governor Gear Mounting Plate

$4.49

$

Usually ships in 3-6 days

0

198

Cub Cadet 951-12111

Piston Ring Set
(Superseded to 751P12111A)

$6.99

$

In Stock, only 2 left!

0

203

Cub Cadet 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

204

Cub Cadet 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

205

Cub Cadet 951-11634

Piston

$

$

Not available

206

Cub Cadet 951-11768

Connecting Rod Assembly

$

$

Not available

209

Cub Cadet 710-05162

Connecting Rod Bolt

$4.49

$

Usually ships in 3-6 days

0

213

Cub Cadet 951-10417A

Gasket Kit - External

Note: (Incl.47,104,115,167,169,185,188)

$44.99

$

Usually ships in 3-6 days

0

214

Cub Cadet 951-10416A

Gasket Kit - Complete

Note: (Incl.47,49,76,99,104,115,131,167,169,185,188,193)

$

$

Not available

215

Cub Cadet 952Z2P70M0D

Complete Engine
(Superseded to 952Z2P70MU)

$

$

Not available
