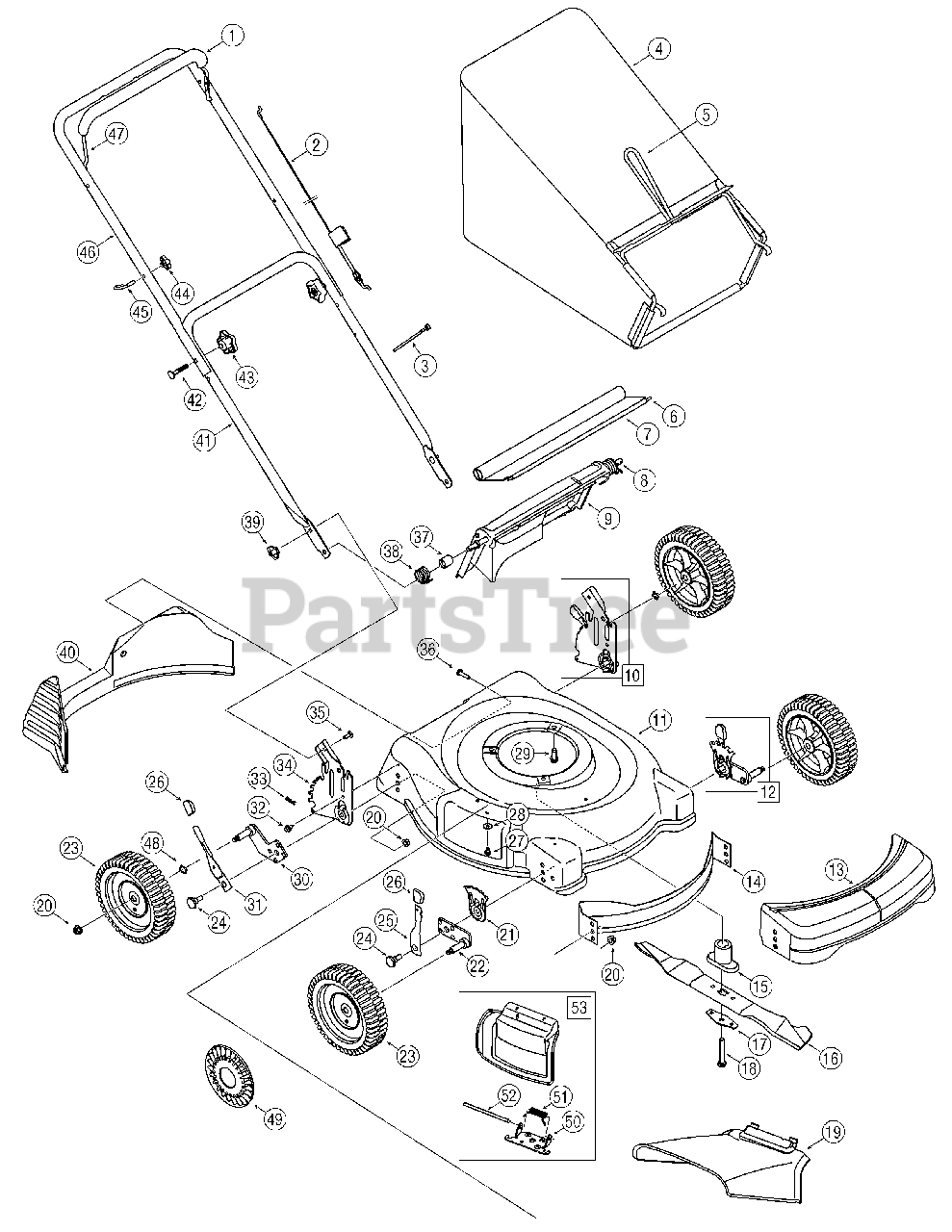

CC 439 (11A-439Q710) - Cub Cadet Walk-Behind Mower (2006) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 731-05564

Bail Cover

$18.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 746-1130

Control Cable 40-inch
(Superseded to 946-1130)

$17.99

$

In Stock, Qty 7

0

3

Cub Cadet 726-0240

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 664-04054

Grass Bag Assembly
(Superseded to 964-04007A)

$130.99

$

In Stock, Qty 15

0

5

Cub Cadet 747-04080

Grass Bag Frame
(Superseded to 747-04080A)

Variations

Cub Cadet 747-04080-0637

Grass Bag Frame, 21" - POWDER BLACK (0637)

$59.99

$

In Stock, Qty 5

0

$59.99

$

In Stock, Qty 5

0

6

Cub Cadet 732-0700

Trailshield Wire
(Superseded to 732P0700)

$4.49

$

In Stock, only 4 left!

0

7

Cub Cadet 731-04998

Trailshield

$31.99

$

In Stock, Qty 7

0

8

Cub Cadet 747-04035

Pivot Rod
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-04134A

Rear Door
(Superseded to 753-06366)

$46.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 687-02069

Height Adj. Bracket Assy - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 687-02068

Height Adj. Bracket Assy - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 787-01279

21-inch Deck

Variations

Cub Cadet 787-01279-4043

DECK-21" - CRAFTSMAN METALLIC GRAY (4043)

$

$

Not available

Cub Cadet 787-01279-0716

DECK-21" - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 787-01279-0729

21" DECK (STORM GREY) - STORM GRAY (0729)

$

$

Not available

$

$

12

Cub Cadet 687-02075A

Hgt. Adj. Assy - LH (8-inch Whl)
(Superseded to 987-02075B)

$35.99

$

In Stock, only 2 left!

0

12

Cub Cadet 687-02074A

Hgt. Adj. Assy - RH (8-inch Whl)
(Superseded to 987-02074B)

$40.99

$

In Stock, only 2 left!

0

13

Cub Cadet 731-1523A

Front End Cover, 21-inch

$

$

Not available

14

Cub Cadet 782-5002B

Front Baffle
(Superseded to 782P5002B)

$

$

Not available

15

Cub Cadet 748-04082

Blade Adapter

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 742-0741

21-inch Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

17

Cub Cadet 736-0524B

Bell Blade Support
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

18

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5

$7.99

$

In Stock, only 1 left!

0

19

Cub Cadet 731-04177

Side Discharge Chute

$19.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 787-01290

Height Adjustment Plate
(Superseded to 787-01290A)

$12.99

$

In Stock, only 2 left!

0

22

Cub Cadet 687-02076A

Pivot Arm Assy - RH
(Superseded to 987-02076A)

$

$

Not available

22

Cub Cadet 687-02077A

Pivot Arm Assy - LH
(Superseded to 987-02077A)

$17.99

$

In Stock, Qty 6

0

23

Cub Cadet 734-04226

Wheel 8 x 2.125 COG Idle BB
(Superseded to 734-04226A)

$54.99

$

In Stock, Qty 18

0

24

Cub Cadet 738-0507B

Shoulder Screw .5 x .434

$4.49

$

In Stock, only 4 left!

0

25

Cub Cadet 732-0404

Spring Lever
(Superseded to 94832)

$10.99

$

In Stock, only 3 left!

0

26

Cub Cadet 720-0426

Height Adjust Knob
(Superseded to 731-13116-1)

$13.99

$

In Stock, only 1 left!

0

27

Cub Cadet 710-0599

TT Screw 1.4-20 x .50

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 736-0270

Bell Washer .265 x .75 x .062

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 710-0654A

TT Sems Screw 3.8-16 x 1.00

$4.49

$

In Stock, only 4 left!

0

30

Cub Cadet 687-02071A

Pivot Arm Assy - RH
(Superseded to 987-02071A)

$20.99

$

In Stock, only 1 left!

0

30

Cub Cadet 687-02070A

Pivot Arm Assy - LH
(Superseded to 987-02070A)

$20.99

$

In Stock, only 1 left!

0

31

Cub Cadet 732-04175

Spring Lever

$11.99

$

In Stock, only 1 left!

0

32

Cub Cadet 710-1652

TT Screw 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 714-0104

Int. Cotter Pin .072 dia. X 1.13 lg

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 787-01292

Rear Handle Bracket - RH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 787-01291

Rear Handle Bracket - LH
(Superseded to 753-05994)

$82.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 710-0703

Carriage Screw 1/4-20 x .75

$4.49

$

In Stock, Qty 15

0

36

Cub Cadet 710-04371

Screw HL 1/4-15 x 1.00

$6.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 750-04162

Spacer
(Superseded to 950-04162)

$

$

Not available

38

Cub Cadet 732-04090A

Torsion Spring - RH

$7.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 732-04089A

Torsion Spring - LH

$7.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 712-0397

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

40

Cub Cadet 731-04150C

Rear Baffle

$42.99

$

In Stock, only 2 left!

0

41

Cub Cadet 749-0928A

Lower Handle
(Superseded to 749-0928A-0637)

Variations

Cub Cadet 749-0928A-0637

Lower Handle - POWDER BLACK (0637)

$33.99

$

In Stock, only 2 left!

0

$33.99

$

In Stock, only 2 left!

0

42

Cub Cadet 710-1174

Carriage Bolt 5/16-18 x 2.0

$7.49

$

In Stock, Qty 20+

0

43

Cub Cadet 720-04072

Star Knob
(Superseded to 720-04072A)

$6.99

$

In Stock, Qty 20+

0

44

Cub Cadet 720-0279

Handle Knob

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 710-1205

Eye Bolt

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 749-1092A

Upper Handle

Variations

Cub Cadet 749-1092A-0637

Upper Handle, Black - POWDER BLACK (0637)

$48.99

$

In Stock, only 1 left!

0

Cub Cadet 749-1092A-0638

HANDLE-UPPER - MTD/TROY-BILT RED (0638)

$48.99

$

Usually ships in 3-6 days

0

$48.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 747-1161A

Blade Control (Bail)

Variations

Cub Cadet 747-1161A-0637

Operator Bail, Black - POWDER BLACK (0637)

$13.99

$

In Stock, only 1 left!

0

$13.99

$

In Stock, only 2 left!

0

48

Cub Cadet 736-0504

Wave Washer .51 x .75 x 1.68
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 9

0

49

Cub Cadet 731-0982A

Hubcap
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 18

0

50

Cub Cadet 17032A

Chute Deflector Adapter

$10.99

$

In Stock, only 2 left!

0

51

Cub Cadet 732-1014

Torsion Spring .290 ID x 1.68
(Superseded to 732-1014C)

$7.99

$

In Stock, Qty 20+

0

52

Cub Cadet 747-0710

Hinge Pin
(Superseded to 747-0710A)

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 987-02055

Mulch Plug Assembly

$27.99

$

In Stock, Qty 10

0
