CC 4165 (41BDC46G912) - Cub Cadet String Trimmer (2009) General Assembly Parts Diagram

String Trimmer

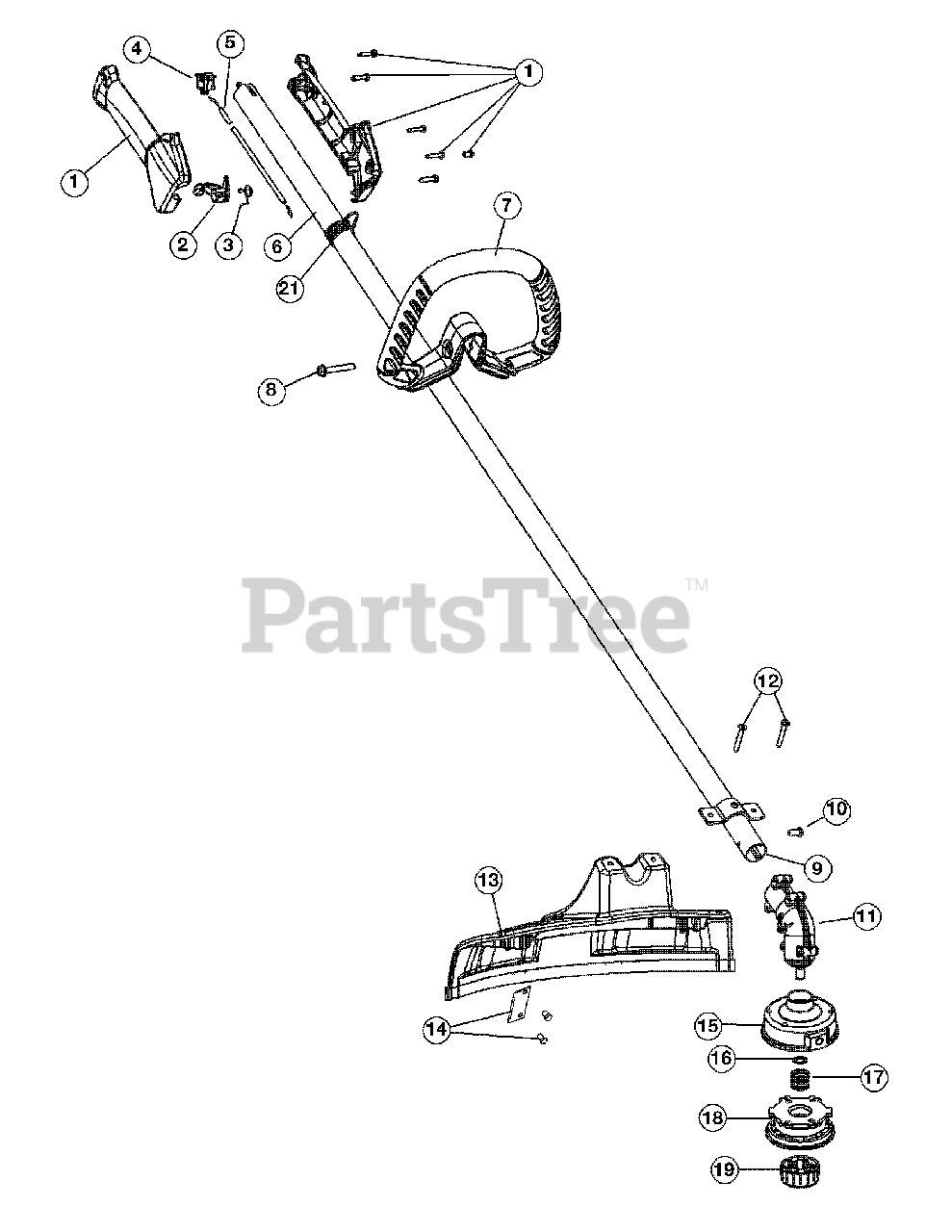

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04234

Throttle Housing Assembly

$21.99

$

In Stock, Qty 7

0

2

Cub Cadet 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

Cub Cadet 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

Cub Cadet 753-06163

Drive Shaft Housing

$

$

Not available

7

Cub Cadet 753-06039

D-Handle Assembly

$11.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-06040

Bolt

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 753-05167

Flexible Drive Shaft

$

$

Not available

10

Cub Cadet 7039

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

11

Cub Cadet 753-06140

Gearbox Assembly
(Superseded to 753-06571)

$45.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-06125

Shield Mounting Screws

$6.99

$

In Stock, only 4 left!

0

13

Cub Cadet 753-06123

Shield Assembly

$20.99

$

In Stock, Qty 10

0

14

Cub Cadet 753-06126

Blade Assembly

$3.49

$

In Stock, Qty 5

0

15

Cub Cadet 791-153619

Out Spool Assembly

$27.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

18

Cub Cadet 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

19

Cub Cadet 791-153066B

Bump Know Assembly

$13.99

$

In Stock, Qty 18

0

Cub Cadet 753-1156

Reel & Line Assembly
(Superseded to 953-1156)

Note: Not shown

$31.99

$

In Stock, only 1 left!

0
