CC 4165 (41ADC46G912) - Cub Cadet String Trimmer (2008) General Assembly Parts Diagram

String Trimmer

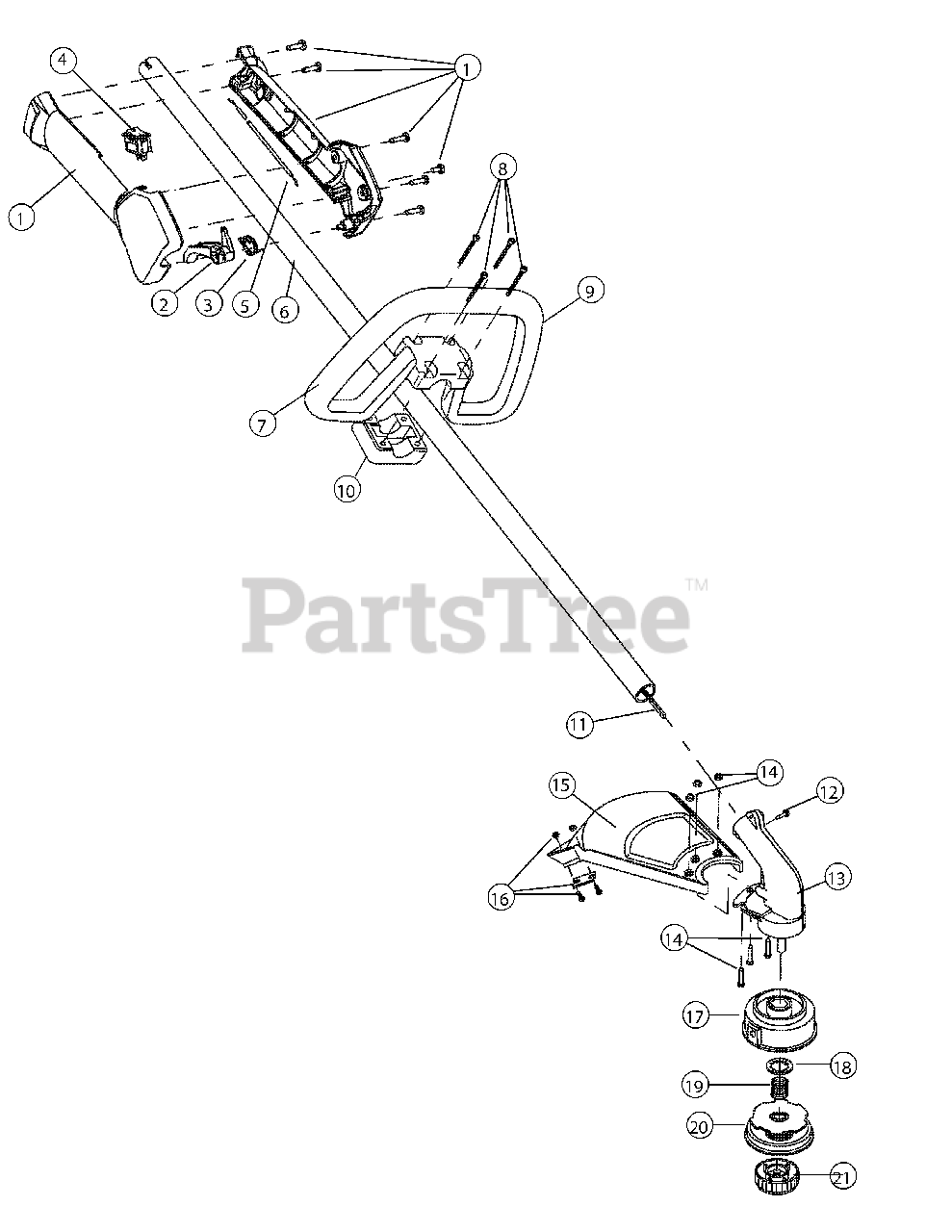

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-04234

Throttle Housing Assembly

Note: (Incl. Ref. No. 2-4)

$21.99

$

In Stock, Qty 7

0

2

Cub Cadet 753-04119

Throttle Trigger

$7.49

$

In Stock, Qty 18

0

3

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

4

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

5

Cub Cadet 753-05266

Throttle Cable Assembly

$20.99

$

In Stock, Qty 12

0

6

Cub Cadet 753-05186

Upper Drive Shaft Housing Assembly

$

$

Not available

7

Cub Cadet 791-180869

Deluxe D-Handle Assembly

Note: (Incl. Ref. No. 8-10)

$

$

Not available

8

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 791-182167

Deluxe D-Handle

$76.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-182168

Bottom Clamp

$

$

Not available

11

Cub Cadet 753-05184

Flexible Drive Shaft

$

$

Not available

12

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

13

Cub Cadet 753-05183

Gear Box Assembly

Note: (Incl. Ref. No.17-21)

$

$

Not available

14

Cub Cadet 791-180547

Shield Mounting Hardware

$

$

Not available

15

Cub Cadet 791-180548

Shield Assembly

Note: (Incl. Ref. No. 16)

$

$

Not available

16

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

17

Cub Cadet 791-153619

Outer Spool Assembly

Note: (Incl. Ref. No. 18)

$27.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 791-610660

Retainer

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 791-610317B

Spring

$10.99

$

In Stock, only 2 left!

0

20

Cub Cadet 753-1155

Inner Reel

$22.99

$

In Stock, Qty 20+

0

21

Cub Cadet 791-153066B

Bump Head Knob Assembly

$13.99

$

In Stock, Qty 18

0

Cub Cadet 791-180120

Replacement Line, 0.095 Diameter
(Superseded to 953-1156)

Note: Not Shown

$31.99

$

In Stock, only 1 left!

0

Cub Cadet 753-1156

Reel and Line Assembly
(Superseded to 953-1156)

Note: Not Shown

$31.99

$

In Stock, only 1 left!

0
