CC 4105 (41ADC05G912) - Cub Cadet String Trimmer (2008) Engine Assembly Parts Diagram

String Trimmer

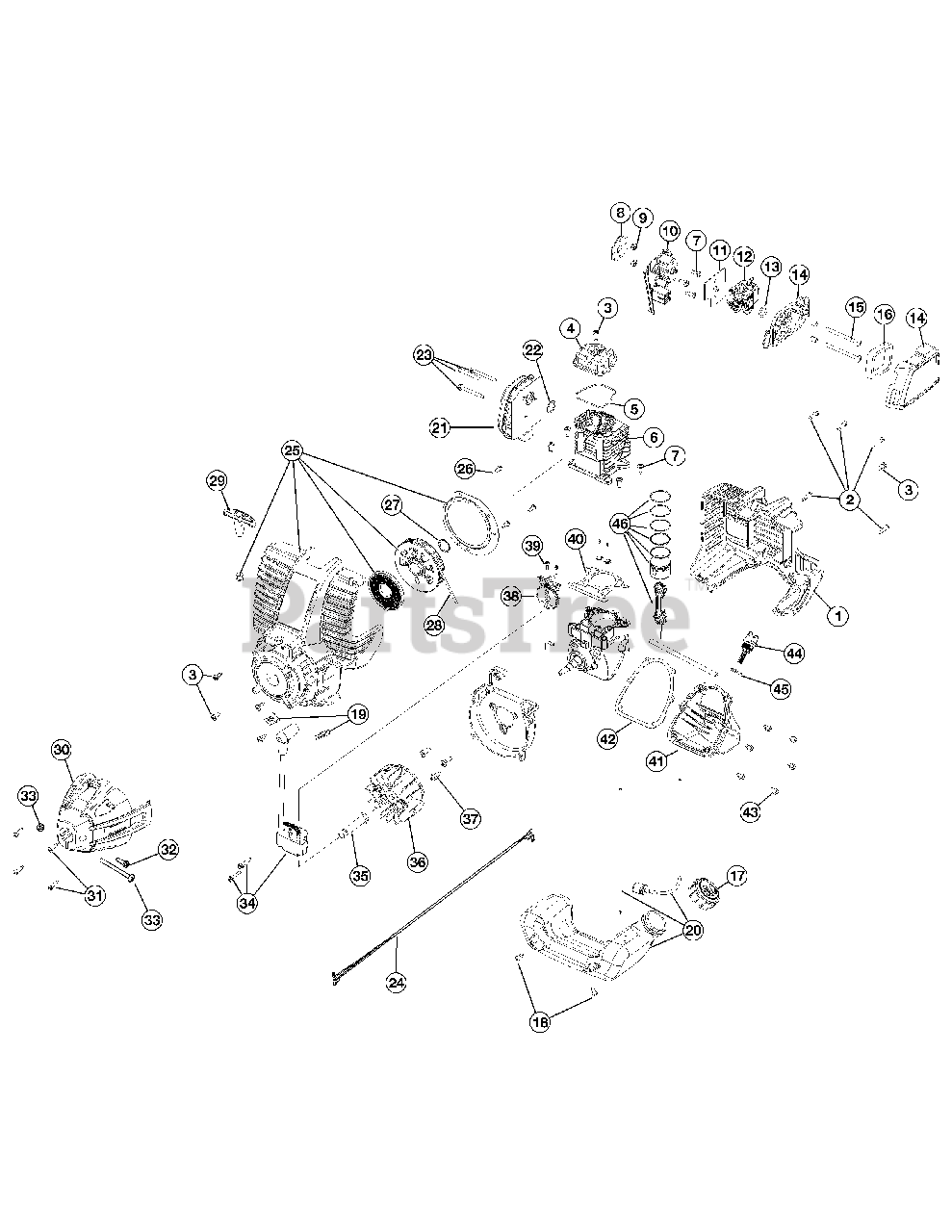

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05449

Engine Cover

$23.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 753-05377

Screw
(Superseded to 710-04604)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 753-05209

Valve Cover

$18.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 753-05210

Valve Cover Gasket
(Superseded to 721-04132)

$9.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 753-05438

Cylinder Assembly (includes 5, 7 & 40)

$114.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

8

Cub Cadet 753-05247

Insulator Gasket

$

$

Not available

9

Cub Cadet 753-05248

Nut
(Superseded to 712-04099)

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-05452

Insulator (includes 11)

$17.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-05439

Carburetor Gasket

$

$

Not available

12

Cub Cadet 753-05440

Carburetor w/Primer

$71.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

14

Cub Cadet 753-05441

Air Filter Cover Assembly (includes 16)

$26.99

$

In Stock, only 3 left!

0

15

Cub Cadet 753-05253

Air Filter Mounting Screw
(Superseded to 710-04517)

$5.49

$

In Stock, Qty 20+

0

16

Cub Cadet 753-05442

Air Filter

$12.99

$

In Stock, Qty 12

0

17

Cub Cadet 753-05289

Fuel Cap

$22.99

$

In Stock, Qty 8

0

18

Cub Cadet 791-181930

Screw

$6.99

$

In Stock, only 1 left!

0

19

Cub Cadet 791-182366

Clip Nut

$5.99

$

In Stock, only 2 left!

0

20

Cub Cadet 753-05443

Fuel Tank Assembly (includes 17)

$

$

Not available

21

Cub Cadet 753-05444

Muffler Assembly (includes 22 & 23)

$43.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 9

0

23

Cub Cadet 753-05246

Muffler Mounting Screw
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

24

Cub Cadet 753-05264

Lead Wire

$16.99

$

In Stock, only 1 left!

0

25

Cub Cadet 753-05445

Starter Housing Assembly (includes 3, 19 & 26-29)

$87.99

$

In Stock, Qty 6

0

26

Cub Cadet 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 753-05260

Push Nut
(Superseded to 712-04096)

$

$

Not available

28

Cub Cadet 791-613103

Rope

$10.99

$

In Stock, only 2 left!

0

29

Cub Cadet 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

30

Cub Cadet 753-05446

Clutch Cover Assembly (includes 31-33)

$

$

Not available

31

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 2 left!

0

33

Cub Cadet 753-04291

Clamping Screw Assembly

$

$

Not available

34

Cub Cadet 753-05447

Ignition Module Assembly

$103.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 791-610303

Square Nut Drive

$

$

Not available

36

Cub Cadet 753-05240

Flywheel

$76.99

$

In Stock, only 2 left!

0

37

Cub Cadet 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

38

Cub Cadet 753-04919

Cam Bracket Assembly (includes 39)

$36.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 791-181012

Cam Bracket Screw

$

$

Not available

40

Cub Cadet 791-182374

Cylinder Gasket

$

$

Not available

41

Cub Cadet 791-182377

Oil Pan (includes 42 & 43)

$

$

Not available

42

Cub Cadet 791-181018

Oil Pan Gasket

$

$

Not available

43

Cub Cadet 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

44

Cub Cadet 791-182378

Dipstick Assembly (includes 45)

$10.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 791-182290

O-Ring

$4.99

$

In Stock, Qty 9

0

46

Cub Cadet 753-05458

Piston Assembly

$

$

Not available

Cub Cadet 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: not shown

$7.49

$

In Stock, Qty 7

0

Cub Cadet 753-05459

Shortblock Assembly (includes 3-7 & 34-46)

Note: not shown

$

$

Not available
