CC 4090 (41ADC49C712) - Cub Cadet String Trimmer (2005) Engine Parts Diagram

String Trimmer

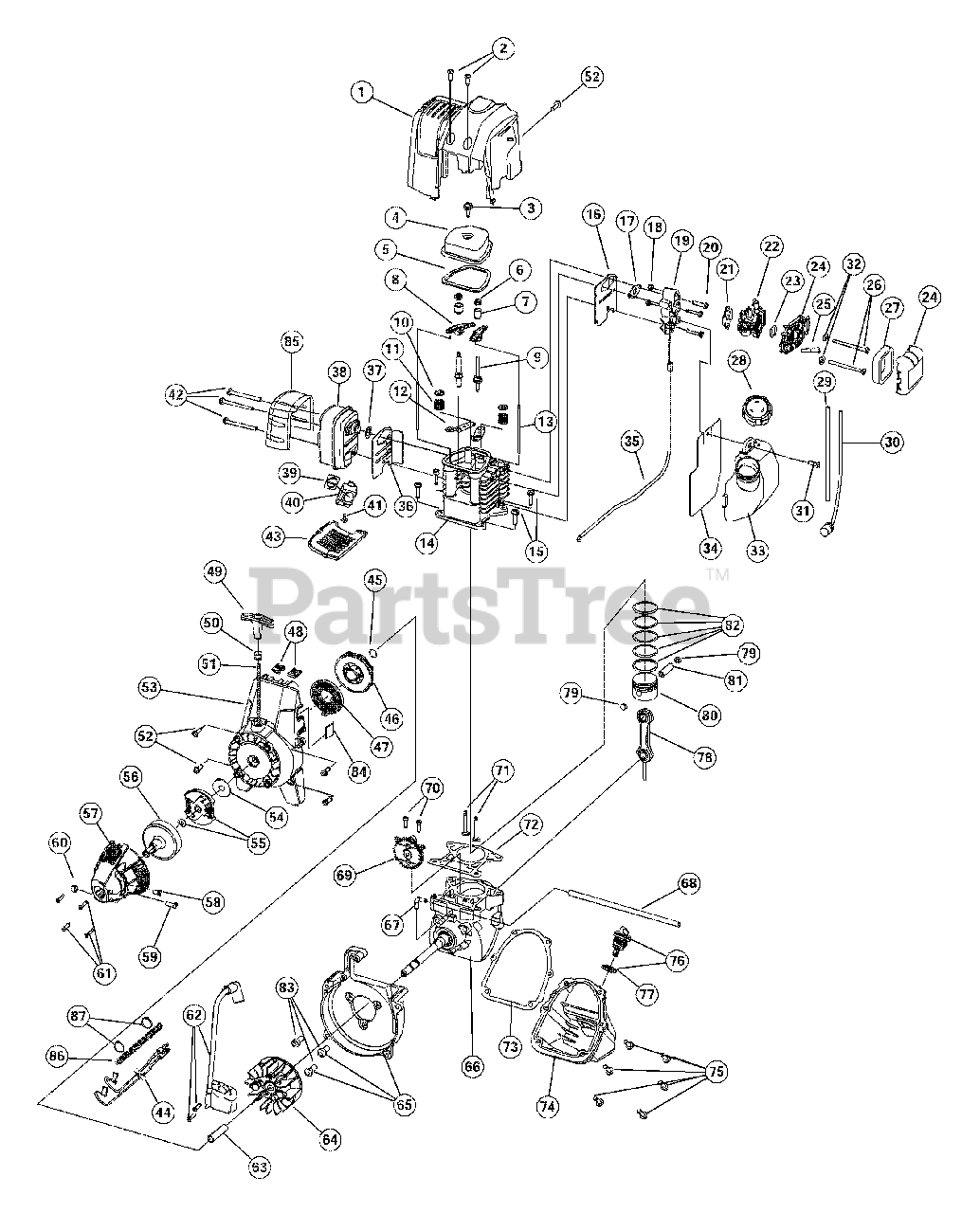

Engine Parts Diagram

  • Title
1

Cub Cadet 753-04083

Engine Cover

$

$

Not available

2

Cub Cadet 791-181930

Engine Cover Screws

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182099

Valve Cover Gasket.

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-182340

Rocker Adjustment Nut

$

$

Not available

7

Cub Cadet 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

$

$

Not available

9

Cub Cadet 791-182341

Rocker Arm Stud

$

$

Not available

10

Cub Cadet 791-182103

Valve Spring Retainer

$

$

Not available

11

Cub Cadet 791-181038

Valve Spring

$

$

Not available

12

Cub Cadet 791-182102

Push Rod Guide

$

$

Not available

13

$

$

Not available

14

Cub Cadet 753-04816

Cylinder Assembly (includes 9, 15, 71 & 72)

$

$

Not available

15

Cub Cadet 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

16

Cub Cadet 791-182345

Intake Baffle

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

Cub Cadet 791-182347

Carburetor Mount (includes 18)

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 791-182348

Carburetor Mount Screw

$

$

Not available

21

Cub Cadet 791-182732

Carburetor Gasket

$

$

Not available

22

Cub Cadet 753-04296

Carburetor with Primer

$82.99

$

In Stock, only 3 left!

0

23

Cub Cadet 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 19

0

24

Cub Cadet 753-04305

Air Filter/Choke Cover Assembly includes 27)

$

$

Not available

25

Cub Cadet 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

26

Cub Cadet 791-181750

Air Filter Mounting Screw

$6.49

$

Usually ships in 3-6 days

0

27

$3.99

$

In Stock, Qty 20+

0

28

$

$

Not available

29

Cub Cadet 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

30

Cub Cadet 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 9

0

31

Cub Cadet 753-04510

Screw
(Superseded to 710-04185)

$

$

Not available

$4.99

$

In Stock, Qty 5

0

33

Cub Cadet 753-04918

Fuel Tank Assembly (includes 28-30)

$

$

Not available

34

Cub Cadet 791-182356

Fuel Tank Shield

$

$

Not available

35

Cub Cadet 753-04746

Throttle Cable

$

$

Not available

36

Cub Cadet 791-182358

Muffler Baffle

$

$

Not available

37

Cub Cadet 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 791-182359

Muffler (includes 37, 39-41)

$

$

Not available

39

Cub Cadet 791-180890

Spark Arrestor Screen

$

$

Not available

40

Cub Cadet 791-181045

Screen Cover

$

$

Not available

$

$

Not available

42

Cub Cadet 791-182361

Muffler Mounting Screw

$

$

Not available

43

Cub Cadet 753-04092

Muffler Cover

$

$

Not available

44

Cub Cadet 791-182804

Switch Wire Assembly

$

$

Not available

$10.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 753-1199

Recoil Pulley

$24.99

$

In Stock, only 4 left!

0

47

Cub Cadet 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

48

$5.99

$

In Stock, only 2 left!

0

49

Cub Cadet 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

50

$10.99

$

In Stock, only 2 left!

0

$10.99

$

In Stock, only 2 left!

0

52

Cub Cadet 791-181020

Starter Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

53

Cub Cadet 753-04912

Starter Housing Assembly (includes 45-52)

$

$

Not available

54

Cub Cadet 791-182396

Clutch Washer
(Superseded to 9162-1)

$4.49

$

In Stock, only 3 left!

0

55

Cub Cadet 753-1238

Clutch wf Spacer

$45.99

$

In Stock, Qty 13

0

56

Cub Cadet 791-153592

Clutch Drum

$51.99

$

In Stock, Qty 12

0

57

Cub Cadet 753-1239

Clutch Cover

$

$

Not available

58

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

$

$

Not available

$

$

Not available

61

Cub Cadet 791-181345

Clutch Cover Screw

$4.49

$

In Stock, Qty 20+

0

62

Cub Cadet 753-04298

Ignition Module with Screws

$

$

Not available

$

$

Not available

64

$

$

Not available

65

Cub Cadet 791-182743

Shroud Assembly (includes 83)

$

$

Not available

66

Cub Cadet 791-182376

Crankcase Assembly (includes 67 & 68)

$

$

Not available

67

$

$

Not available

68

Cub Cadet 791-182379

Breather Hose

$4.99

$

In Stock, Qty 11

0

69

Cub Cadet 753-04919

Cam Bracket Assembly

$36.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 791-181012

Cam Bracket Screw

$

$

Not available

71

Cub Cadet 791-181040

Valves, Intake and Exhaust

$

$

Not available

72

Cub Cadet 791-182374

Cylinder Gasket

$

$

Not available

73

Cub Cadet 791-181018

Oil Pan Gasket

$

$

Not available

74

Cub Cadet 791-182377

Oil Pan (includes 73 & 75)

$

$

Not available

75

Cub Cadet 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

76

Cub Cadet 791-182378

Dipstick Assembly (Includes 77)

$10.99

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, Qty 9

0

78

Cub Cadet 791-181009

Connecting Rod

$

$

Not available

79

Cub Cadet 791-181008

Wrist Pin Button

$

$

Not available

80

Cub Cadet 753-1243

Piston (includes 82)
(Superseded to 753-04878)

$

$

Not available

81

$5.99

$

In Stock, only 1 left!

0

82

Cub Cadet 791-182295

Piston Ring Set
(Superseded to 753-04801)

$

$

Not available

83

Cub Cadet 791-181861

Shroud Screw

$4.49

$

Usually ships in 3-6 days

0

$7.99

$

In Stock, only 1 left!

0

85

Cub Cadet 791-182360

Heat Sheild

$

$

Not available

86

Cub Cadet 753-04098

Wire Cover

$

$

Not available

87

Cub Cadet 791-160428

Cable Clamp

$

$

Not available

Cub Cadet 791-180852B

Spark Plug Not Shown
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 7

0

Cub Cadet 753-04818

Short Block Assembly (includes 3-14,65-82); Not Shown

$

$

Not available

Cub Cadet 791-180142

Starter Pawl Repair Kit Not Shown
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0
