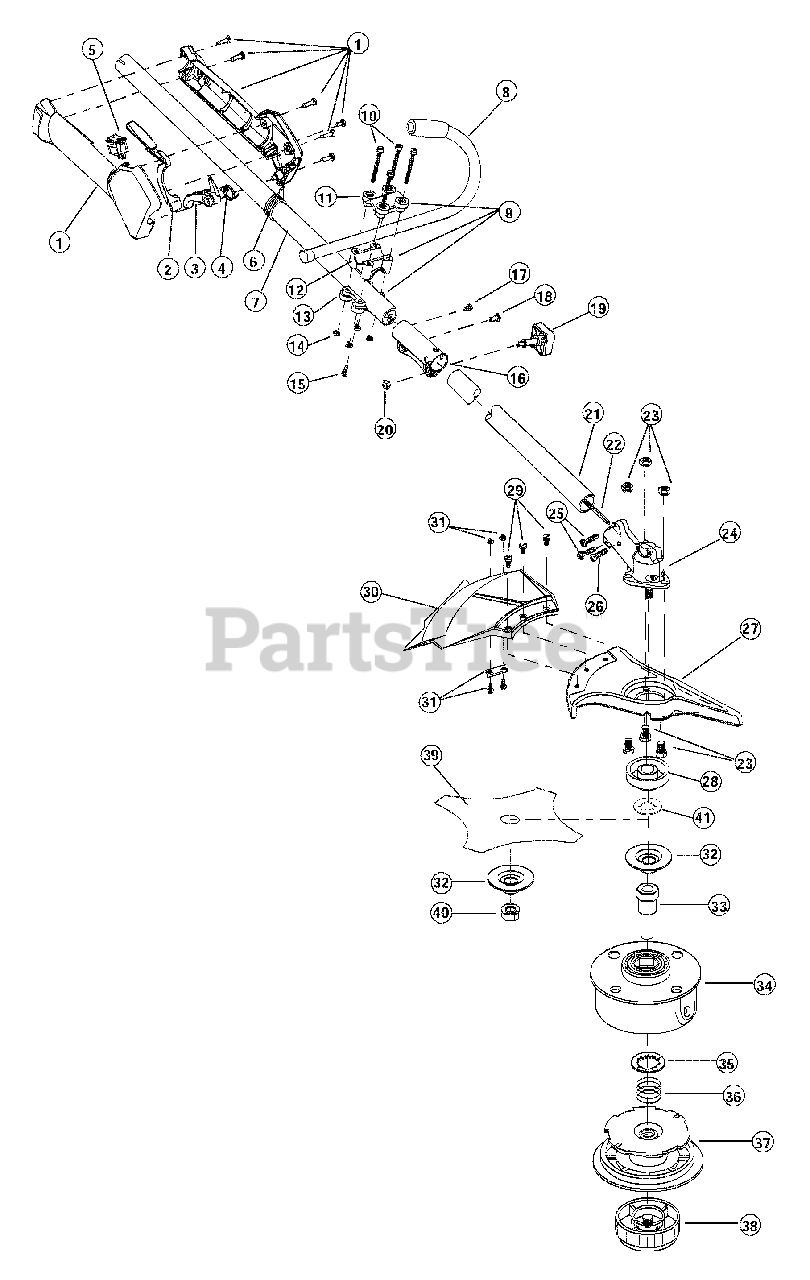

CC 4090 (41ADC49C712) - Cub Cadet String Trimmer (2005) Boom And Trimmer Parts Diagram

String Trimmer

Boom And Trimmer Parts Diagram

  • Title

1

Cub Cadet 753-04339

Throttle Housing and Trigger Assembly
(Superseded to 753-05321)

Note: (includes 2-4)

$

$

Not available

2

Cub Cadet 753-04340

Throttle Trigger Lock-Out

$

$

Not available

3

Cub Cadet 791-00058

Throttle Trigger
(Superseded to 753-06754)

$7.49

$

In Stock, only 1 left!

0

4

Cub Cadet 791-182690

Throttle Trigger Spring

$7.99

$

In Stock, only 2 left!

0

5

Cub Cadet 791-182405

Switch Assembly

$10.99

$

In Stock, Qty 12

0

6

Cub Cadet 791-610327

Harness Clip

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-04503

Upper Drive Shaft Housing Assembly

$

$

Not available

8

Cub Cadet 791-181099

J-Handle Assembly

$

$

Not available

9

Cub Cadet 791-683295

Handle Bracket Assembly

Note: (includes 10-15)

$45.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181811

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 791-181812

Upper Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 791-181813

Middle Handle Clamp

$12.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 791-181814

Lower Handle Clamp

$8.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 791-181815

Nut

$4.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

16

Cub Cadet 791-181616B

Split Boom Coupler
(Superseded to 753-1190)

Note: (includes 17-20)

$23.99

$

In Stock, only 1 left!

0

17

Cub Cadet 791-182057

Screw

$4.49

$

In Stock, only 3 left!

0

18

Cub Cadet 791-181617

Bolt

$5.49

$

In Stock, Qty 11

0

19

Cub Cadet 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

20

Cub Cadet 753-04386

Knob Retaining Nut
(Superseded to 712-04018A)

$4.49

$

In Stock, Qty 5

0

21

Cub Cadet 791-182541

Lower Drive Shaft Housing Assembly

$92.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 791-613300

Lower Flexible Drive Shaft

$88.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 791-182200

Shield Mount Screw Assembly

$6.99

$

In Stock, only 2 left!

0

24

Cub Cadet 791-182193

2 piece Gearbox Assembly

Note: (includes 25, 26, 28, 41)

$99.99

$

In Stock, only 2 left!

0

25

Cub Cadet 791-182195

Gearbox Screw

$7.49

$

In Stock, Qty 20+

0

26

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

27

Cub Cadet 791-147492

Blade Shield/Shield Mount

$126.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

29

Cub Cadet 791-683304

Shield Mounting Screw

$11.99

$

In Stock, only 1 left!

0

30

Cub Cadet 753-1191

Shield and Blade Assembly

Note: (includes 31)

$64.99

$

In Stock, only 1 left!

0

31

Cub Cadet 791-682061

Blade Assembly

$14.99

$

In Stock, only 1 left!

0

32

Cub Cadet 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

33

Cub Cadet 791-612483

Spool Shaft

$55.99

$

In Stock, only 1 left!

0

34

Cub Cadet 791-683301

Outer Spool and Eyelet Assembly

$48.99

$

In Stock, Qty 6

0

35

Cub Cadet 791-612026

Retainer
(Superseded to 1772)

$6.99

$

In Stock, Qty 13

0

36

Cub Cadet 791-610636B

Spring

$10.99

$

In Stock, only 2 left!

0

37

Cub Cadet 791-147495

Inner Reel

$26.99

$

In Stock, Qty 7

0

38

Cub Cadet 791-180814B

Bump Head Knob Assembly

$21.99

$

In Stock, Qty 20+

0

39

Cub Cadet 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 3 left!

0

40

Cub Cadet 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

Cub Cadet 791-180014B

Blade Retaining Kit

Note: (includes 34 & 43); Not Shown

$12.99

$

In Stock, only 1 left!

0

Cub Cadet 791-613226

Locking Rod Tool

Note: Not Shown

$14.99

$

In Stock, only 1 left!

0

Cub Cadet 791-682075B

Shoulder Harness

Note: Not Shown

$38.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-1224

Reel and Line Assembly

Note: Not Shown

$32.99

$

Usually ships in 3-6 days

0

Cub Cadet 753-1161

Bump Head Assembly
(Superseded to 791-147498)

Note: (includes 33-38); Not Shown

$117.99

$

In Stock, only 1 left!

0
