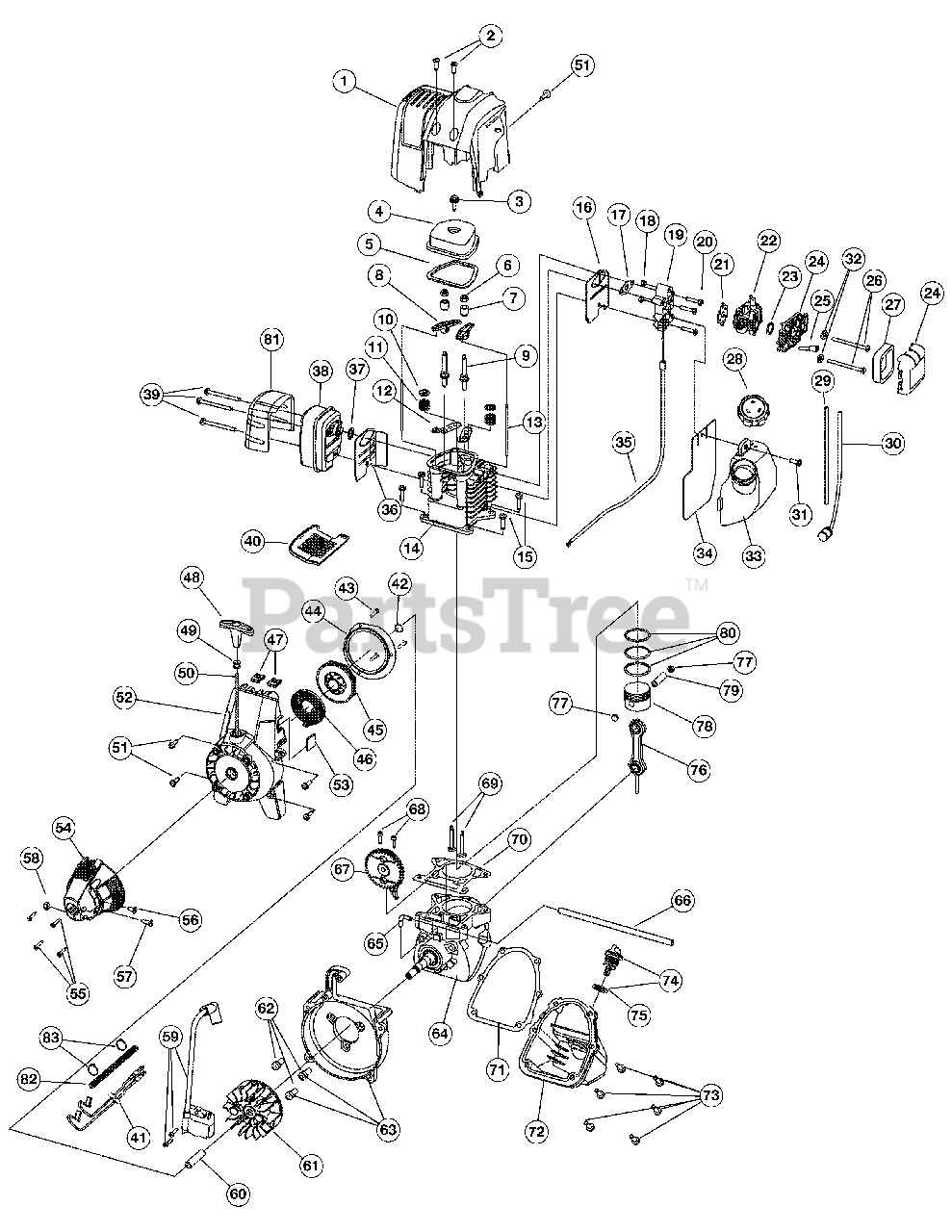

CC 4065 SS (41AD465C910) - Cub Cadet String Trimmer (2008) Engine Parts Diagram

String Trimmer

Engine Parts Diagram

  • Title
1

Cub Cadet 753-04083

Engine Cover

$

$

Not available

2

Cub Cadet 791-181930

Engine Cover Screws

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 791-181025

Valve Cover Screw

$2.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 791-182098

Valve Cover

$10.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182099

Valve Cover Gasket

$9.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 791-182340

Rocker Adjustment Nut

$

$

Not available

7

Cub Cadet 791-182101

Rocker Arm Pivot

$6.99

$

In Stock, only 1 left!

0

8

$

$

Not available

9

Cub Cadet 791-182341

Rocker Arm Stud

$

$

Not available

10

Cub Cadet 791-182103

Valve Spring Retainer

$

$

Not available

11

Cub Cadet 791-181038

Valve Spring

$

$

Not available

12

Cub Cadet 791-182102

Push Rod Guide

$

$

Not available

13

$

$

Not available

14

Cub Cadet 753-04816

Cylinder Assembly (includes 9-12, 15, 69 & 70)

$

$

Not available

15

Cub Cadet 791-181003

Cylinder Screw
(Superseded to 9052-1)

$

$

Not available

16

Cub Cadet 791-182345

Intake Baffle

$4.99

$

In Stock, only 2 left!

0

17

Cub Cadet 791-182749

Carburetor Mount Gasket

$9.49

$

In Stock, only 1 left!

0

18

Cub Cadet 791-181034

Nut
(Superseded to 9072)

$

$

Not available

19

Cub Cadet 791-182347

Carburetor Mount (includes 18)

$19.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 791-182348

Carburetor Mount Screw

$

$

Not available

21

Cub Cadet 791-182732

Carburetor Gasket

$

$

Not available

22

Cub Cadet 753-1225

Carburetor w/Primer

$71.99

$

In Stock, Qty 13

0

23

Cub Cadet 791-181751

O-Ring, Carburetor

$4.49

$

In Stock, Qty 19

0

24

Cub Cadet 791-182350

Air Filter Cover Assembly (includes 27)
(Superseded to 753-04223)

$30.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 791-182097

Breather Tube

$10.99

$

In Stock, only 1 left!

0

26

Cub Cadet 791-181750

Air Filter Mounting Screw

$6.49

$

Usually ships in 3-6 days

0

27

$3.99

$

In Stock, Qty 20+

0

28

$

$

Not available

29

Cub Cadet 791-182352

Fuel Return Line

$7.99

$

In Stock, Qty 19

0

30

Cub Cadet 791-182353

Fuel Pick-Up Line with Filter

$10.99

$

In Stock, Qty 9

0

31

Cub Cadet 753-04510

Screw
(Superseded to 710-04185)

$

$

Not available

$4.99

$

In Stock, Qty 5

0

33

Cub Cadet 753-04918

Fuel Tank Assembly (includes 28-30)

$

$

Not available

34

Cub Cadet 791-182356

Fuel Tank Shield

$

$

Not available

35

Cub Cadet 753-1231

Throttle Cable

$17.99

$

In Stock, only 1 left!

0

36

Cub Cadet 791-182358

Muffler Baffle

$

$

Not available

37

Cub Cadet 791-181048

Muffler Gasket
(Superseded to 9094-1)

$4.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 791-182359

Muffler (includes 37)

$

$

Not available

39

Cub Cadet 791-182361

Muffler Mounting Screw

$

$

Not available

40

Cub Cadet 753-04092

Muffler Cover

$

$

Not available

41

Cub Cadet 791-182804

Switch Wire Assembly

$

$

Not available

$10.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 753-1202

Plate Screw
(Superseded to 1755)

$3.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 753-05074

Pressure Plate Assembly (includes 43)

$

$

Not available

45

Cub Cadet 753-05072

Recoil Pulley Assembly (includes 42 & 50)

$41.99

$

In Stock, only 3 left!

0

46

Cub Cadet 753-04286

Recoil Spring

$26.99

$

In Stock, Qty 5

0

47

$5.99

$

In Stock, only 1 left!

0

48

Cub Cadet 791-181079

Pull Handle
(Superseded to 631-04164B)

$3.99

$

In Stock, Qty 11

0

49

$10.99

$

In Stock, only 2 left!

0

$

$

Not available

51

Cub Cadet 791-181020

Housing Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

52

Cub Cadet 753-05298

Starter Housing Assembly (includes 42-51)

$

$

Not available

53

Cub Cadet 791-182537

Wire Grommet

$7.99

$

In Stock, only 1 left!

0

54

Cub Cadet 753-05076

Cover Assembly (includes 55-58)

$

$

Not available

55

Cub Cadet 791-181345

Cover Screw

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 791-182519

Anti-Rotation Screw

$4.99

$

In Stock, only 4 left!

0

57

Cub Cadet 753-05077

Screw
(Superseded to 792-10662)

$3.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 791-180217

Nut
(Superseded to 712-0161)

$4.49

$

In Stock, Qty 20+

0

59

Cub Cadet 791-182725

Ignition Module with Screws

$

$

Not available

60

Cub Cadet 791-610303

Square Nut Drive

$

$

Not available

61

Cub Cadet 791-182736

Flywheel
(Superseded to 753-05240)

$76.99

$

In Stock, only 2 left!

0

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 791-182743

Shroud Assembly (includes 62)

$

$

Not available

64

Cub Cadet 753-05160

Crankcase Assembly (includes 65 & 66)

$

$

Not available

65

$

$

Not available

66

Cub Cadet 791-182379

Breather Hose

$4.99

$

Usually ships in 3-6 days

0

67

Cub Cadet 753-04919

Cam Bracket Assembly

$36.99

$

Usually ships in 3-6 days

0

68

Cub Cadet 791-181012

Cam Bracket Screw

$

$

Not available

69

Cub Cadet 791-181040

Valves, Intake and Exhaust

$

$

Not available

70

Cub Cadet 791-182374

Cylinder Gasket

$

$

Not available

71

Cub Cadet 791-181018

Oil Pan Gasket

$

$

Not available

72

Cub Cadet 791-182377

Oil Pan (includes 71 & 73)

$

$

Not available

73

Cub Cadet 791-181020

Oil Pan Screw
(Superseded to 9054)

$4.49

$

In Stock, only 4 left!

0

74

Cub Cadet 791-182378

Dipstick Assembly (includes 75)

$10.99

$

Usually ships in 3-6 days

0

$4.99

$

In Stock, Qty 9

0

76

Cub Cadet 791-181009

Connecting Rod

$

$

Not available

77

Cub Cadet 791-181008

Wrist Pin Button

$

$

Not available

78

Cub Cadet 753-04878

Piston (includes 80)

$

$

Not available

79

$

$

Not available

80

Cub Cadet 753-04801

Piston Ring Set

$

$

Not available

81

Cub Cadet 791-182360

Heat Shield

$

$

Not available

82

Cub Cadet 753-04098

Wire Lead Cover

$

$

Not available

83

Cub Cadet 791-160428

Cable Clamp

$

$

Not available

Cub Cadet 791-180890

Spark Arrestor

Note: Not shown

$

$

Not available

Cub Cadet 791-180852B

Spark Plug
(Superseded to 794-00082)

Note: Not shown

$7.49

$

In Stock, Qty 5

0

Cub Cadet 753-05299

Short Block Assembly (includes 3-15, 64-80 & Spark Plug)

Note: Not shown

$

$

Not available
